Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

HINT:
- Before performing verification listed in the table, check the fuse and relay.
- Methods used to verify the cause of the problem are listed in order of probability in the verification column.

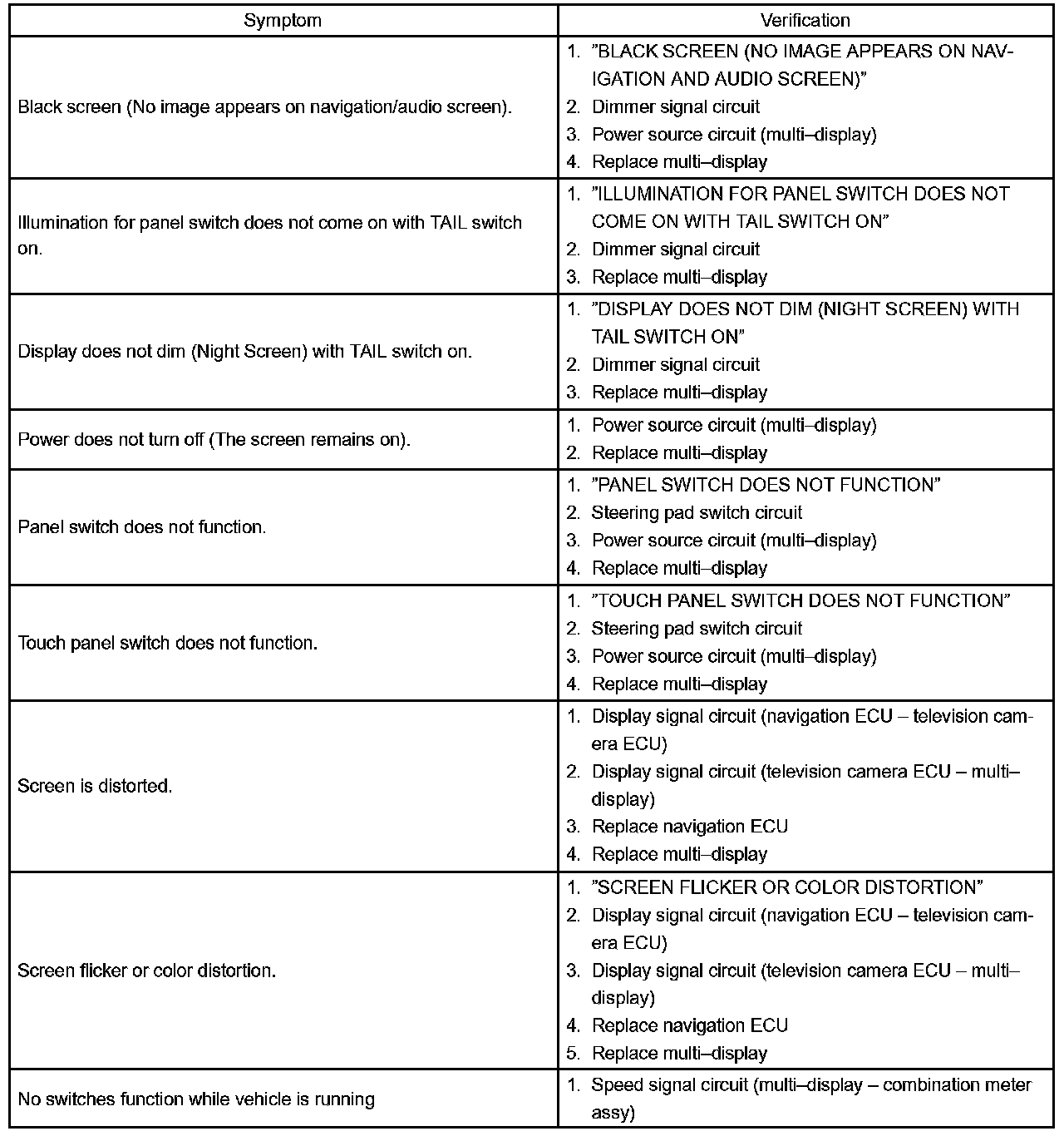

Problem Symptoms Table - Display Function:

Display function

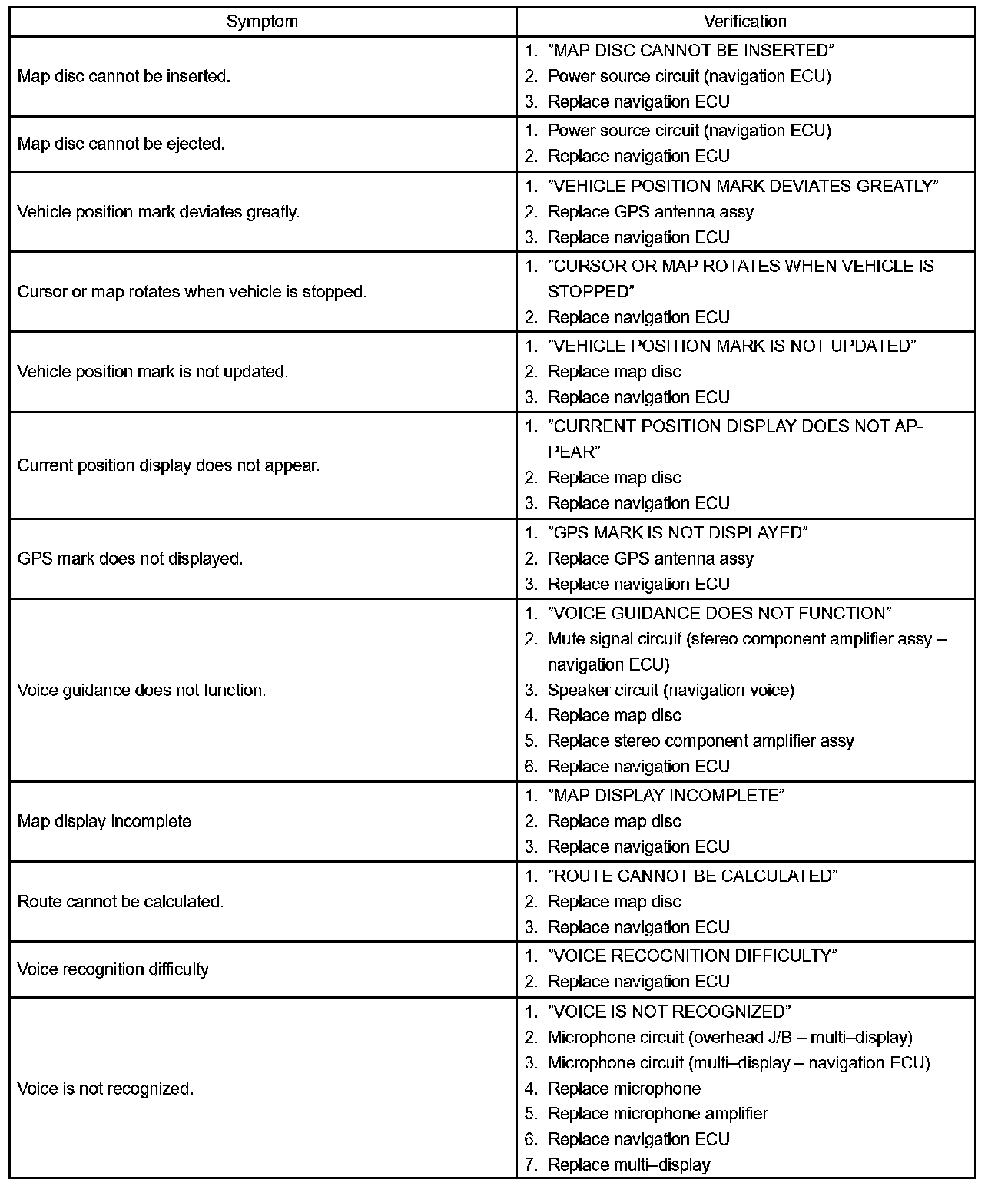

Problem Symptoms Table - Navigation Function:

Navigation function

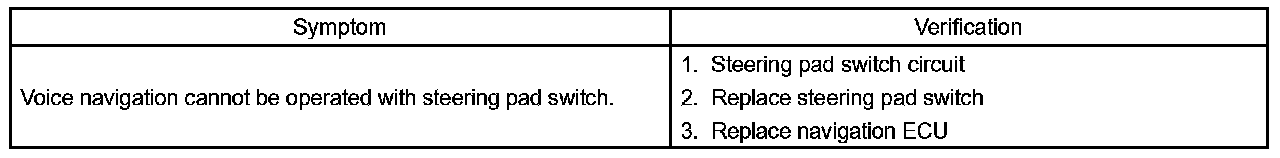

Problem Symptoms Table - Steering Pad Function:

Steering pad function

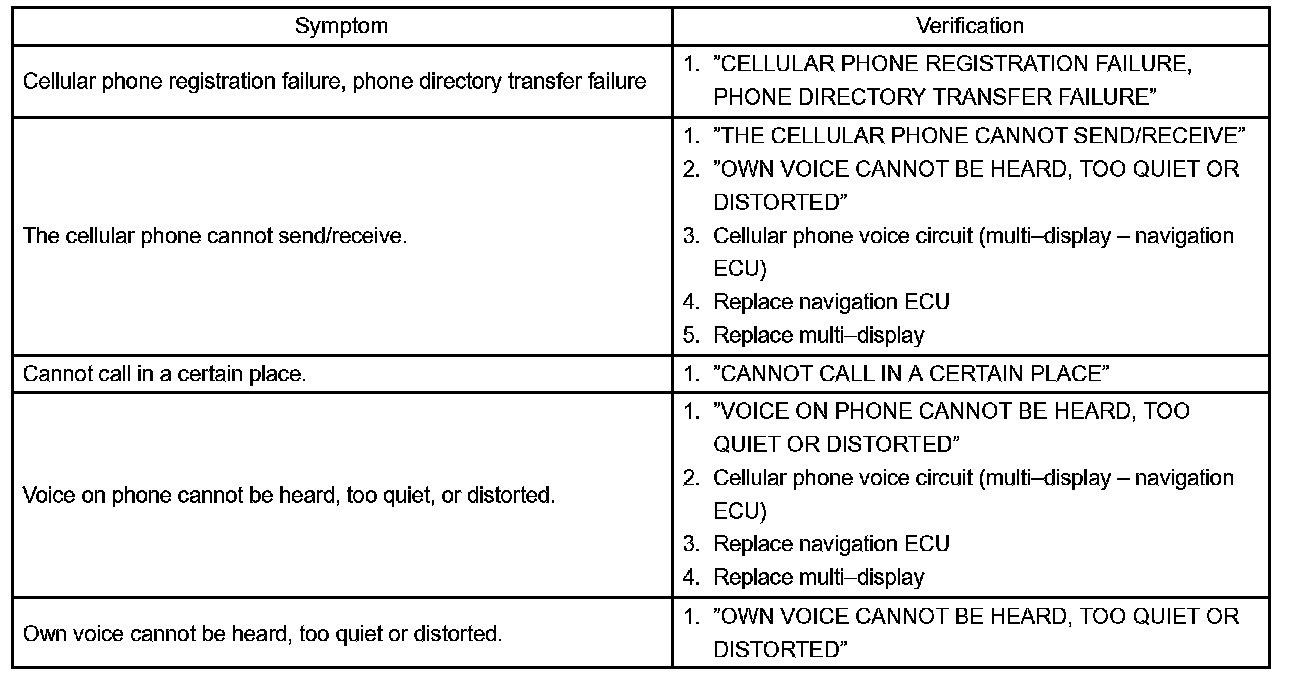

Problem Symptoms Table - Blue Tooth Function:

Bluetooth function
