Power Mirror Position Switch/Sensor: Testing and Inspection

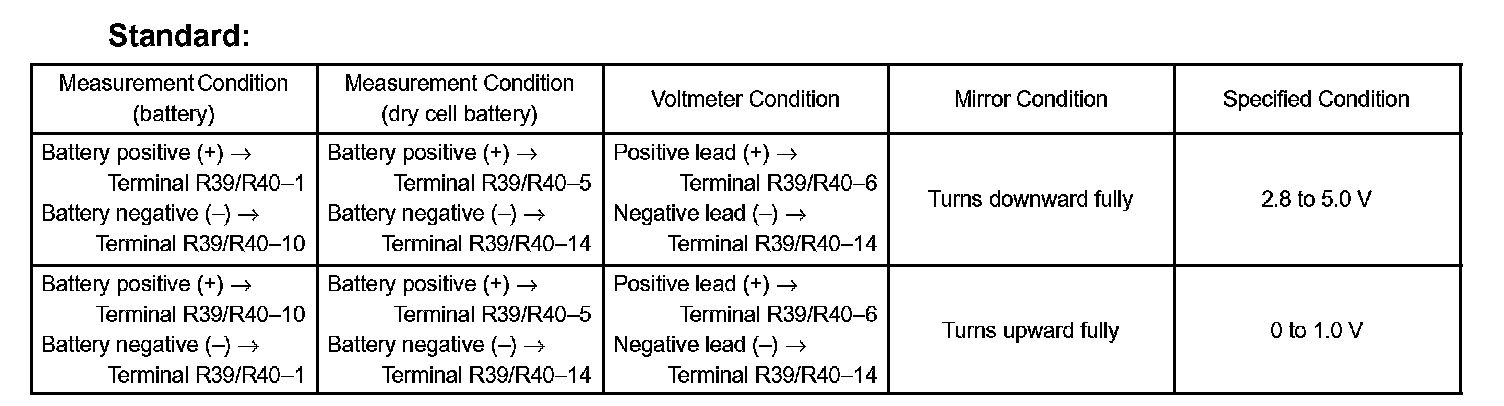

INSPECT MIRROR POSITION SENSOR
a. Check the voltage.

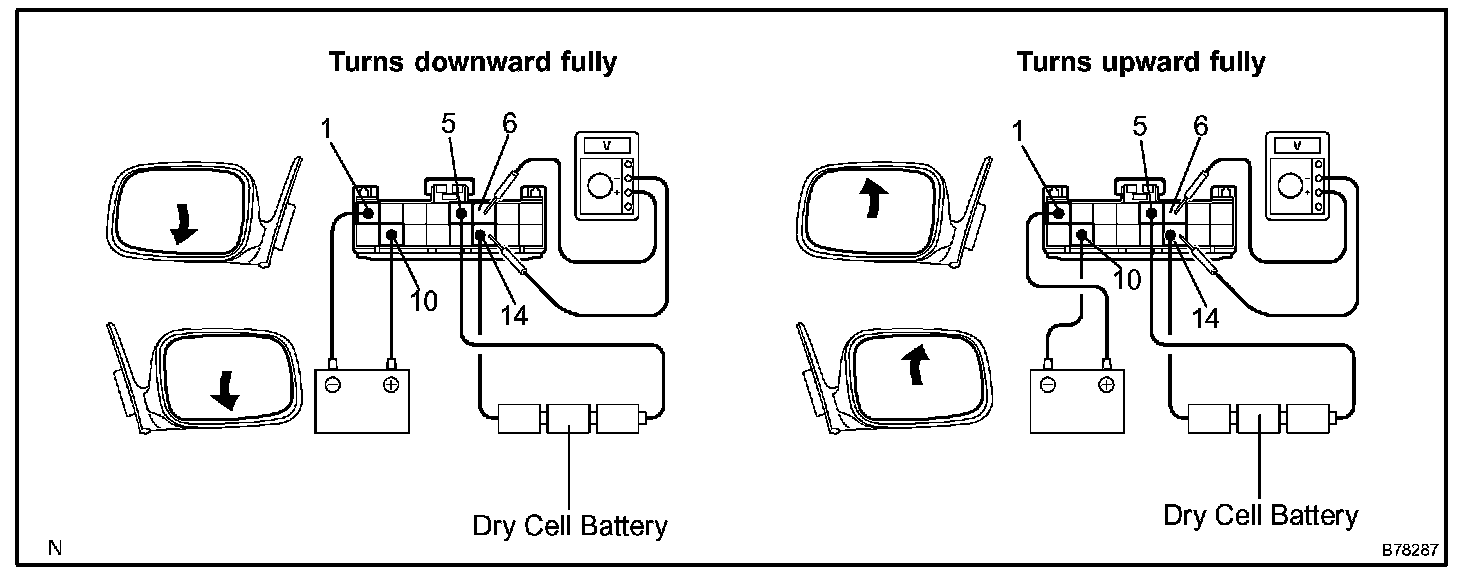

1. Apply voltage to the terminals with a battery and a dry cell battery, as shown in the table.
2. Measure the voltage while the mirror moves between the fully turned downward position and fully turned upward position.
If the result is not as specified, replace the mirror assy.




3. Measure the voltage while the mirror moves between the fully turned to the left position and fully turned to the right position.

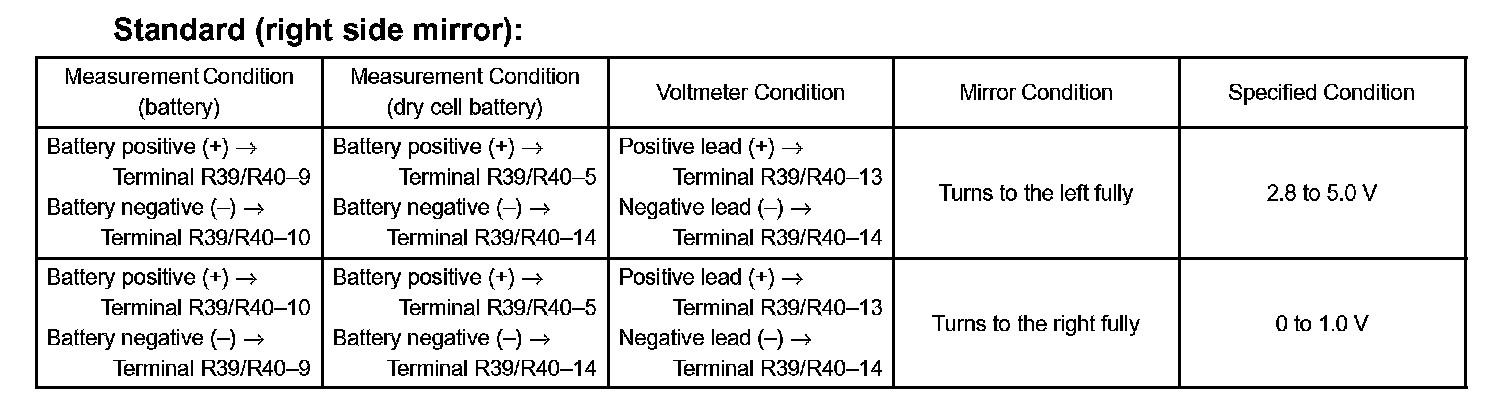

Standard (right side mirror):
If the result is not as specified, replace the mirror assy.

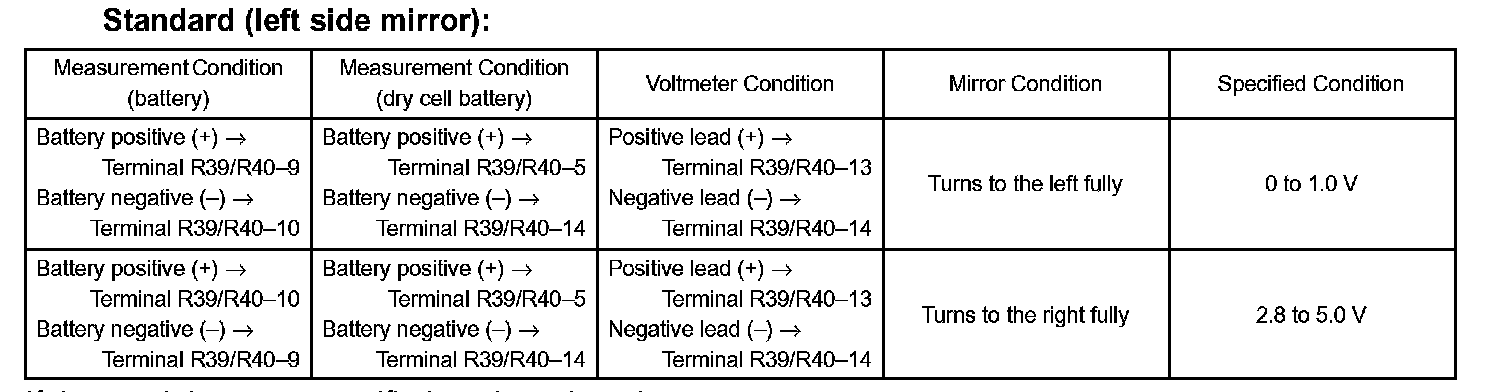

Standard (left side mirror):
If the result is not as specified, replace the mirror assy.
