Dynamic Radar Cruise Control System

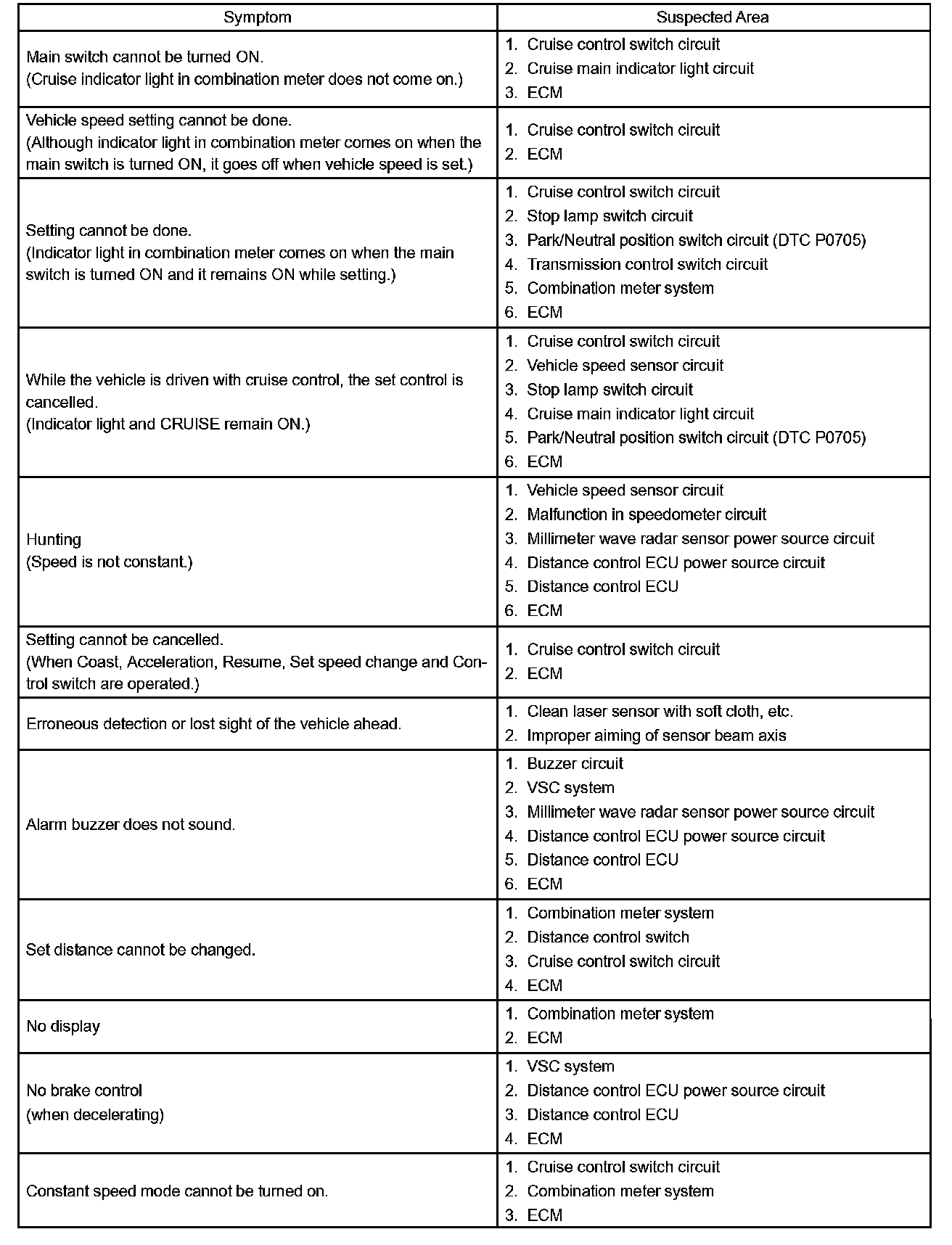

PROBLEM SYMPTOMS TABLEProblem Symptoms Table Part 1:

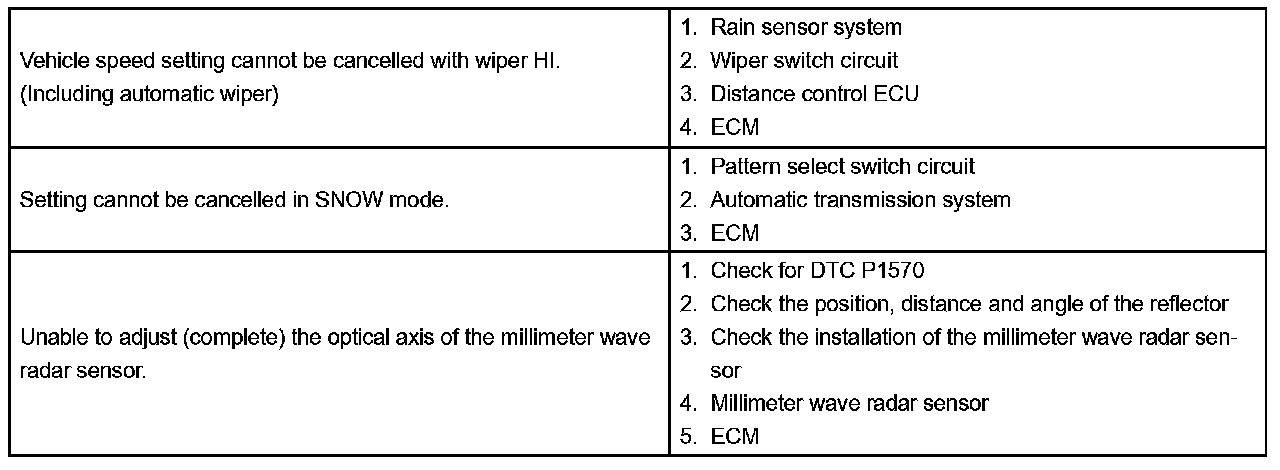

Problem Symptoms Table Part 2:
If a normal system code is displayed during the DTC check but the problem still occurs, check the suspected areas for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.
HINT: Inspect the "Fuse" and "Relay" before confirming the suspected areas as shown in the table. Inspect each suspected area for the corresponding symptom in numerical order.
