Water Valve Control Servomotor Circuit
CIRCUIT DESCRIPTIONThis circuit controls the amount of the coolant flowing to the
heater core by a signal from the A/C amplifier, and adjusts the temperature at the air outlets.

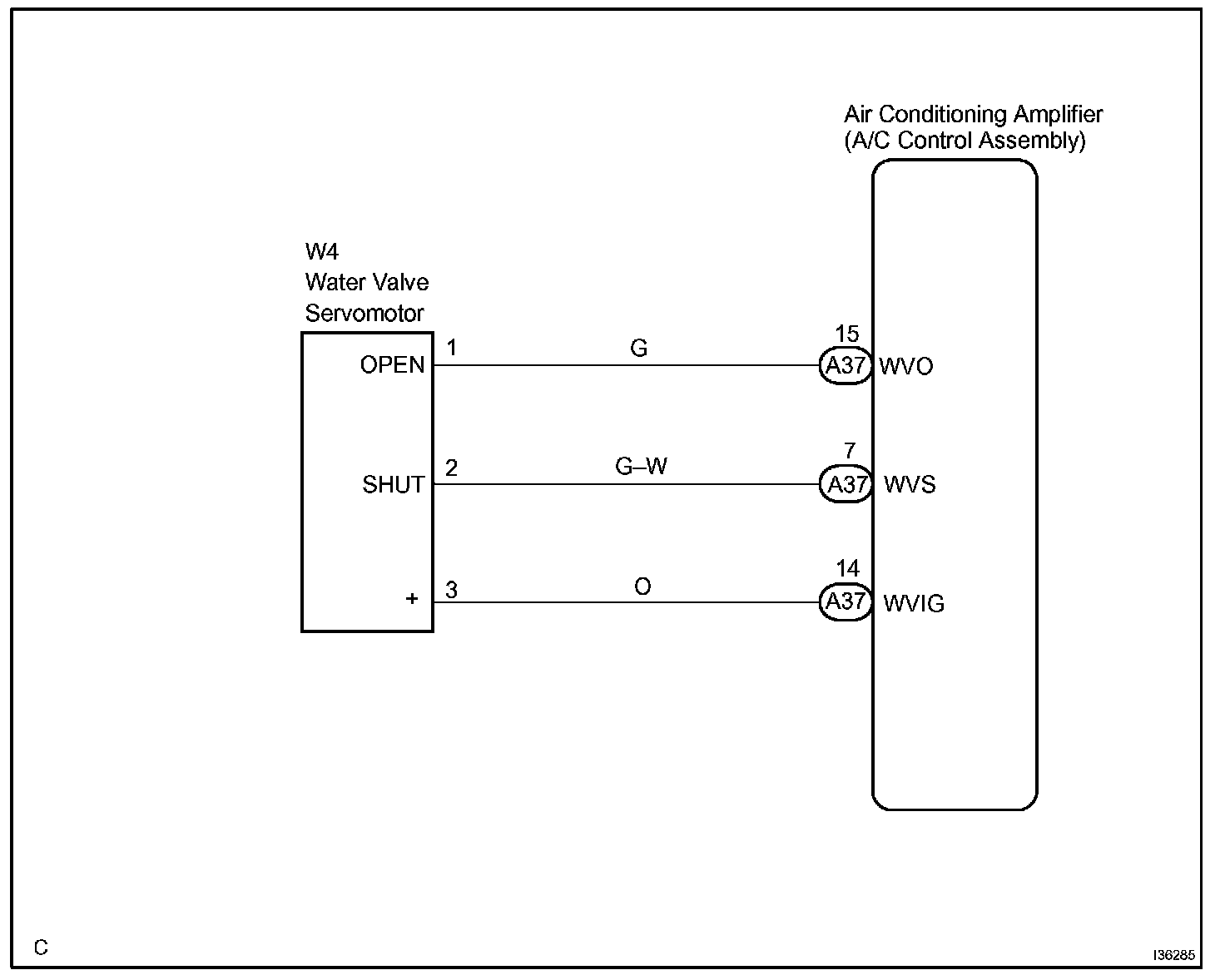

Wiring Diagram:

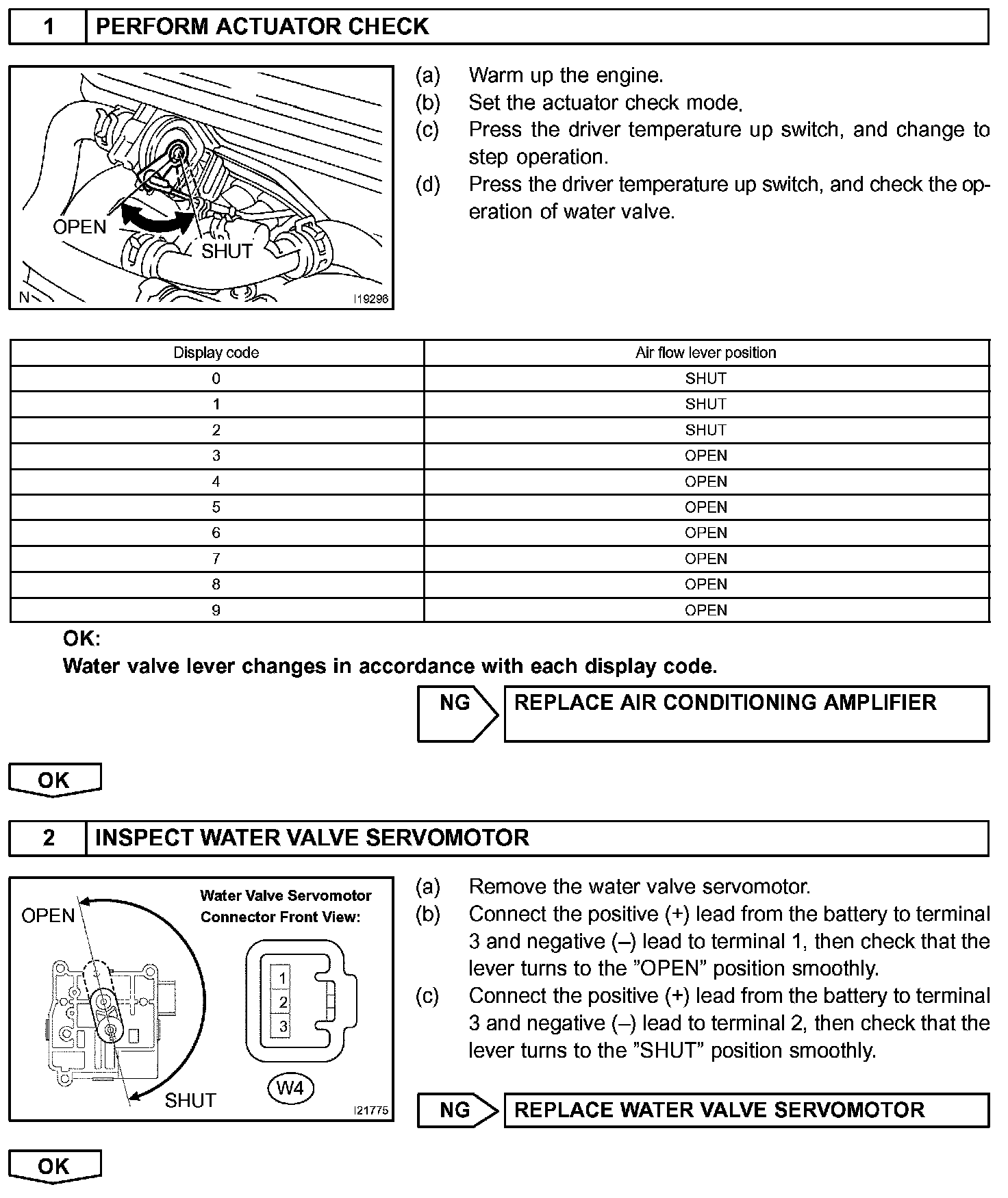

Step 1 - 2:

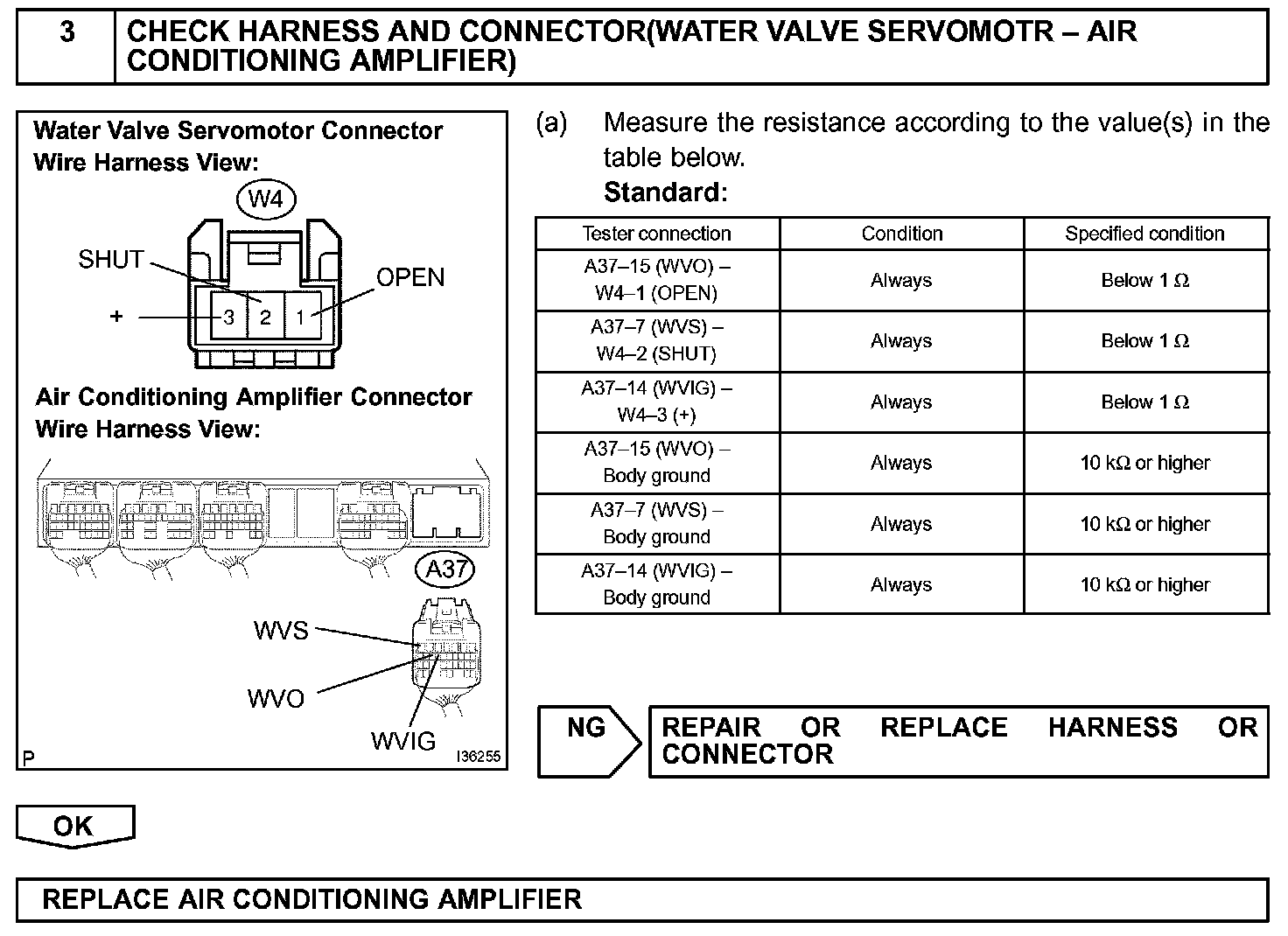

Step 3:
INSPECTION PROCEDURE
