Active Test

ACTIVE TEST

HINT: Perform the ACTIVE TEST using the hand-held tester to operate the ABS warning lamp and tire pressure warning indicator. Performing the ACTIVE TEST is one of the methods to shorten labor time. It is possible to display the DATA LIST during the ACTIVE TEST.

a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch to the ON position.

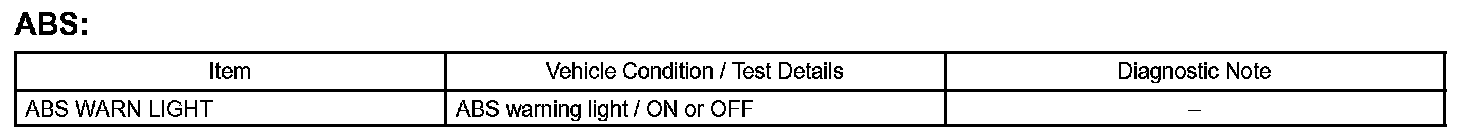

c. Following the display on the tester, perform the "ACTIVE TEST".
