Ignition Timing: Testing and Inspection
7.
INSPECT
IGNITION TIMING a.
Warm up the engine.
b.
Check the
ignition timing.
1.

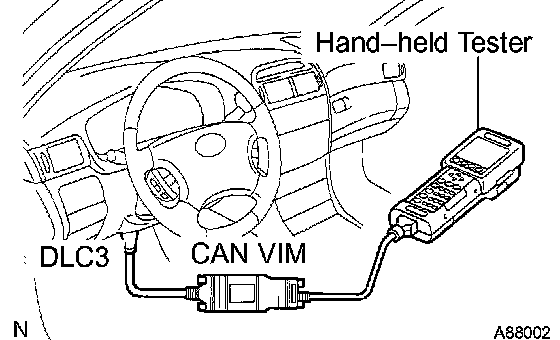

Connect the hand-held tester (with CAN VIM) to the DLC3.
2.
Enter DATA LIST MODE on the hand-held tester.
Ignition timing 8 to 12° BTDC @ idle HINT: Please refer to the hand-held tester operator's manual for help on selecting the DATA LIST
