Seat Belt Warning System
TERMINALS OF ECU 1.
CHECK DRIVER SIDE J/B (DRIVER SIDE J/B ECU)
a.

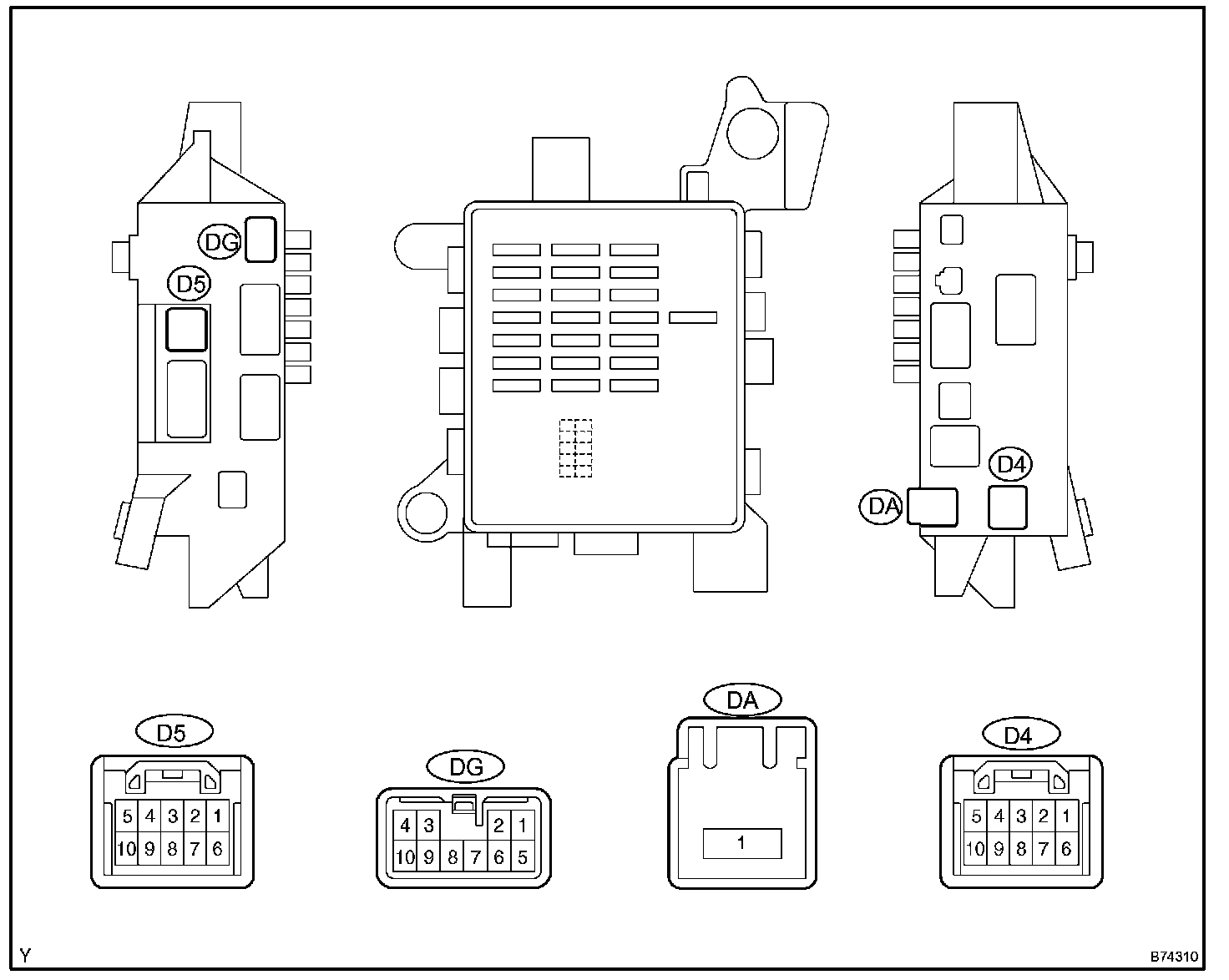

Disconnect the DA, DG J/B and D5 ECU connectors.
b.

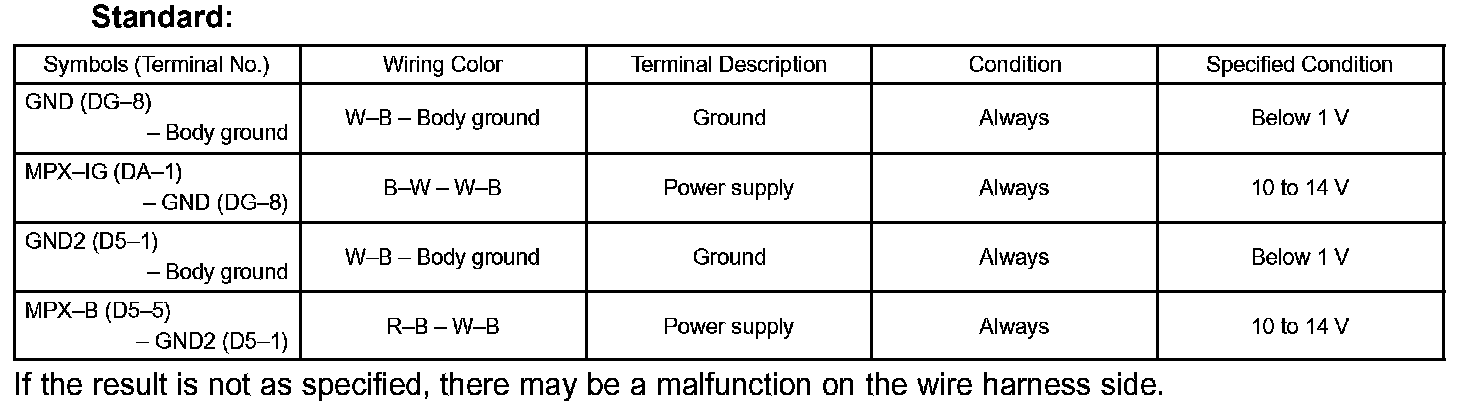

Measure the voltage of the wire harness side connectors.
c.
Reconnect the DA, DG J/B and D5 ECU connectors.
d.

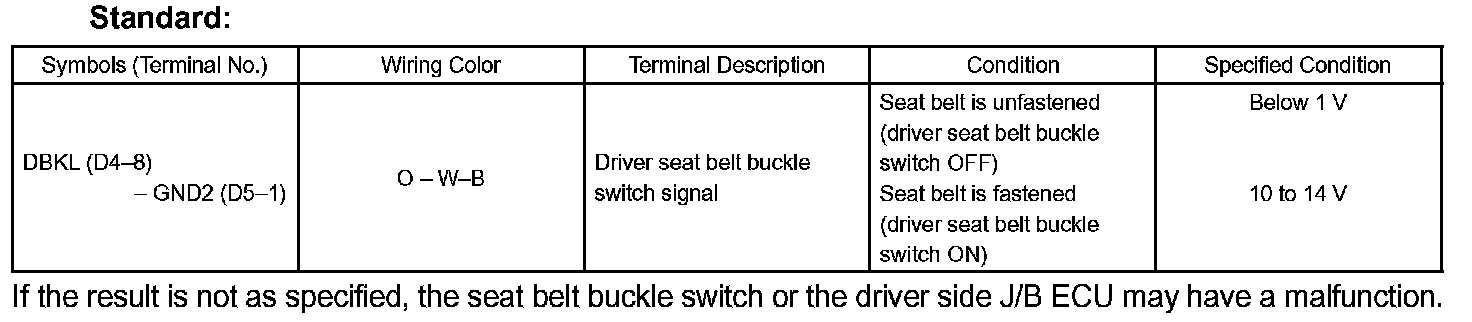

Measure the voltage of the connectors.
