Pinout Values and Diagnostic Parameters
TERMINALS OF ECUCHECK A/C CONTROL ASSEMBLY (A/C ECU)

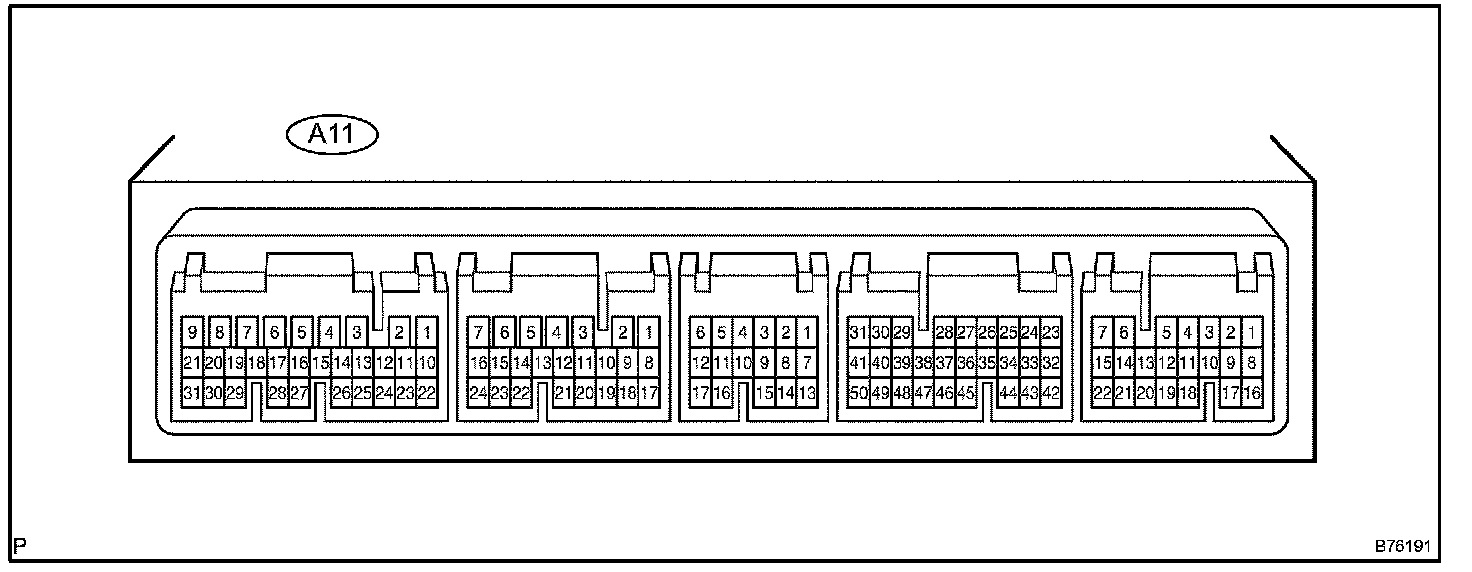

Terminals Of ECU / Pinouts - Check A/C Control Assy (A/C ECU):
a.
Disconnect the A11 ECU connector.
b.

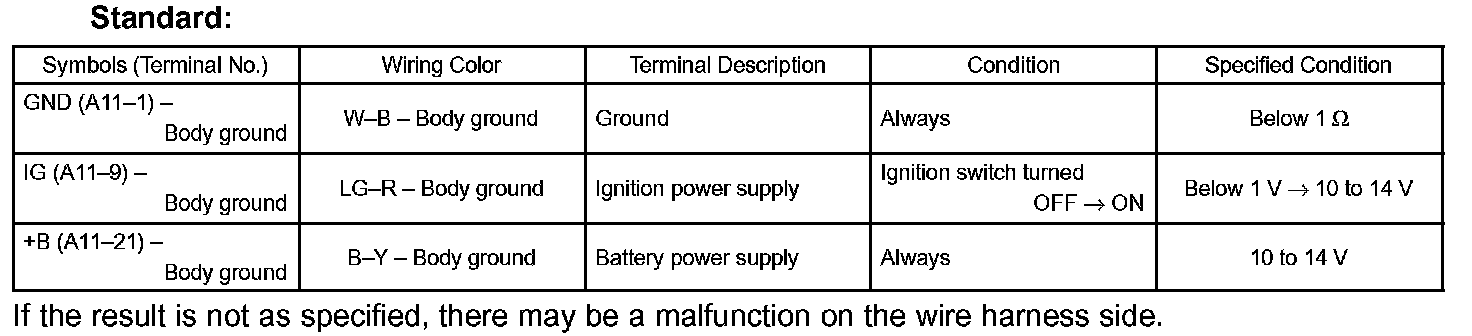

Measure the voltage and resistance of the wire harness side connector.
c.
Reconnect the A11 ECU connector.
d.

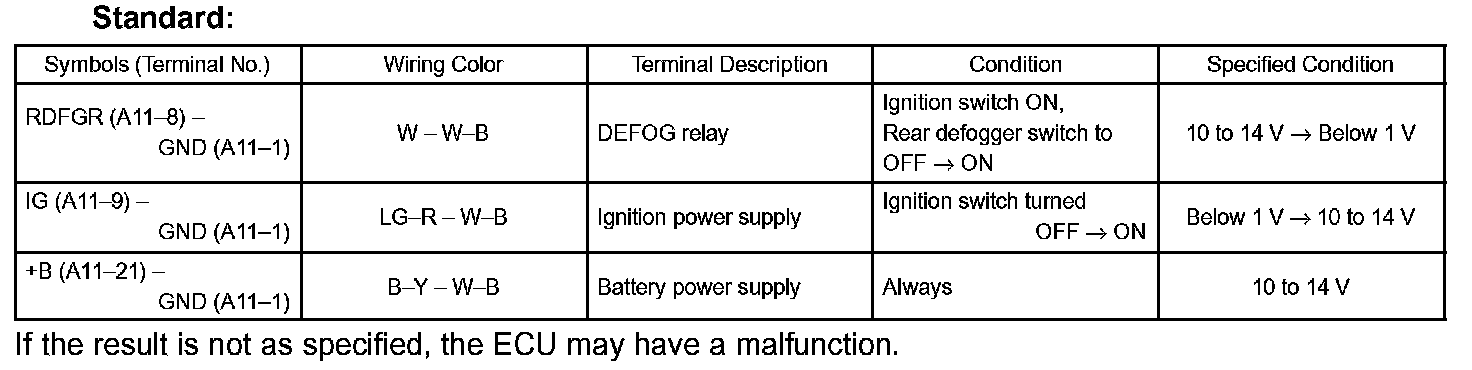

Measure the voltage of the connector.
