Sound Bad, Driver Side Front, All Audio Mode (Nav Voice Normal)

SOUND QUALITY IS BAD ONLY DRIVER SIDE FRONT SQUAWKER AND FRONT TWEETER IN ALL AUDIO MODE (NAVIGATION VOICE IS NORMAL)

Wiring Diagram:

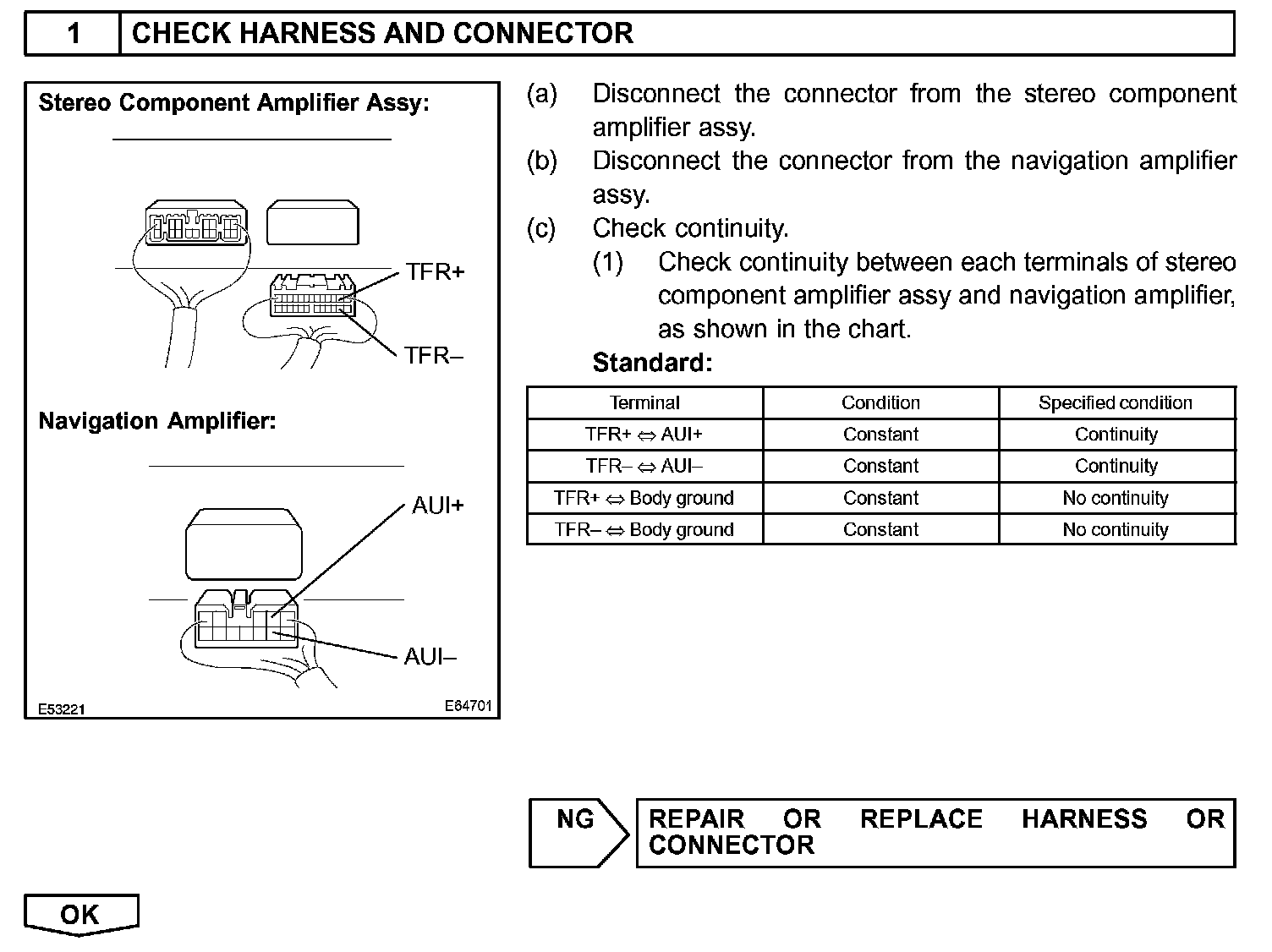

Step 1:

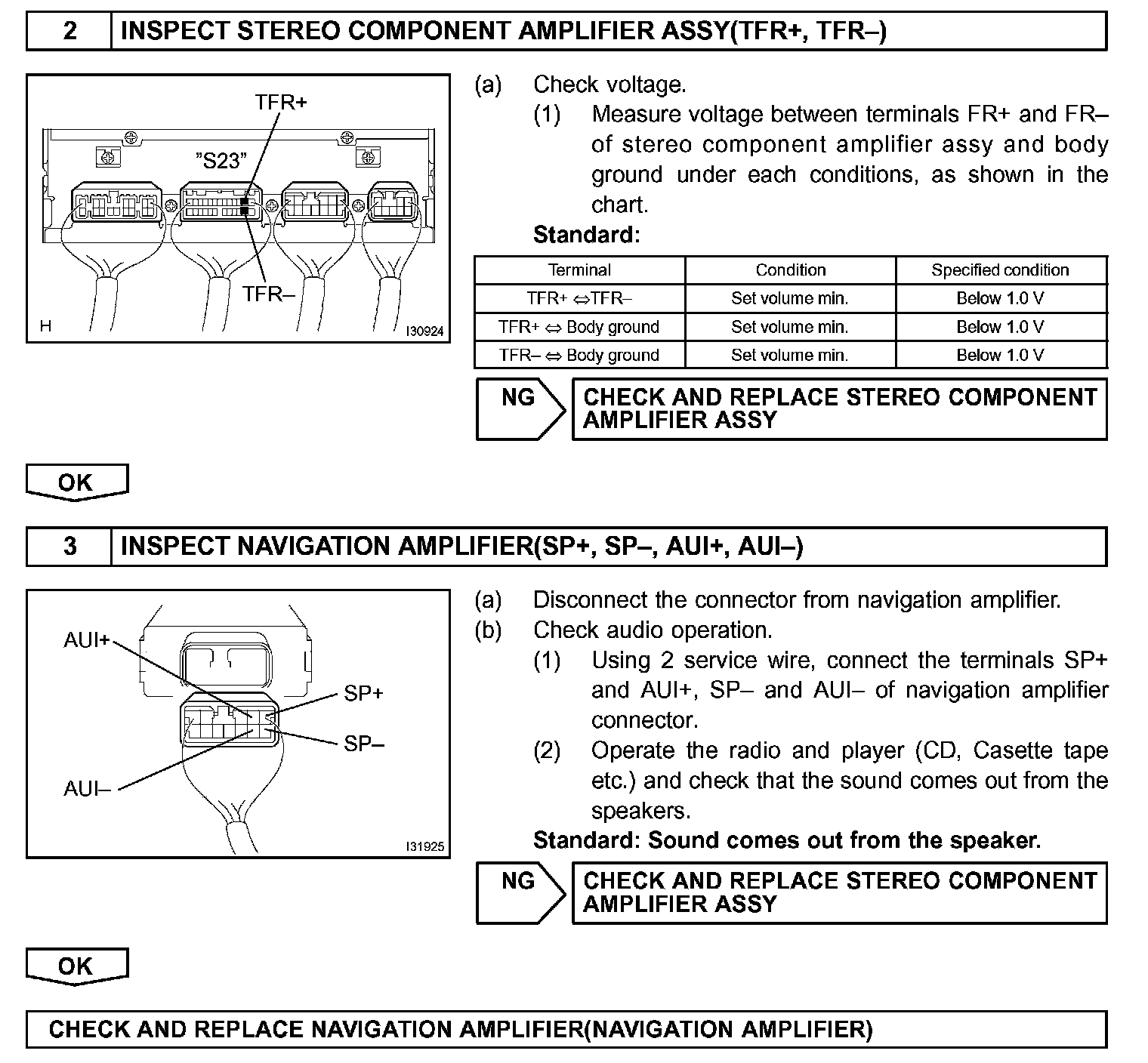

Step 2 - 3:




INSPECTION PROCEDURE
