Steering Pad Switch RH












STEERING PAD SWITCH RH

REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. PRECAUTION
Refer to Air Bag Systems; Service Precautions.
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3. REMOVE STEERING WHEEL COVER LOWER NO.3
4. REMOVE STEERING WHEEL COVER LOWER NO.2
5. REMOVE HORN BUTTON ASSEMBLY
6. REMOVE STEERING PAD SWITCH RH




a. Disconnect the connector.

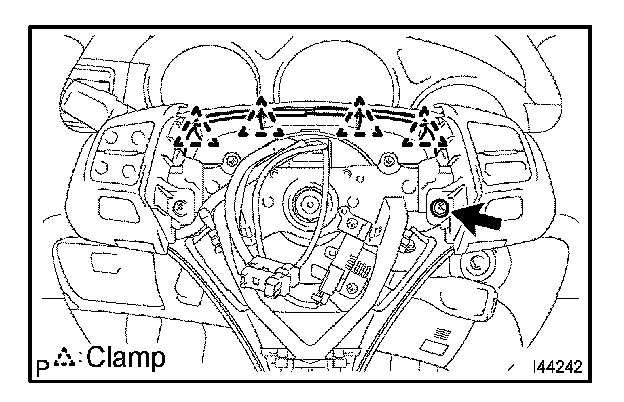

b. Remove the 4 clamps.
c. Remove the screw.

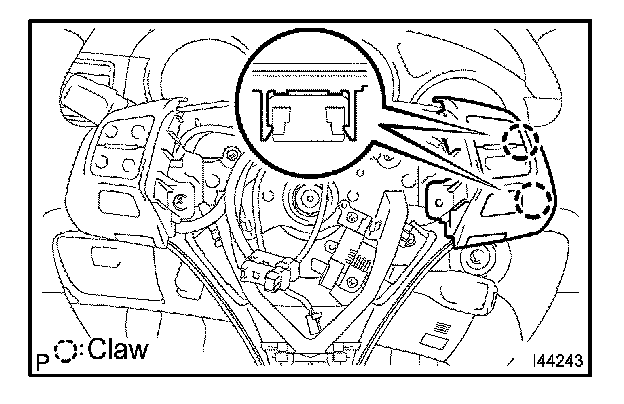

d. Release the 2 claws and remove the steering pad switch RH.

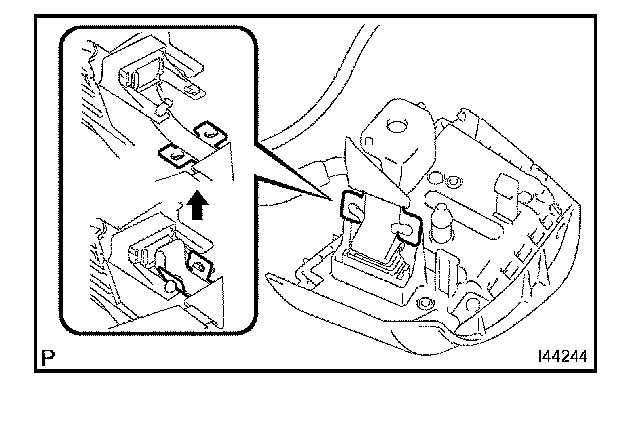

e. Release the tab of steering pad switch cable from steering pad switch RH as shown in the illustration.

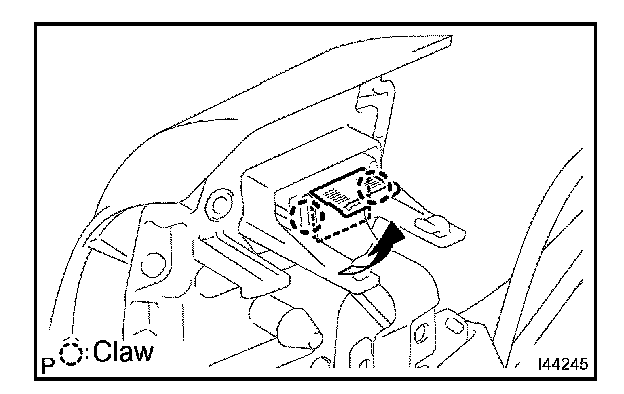

f. Disengage the 2 claws as shown in the illustration and open the latch on the top of the connector.

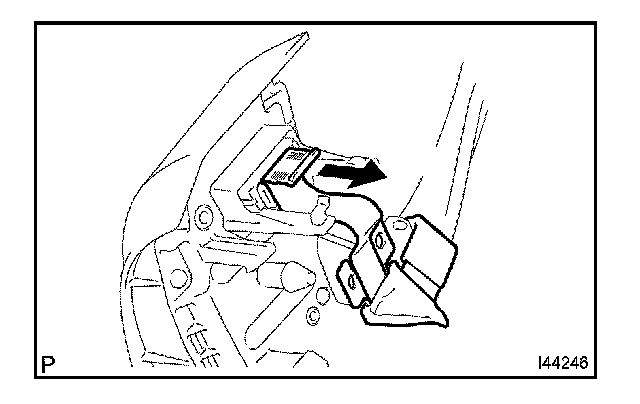

g. Pull out the connector while pinching the latch with fingers and disconnect the steering pad switch cable from the steering pad switch RH.

7. INSTALL HORN BUTTON ASSEMBLY
8. INSTALL STEERING WHEEL COVER LOWER NO.2
9. INSTALL STEERING WHEEL COVER LOWER NO.3
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
11. INSPECT SRS WARNING LIGHT
