Check CAN Bus Lines for Short Circuit

CHECK CAN BUS LINES FOR SHORT CIRCUIT

CIRCUIT DESCRIPTION

Circuit Description:




The CAN bus lines are considered to be shorted when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 .

Wiring Diagram:

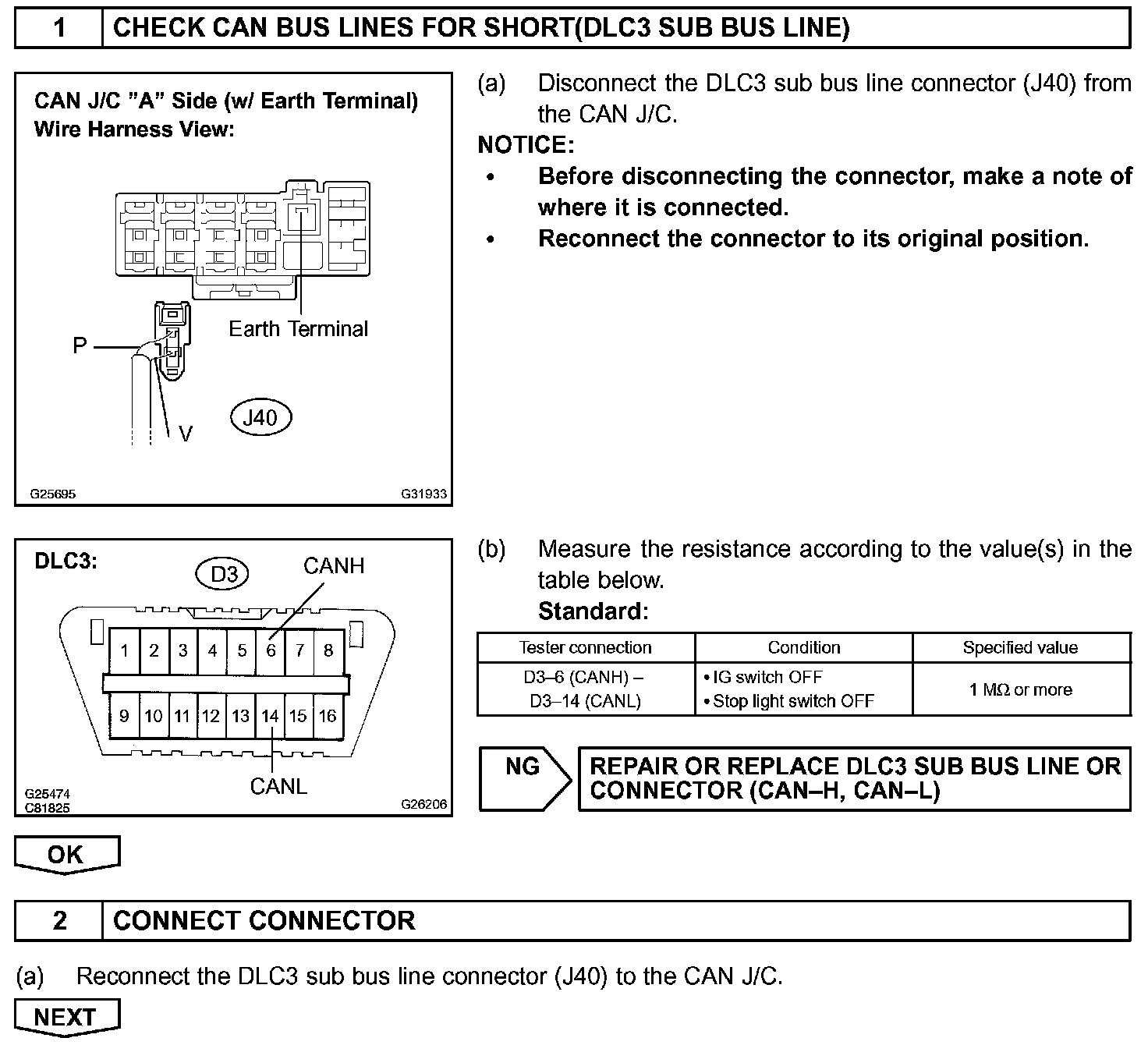

Step 1 - 2:

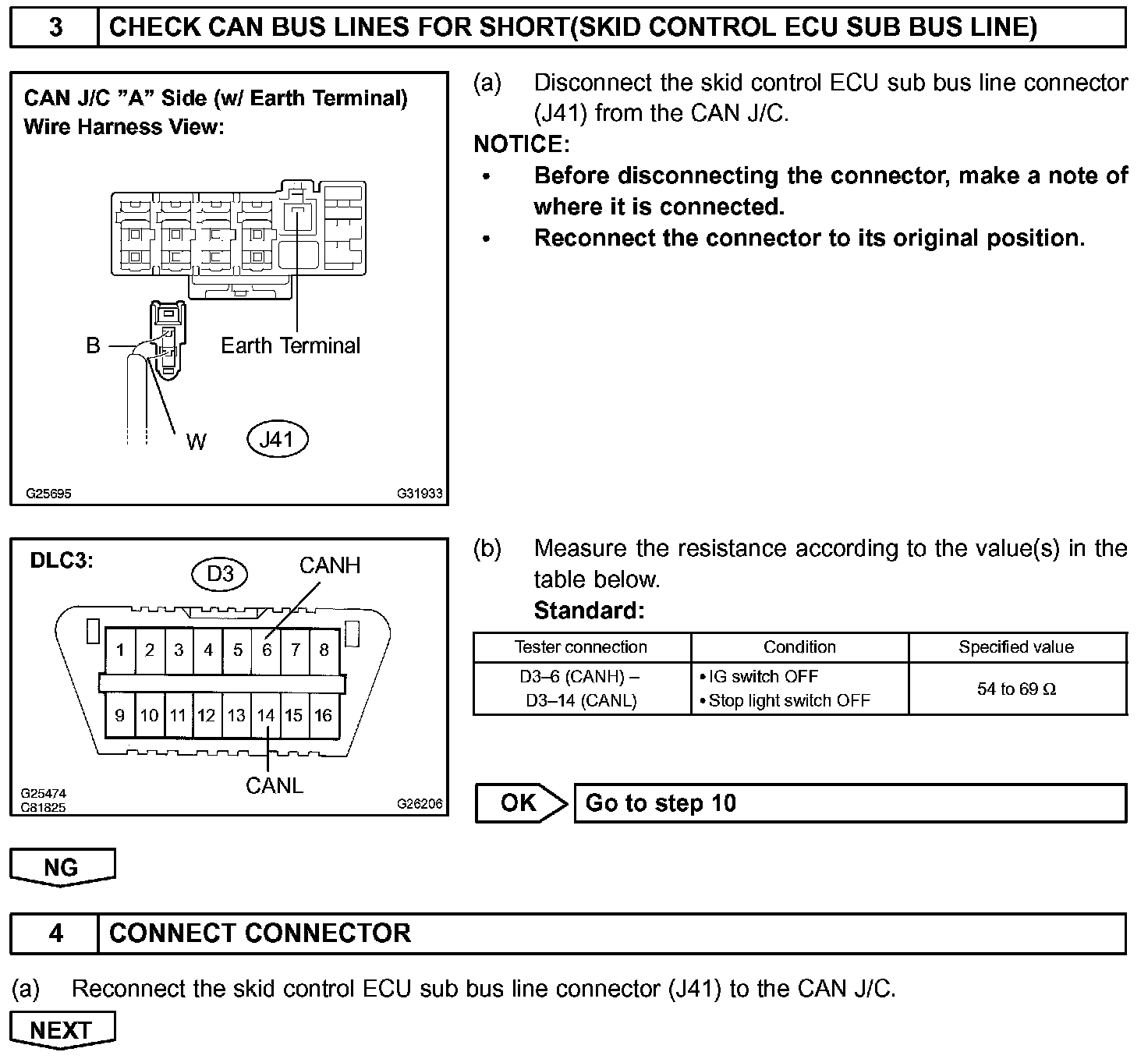

Step 3 - 4:

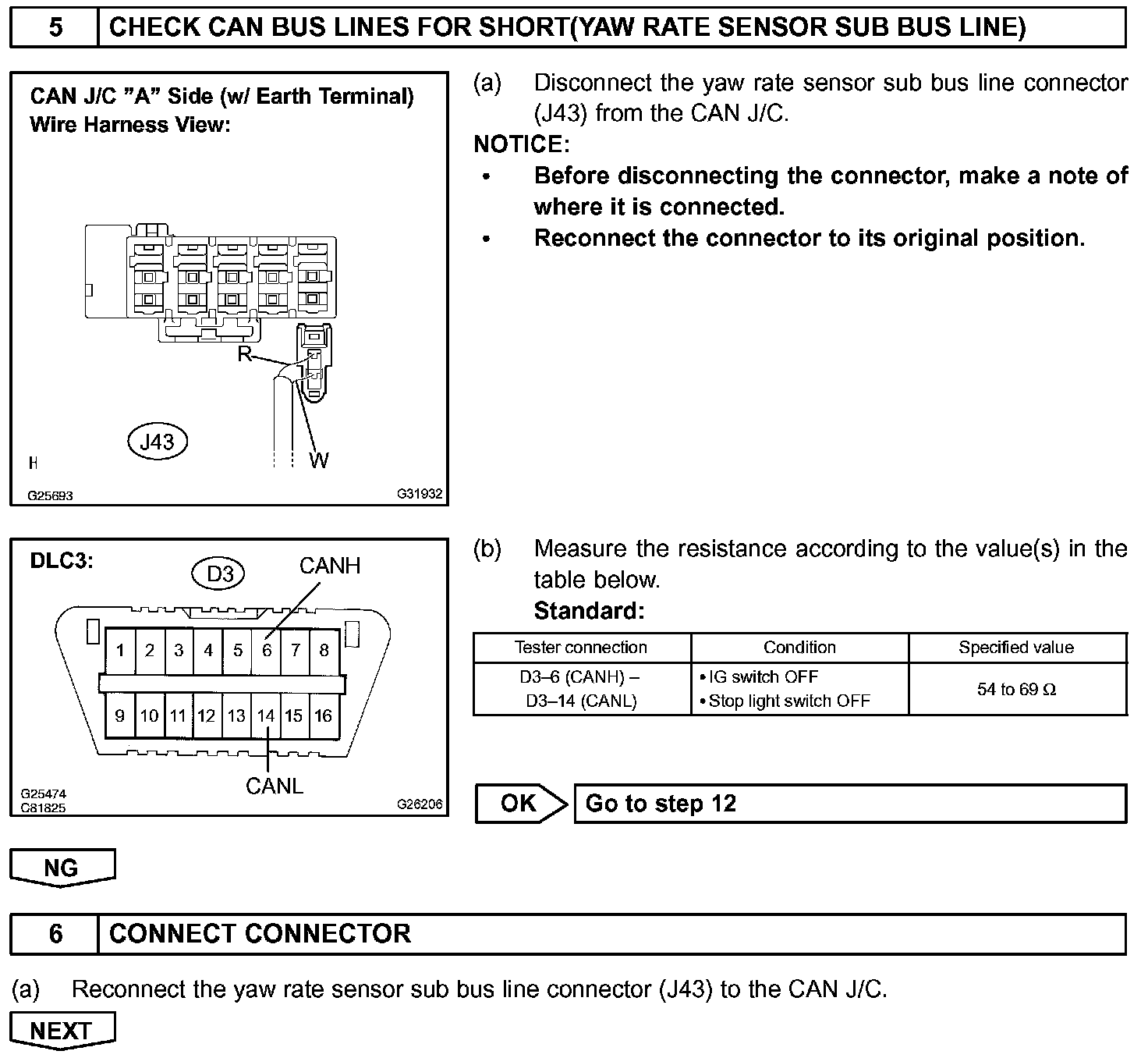

Step 5 - 6:

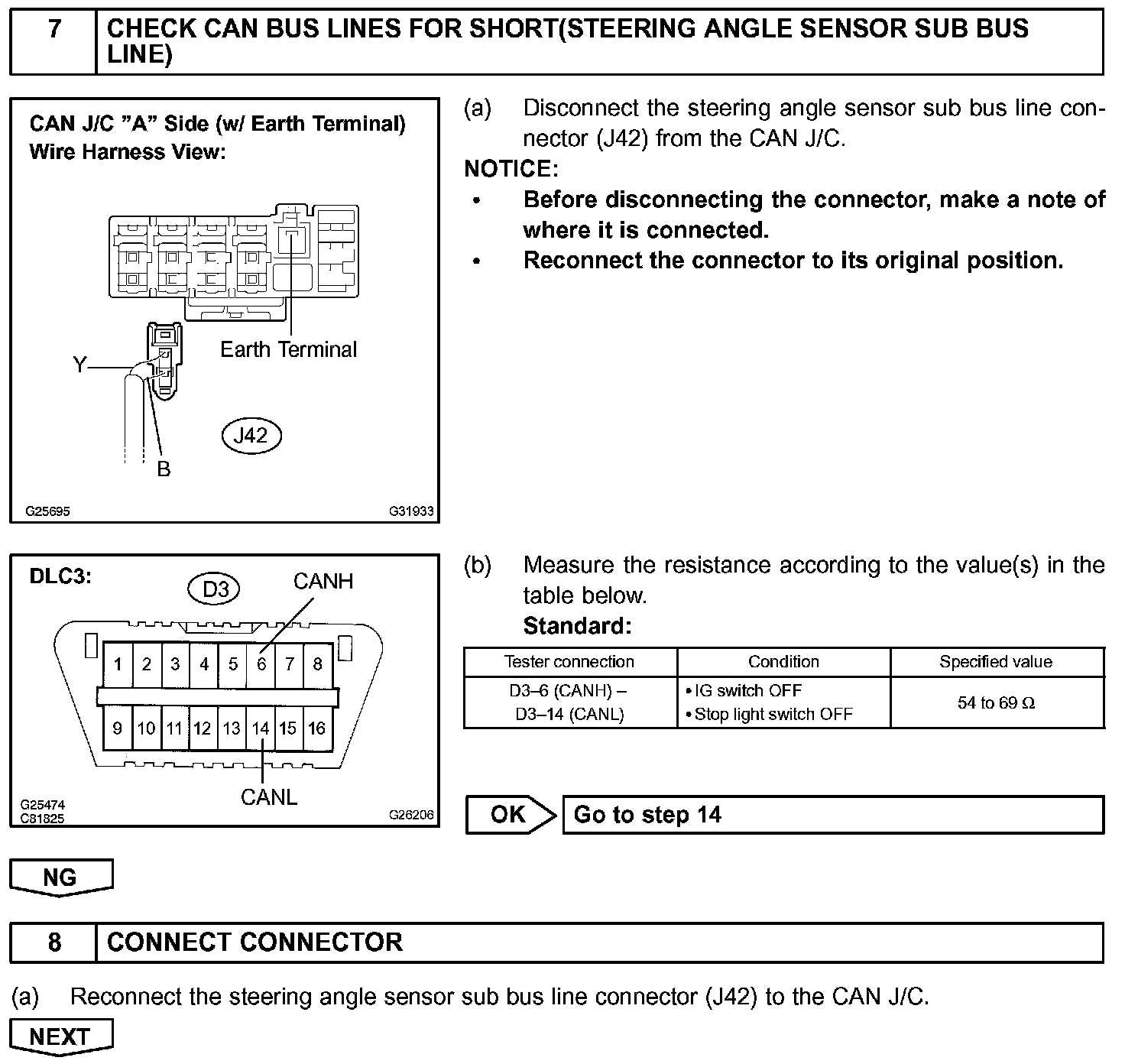

Step 7 - 8:

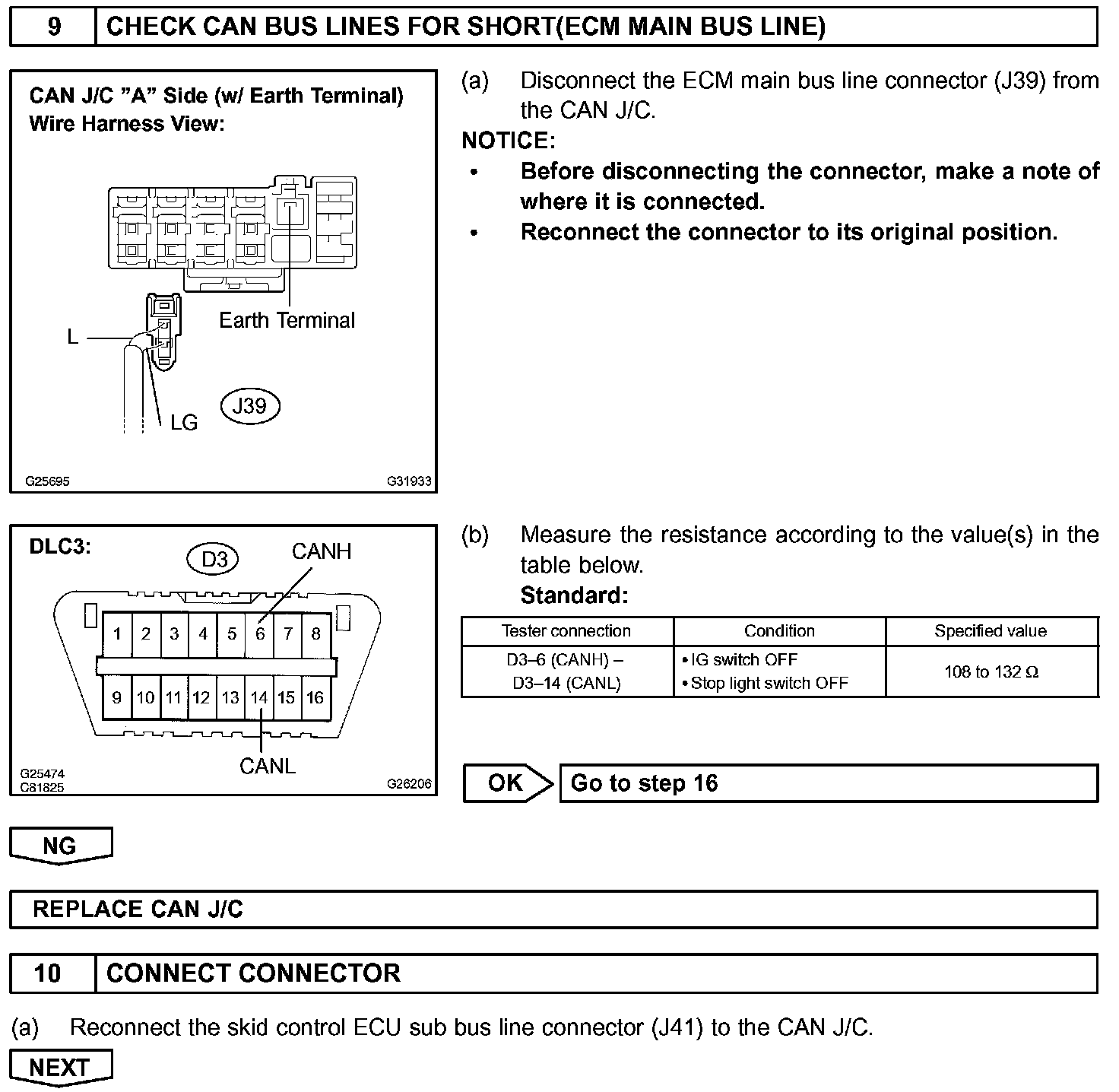

Step 9 - 10:

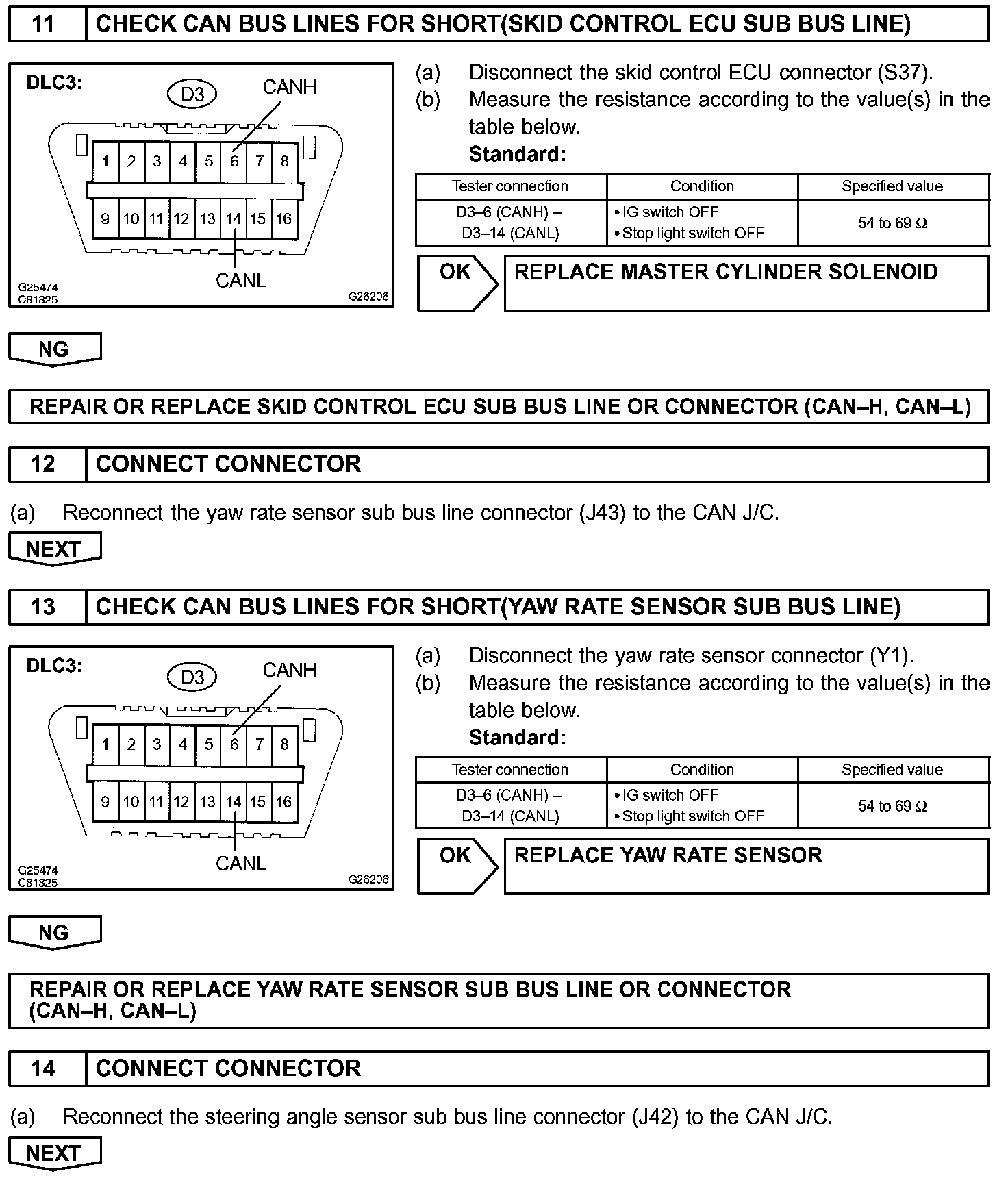

Step 11 - 14:

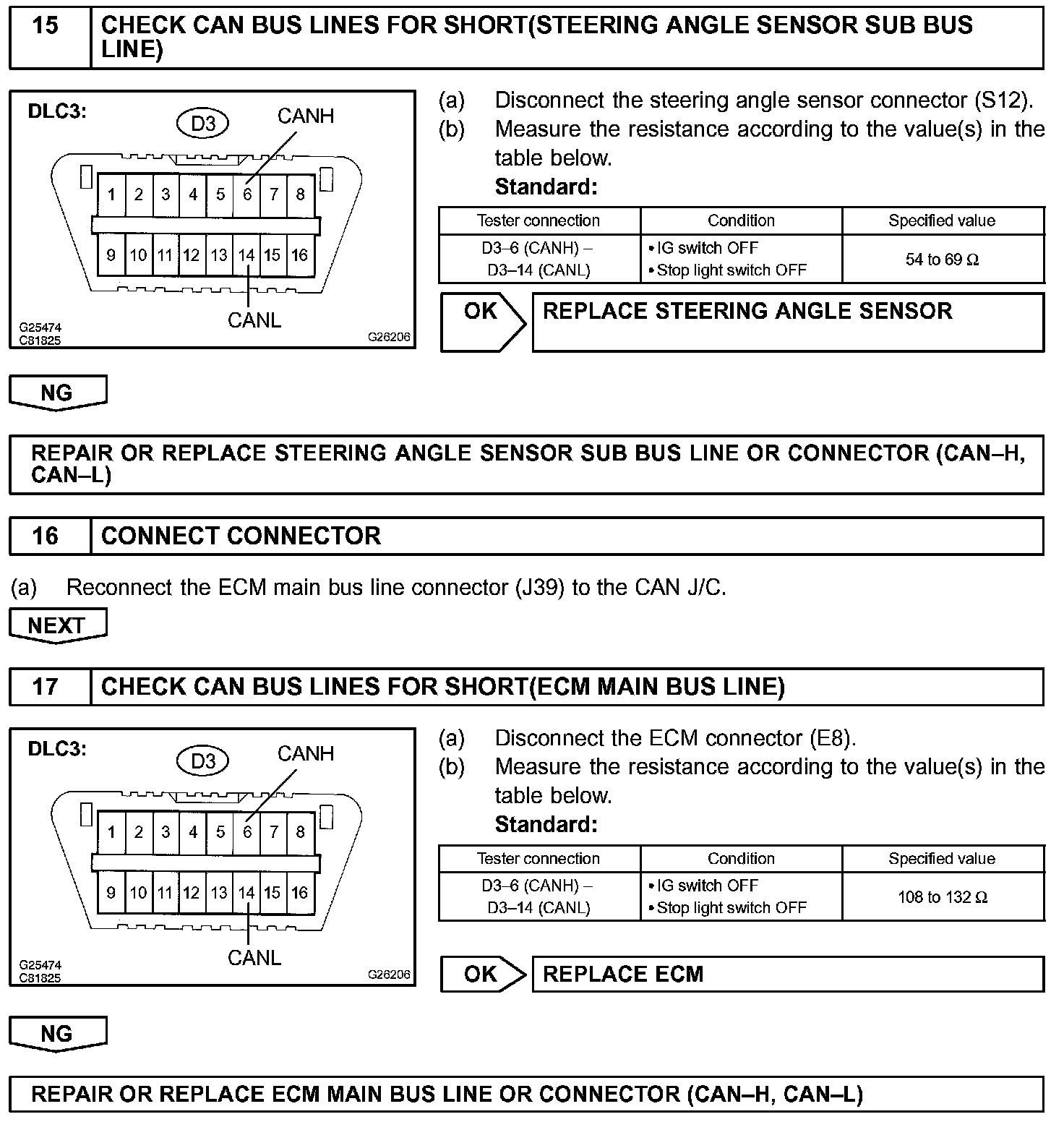

Step 15 - 17:




INSPECTION PROCEDURE
