Multiplex Communication System

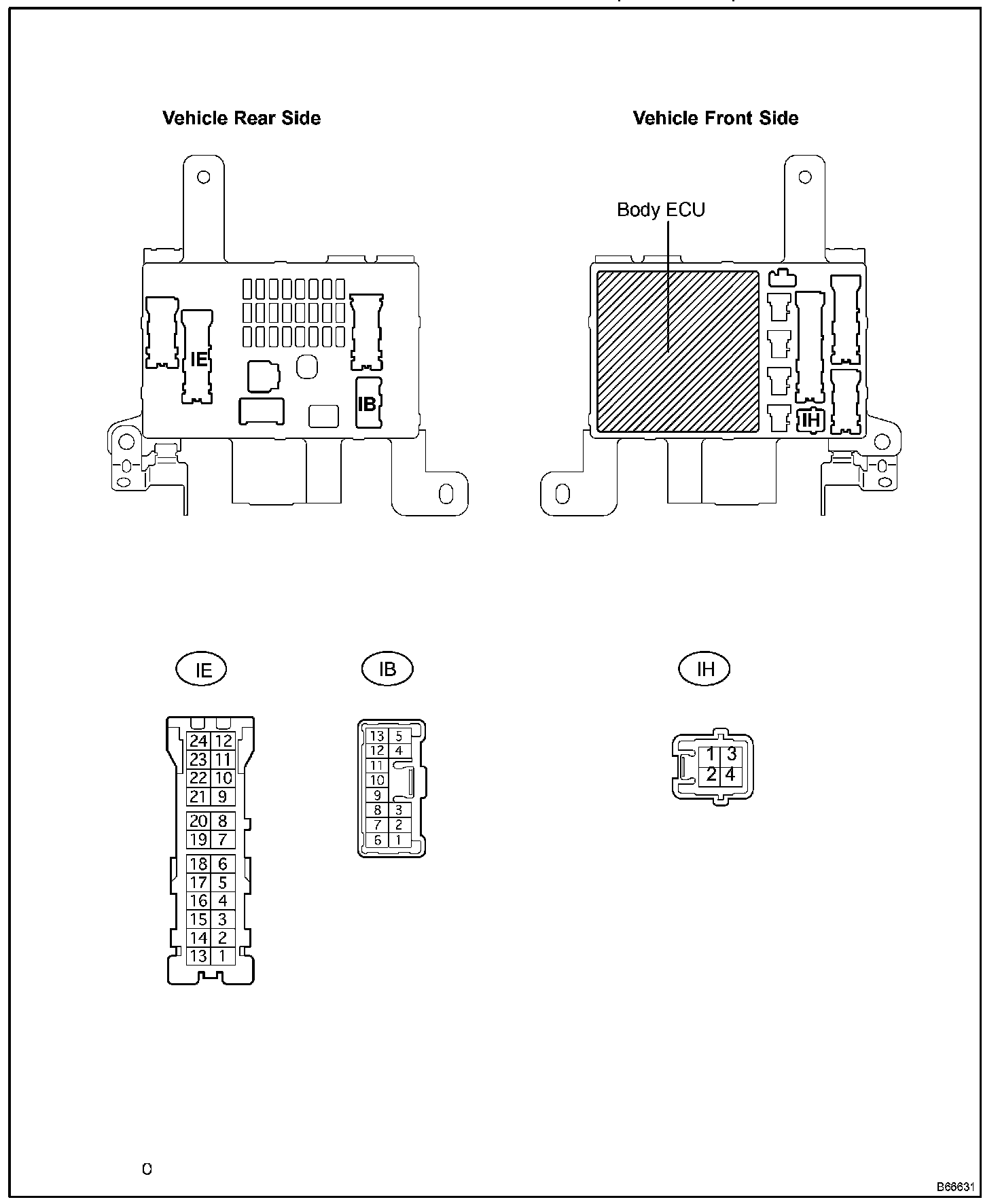

Terminals Of Control Module/Pinouts - Check Instrument Panel Junction Block Assy (Body ECU) Part 1:

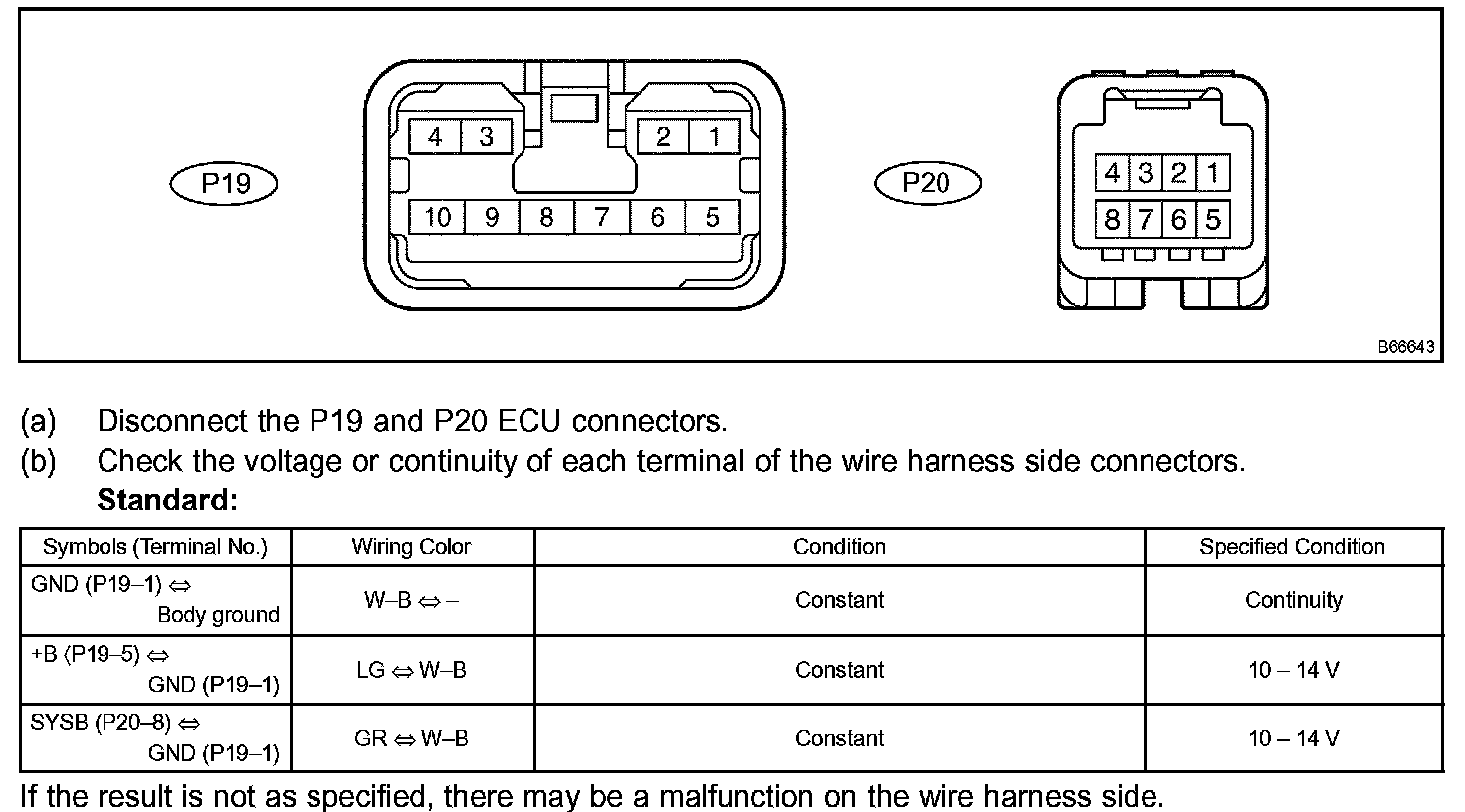

Terminals Of Control Module/Pinouts - Check Instrument Panel Junction Block Assy (Body ECU) Part 2:

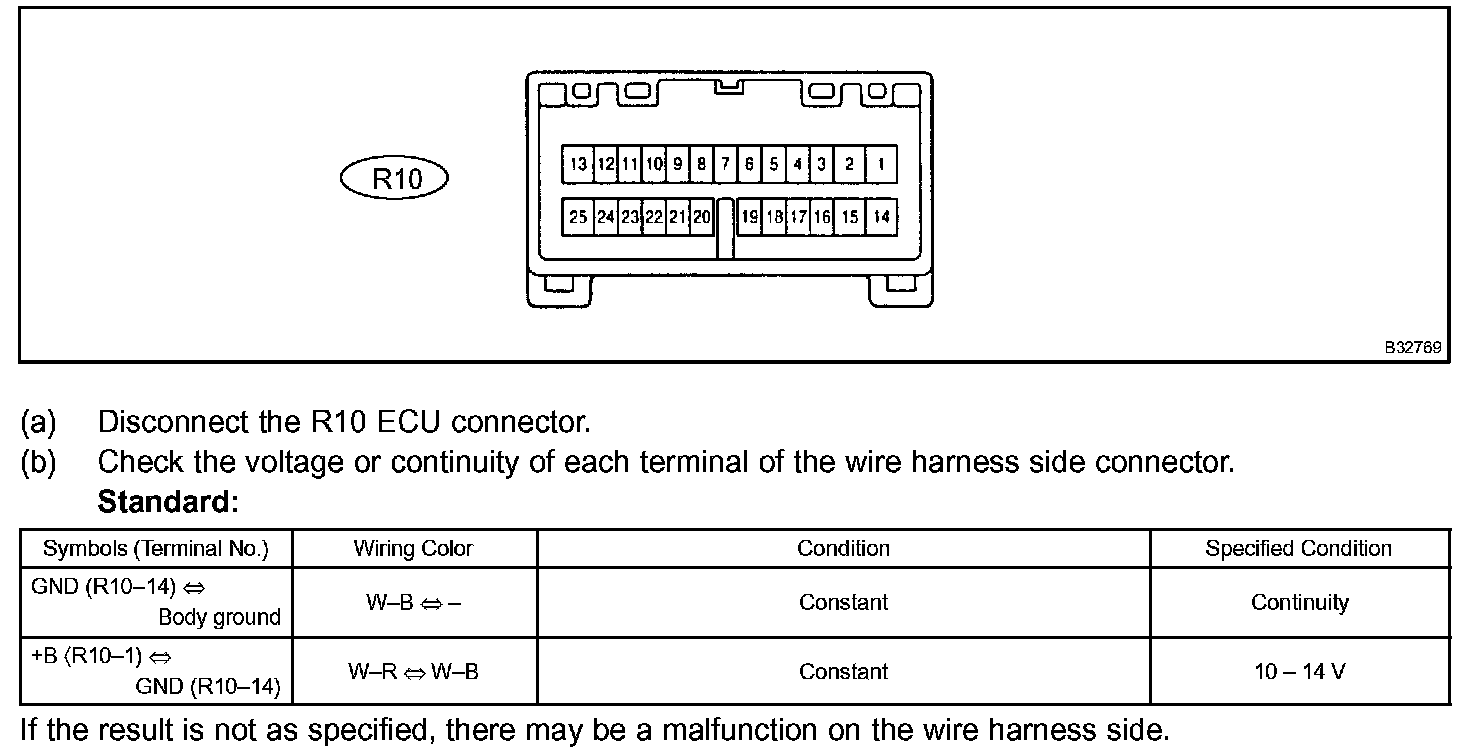

Terminals Of Control Module/Pinouts - Check Power Window Regular Matter Switch Assy (Driver Door ECU):

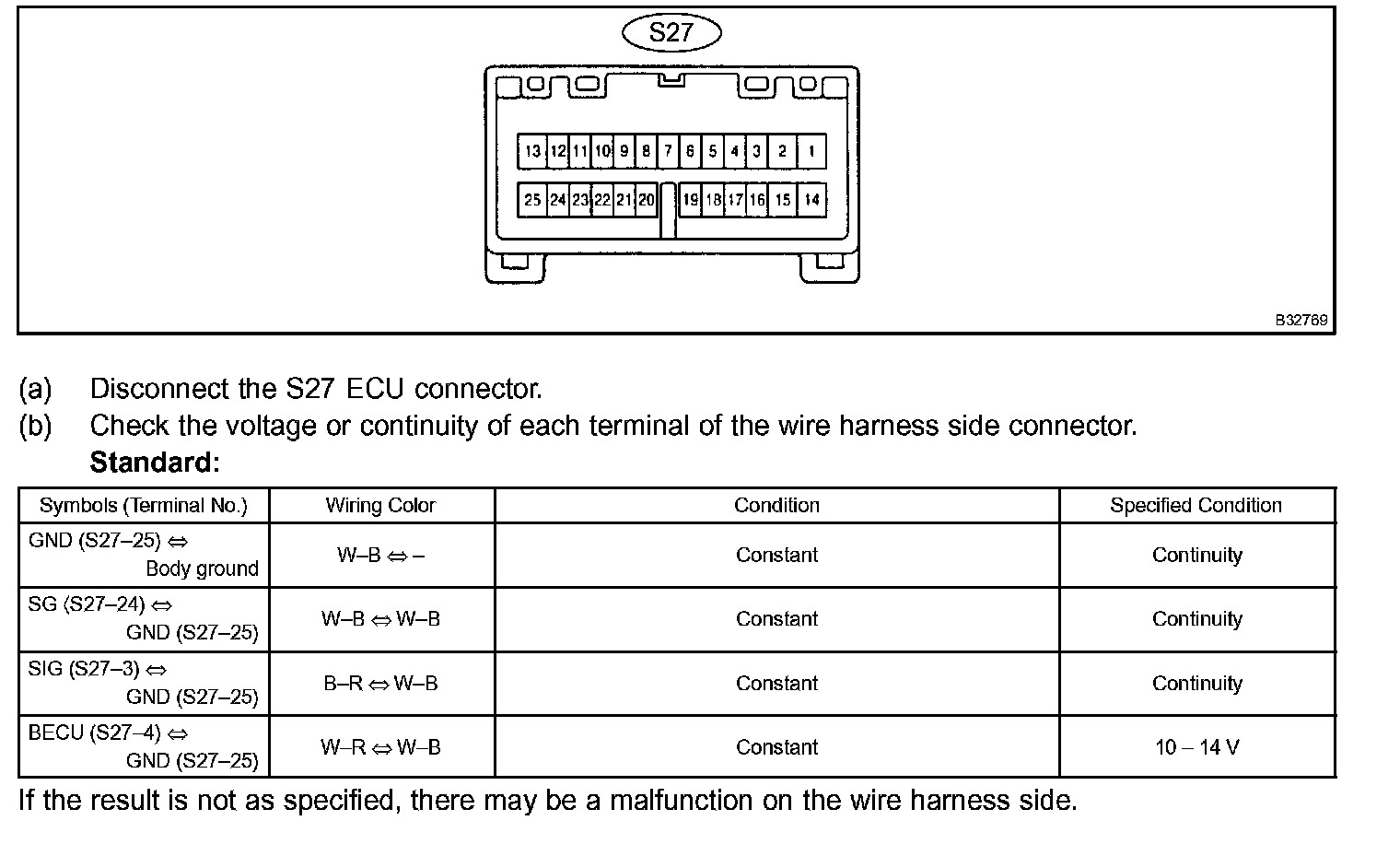

Terminals Of Control Module/Pinouts - Check Multiplex Tilt & Telescopic ECU (Tilt & Telescopic ECU):

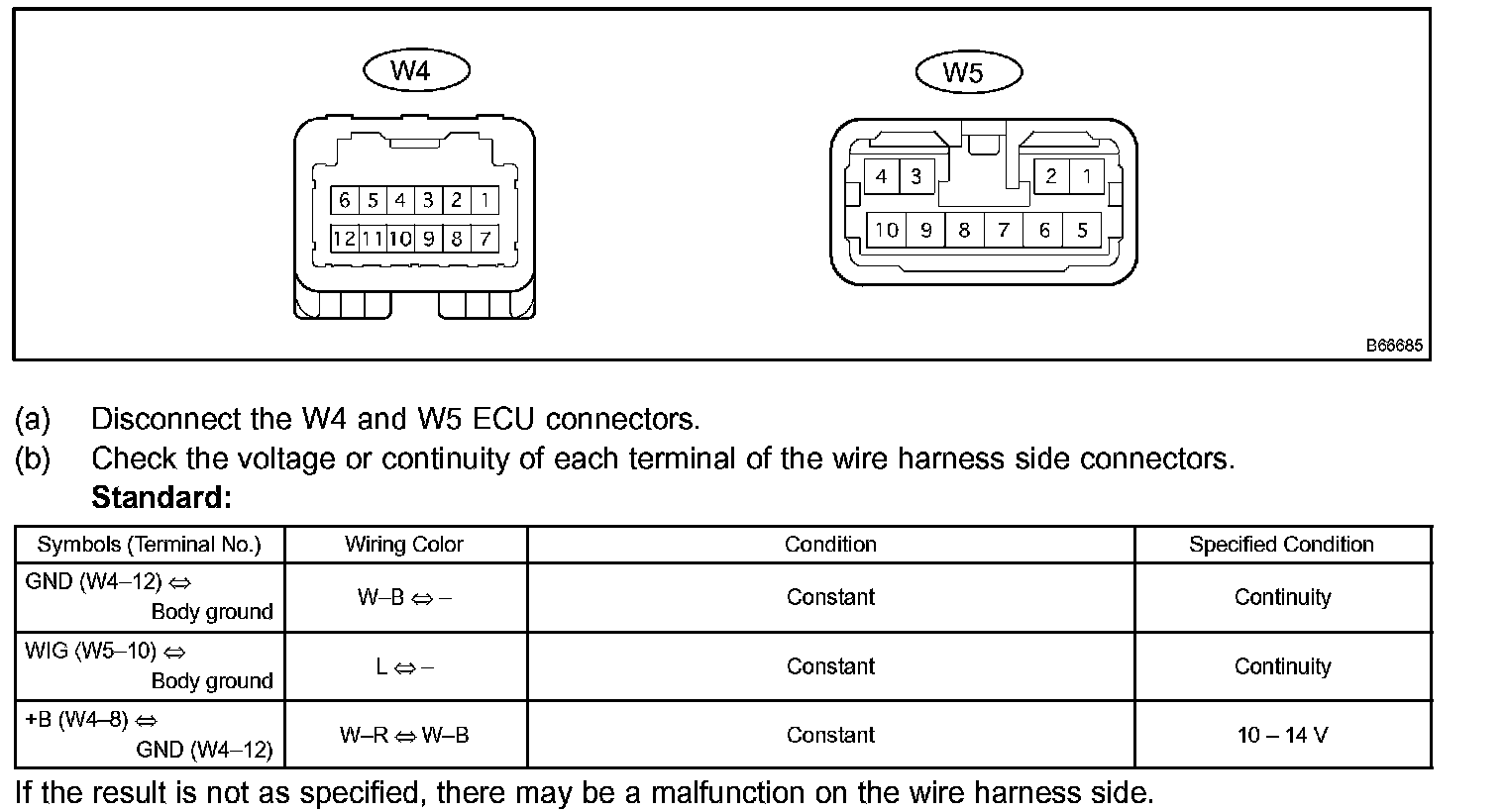

Terminals Of Control Module/Pinouts - Check Multiplex Network Body ECU No.2 (Body No.2 ECU):

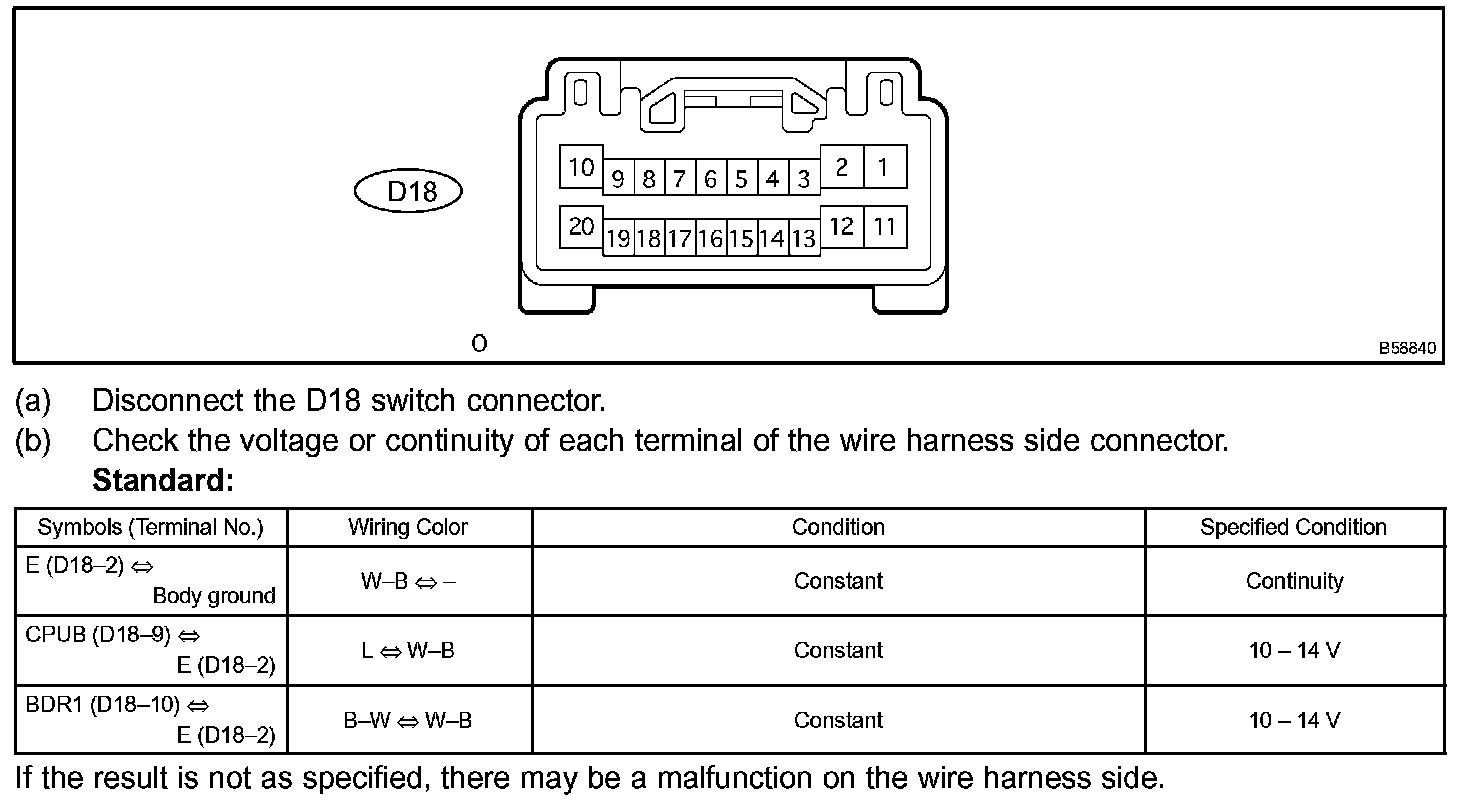

Terminals Of Control Module/Pinouts - Check Windshield Wiper ECU (Wiper ECU):

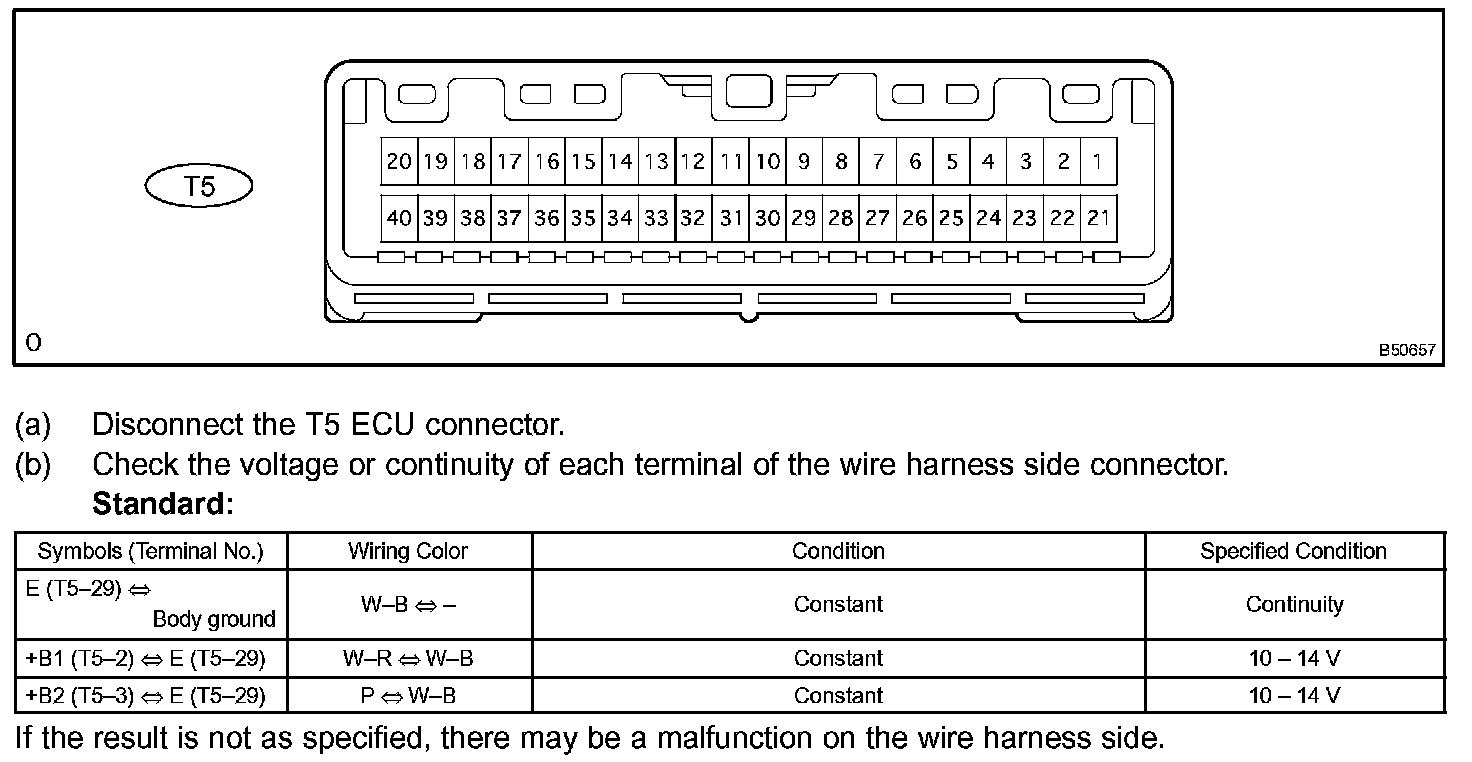

Terminals Of Control Module/Pinouts - Check Theft Warning ECU Assay ( Theft Deterrent ECU):

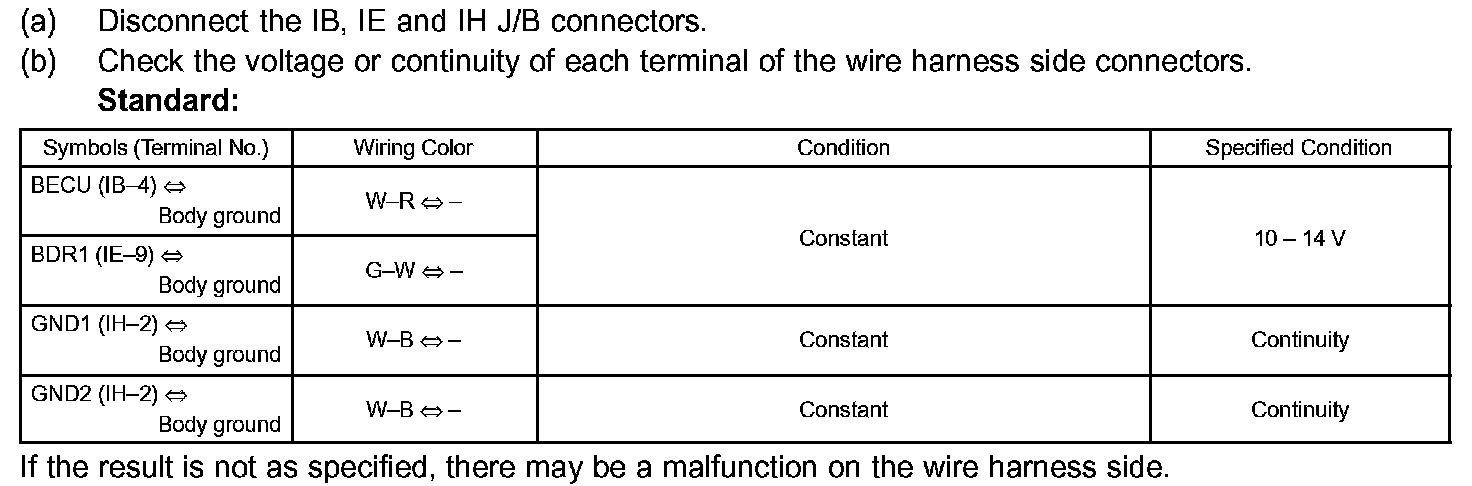

Terminals Of Control Module/Pinouts - Check Position Control ECU & Wiring Assy (Power Seat ECU):

Terminals Of Control Module/Pinouts Theft - Check Outer Mirror Control ECU Assy (Mirror ECU):

Terminals Of Control Module/Pinouts - Check Rain Sensor:
