Dynamic Laser Cruise Control System

TERMINALS OF ECU

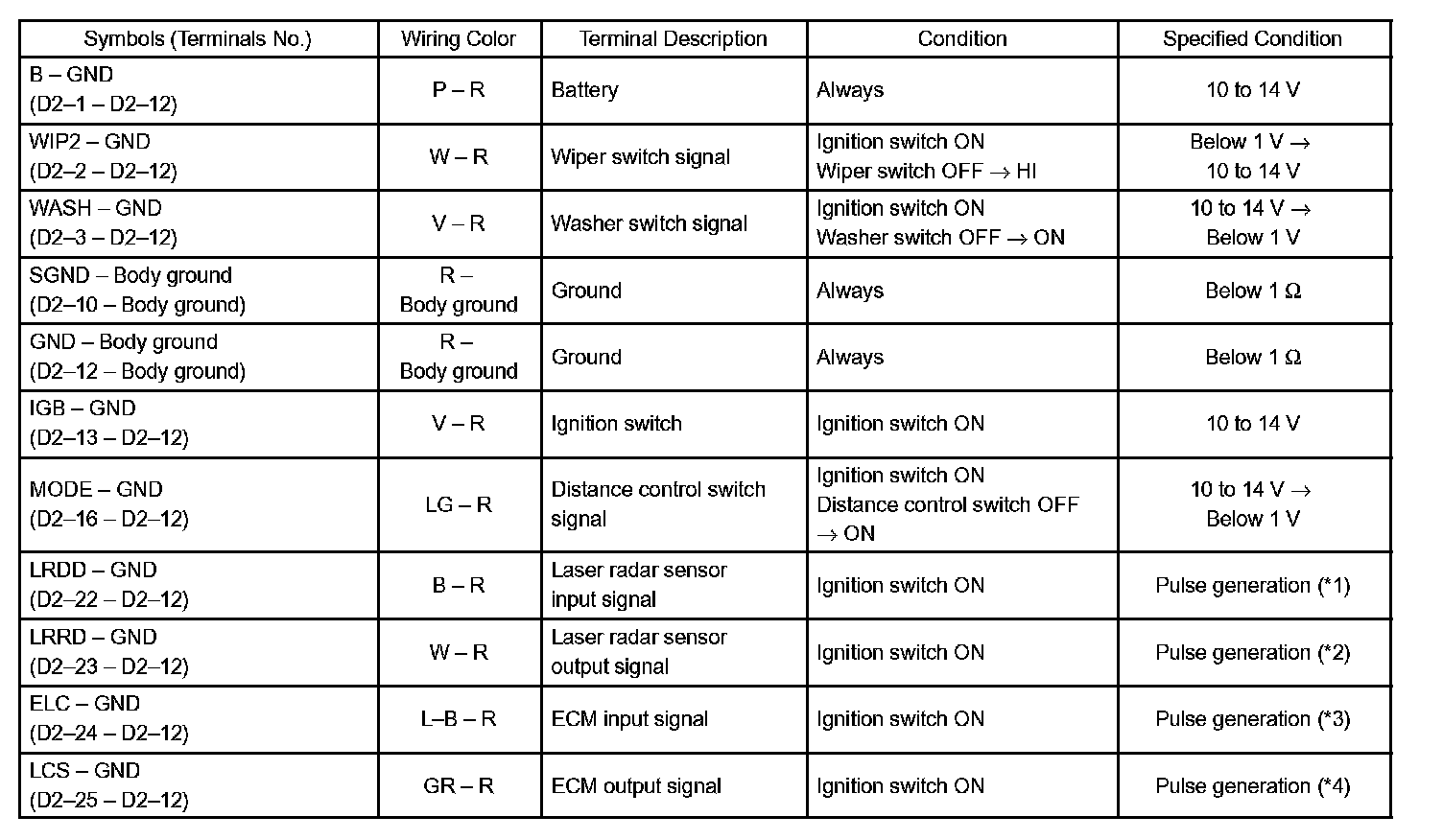

Terminals Of Control Module/Pinouts:

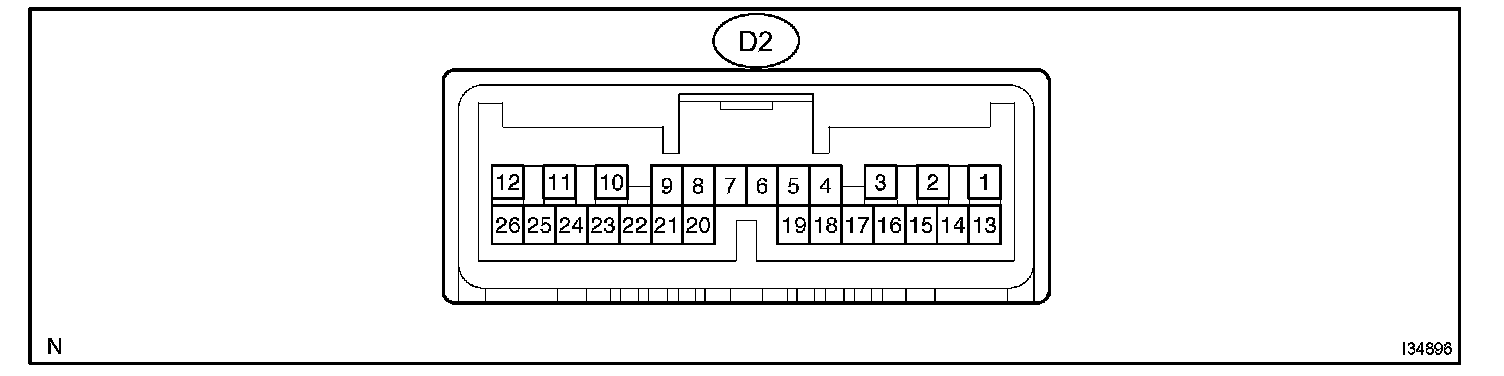

1. DISTANCE CONTROL ECU

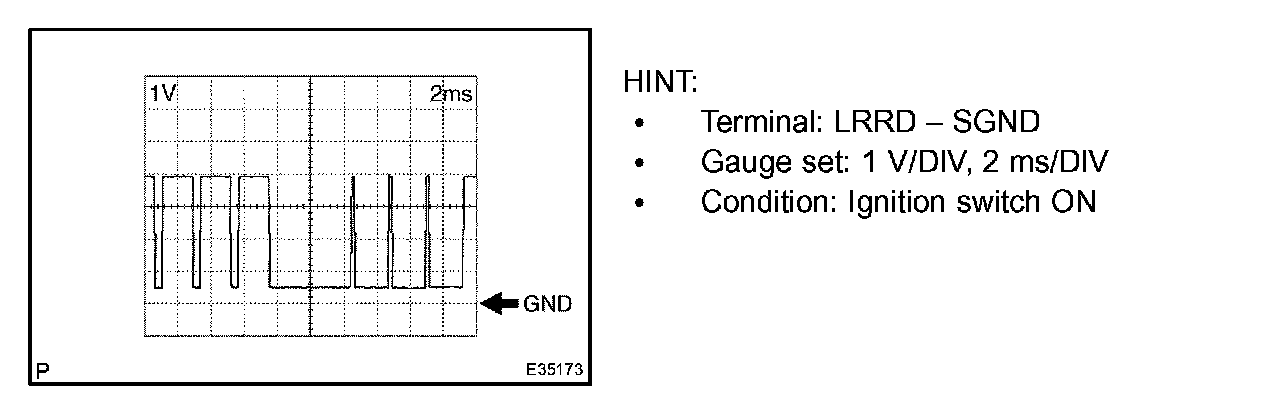

Oscilloscope Waveforms:

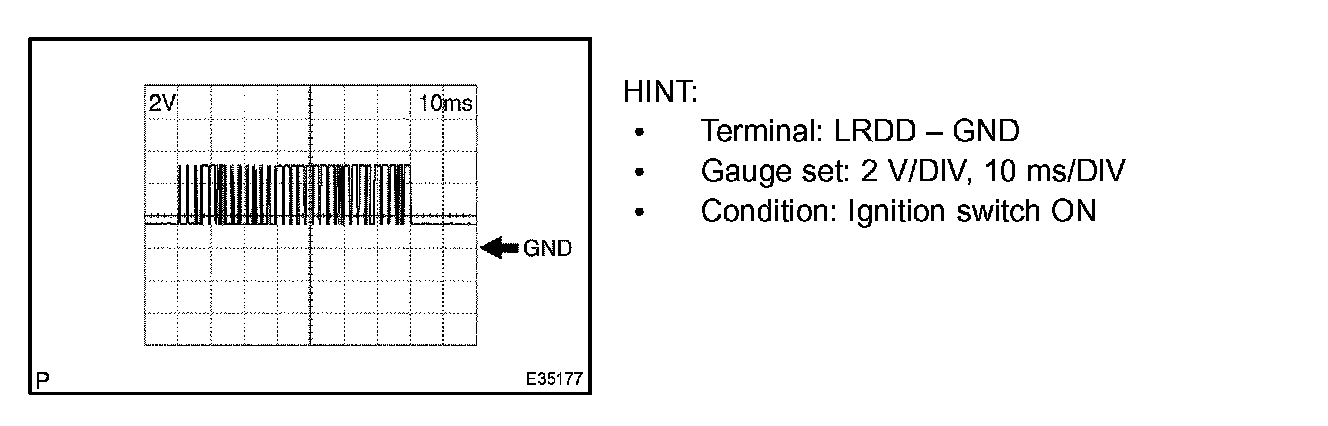

a. Reference: Oscilloscope wave form (*1)

Oscilloscope Waveforms:

b. Reference: Oscilloscope wave form (*2)

Oscilloscope Waveforms:

c. Reference: Oscilloscope wave form (*3)

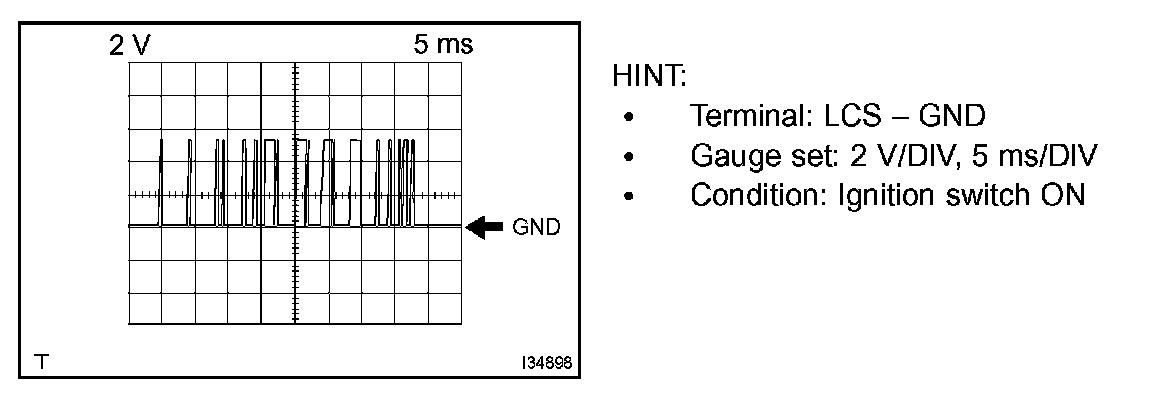

Oscilloscope Waveforms:

d. Reference: Oscilloscope wave form (*4)

Terminals Of Control Module/Pinouts:

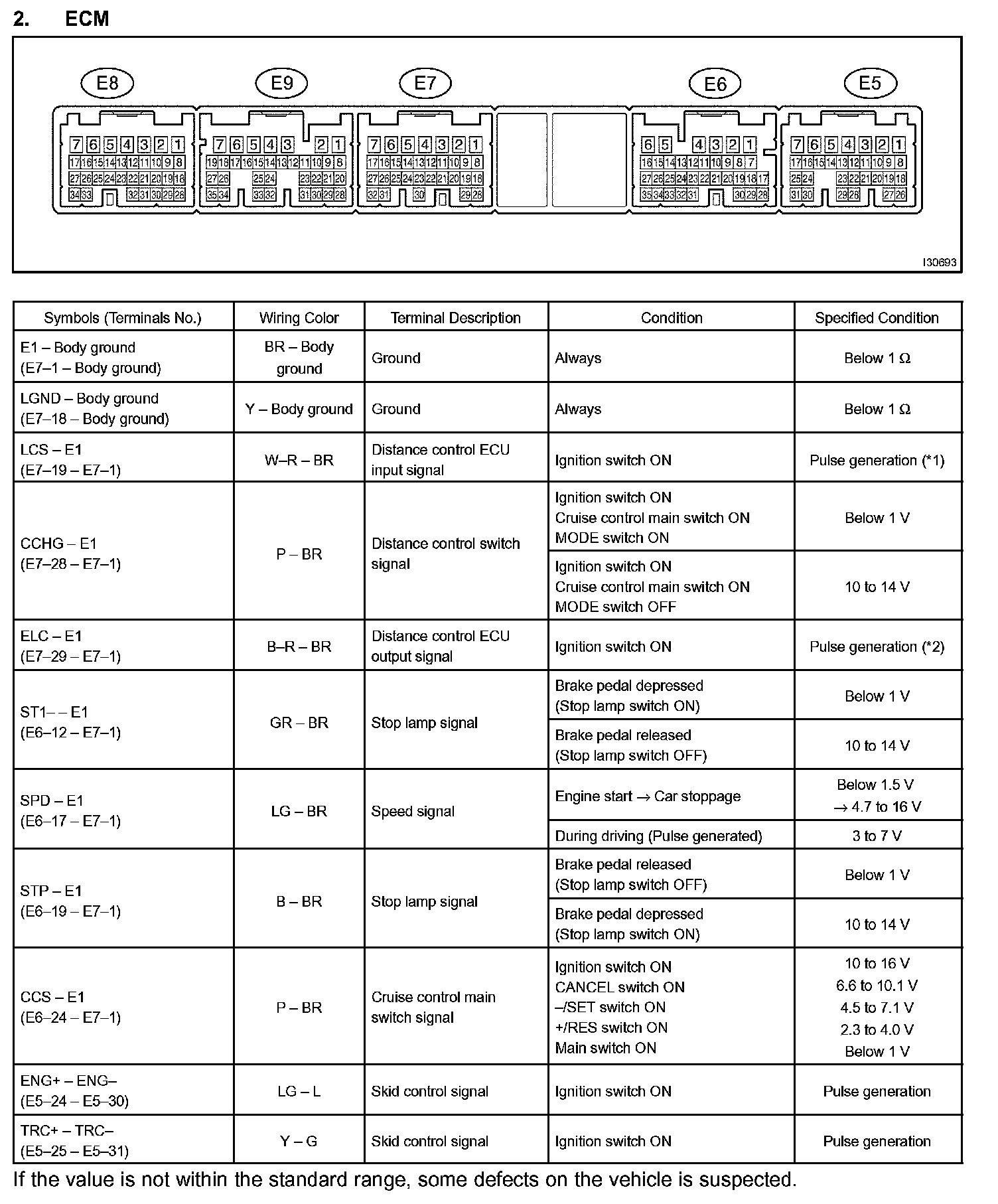

2. ECM

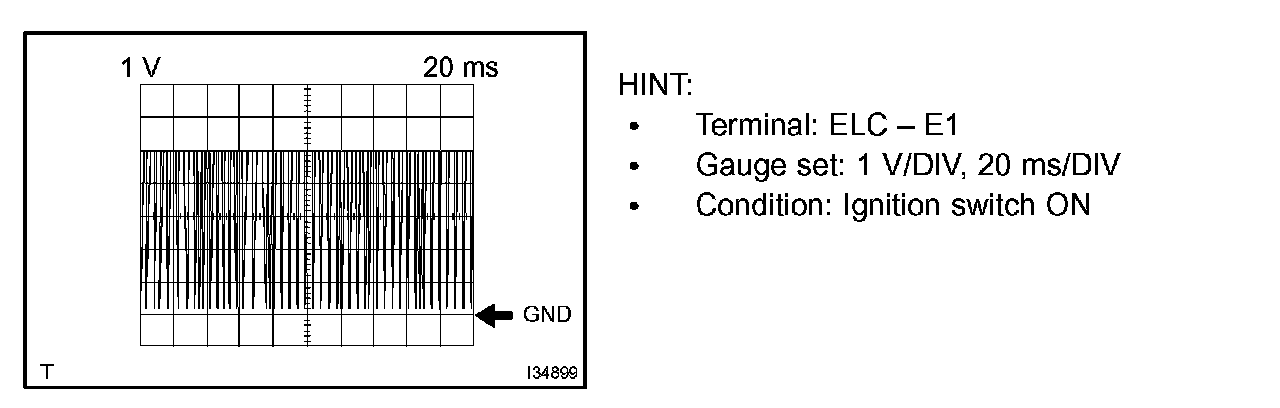

Oscilloscope Waveforms:

a. Reference: Oscilloscope wave form (*1)

Oscilloscope Waveforms:

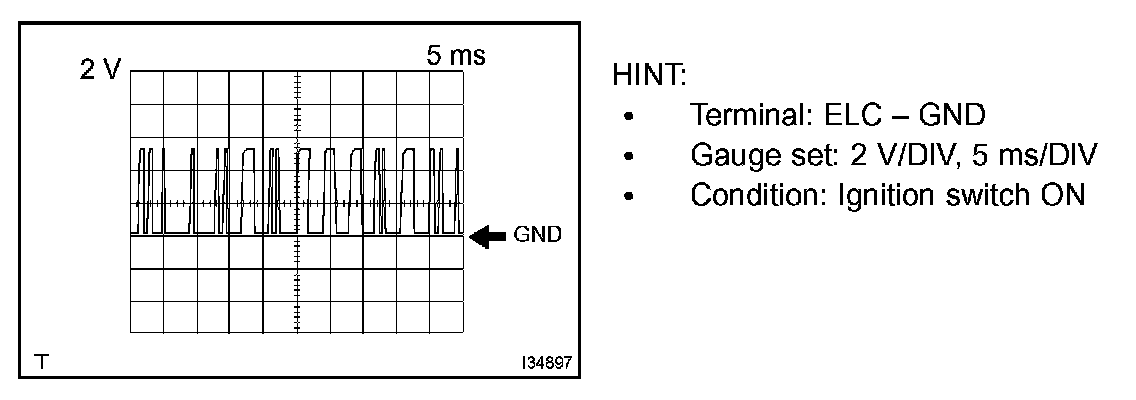

b. Reference: Oscilloscope wave form (*2)

Terminals Of Control Module/Pinouts:

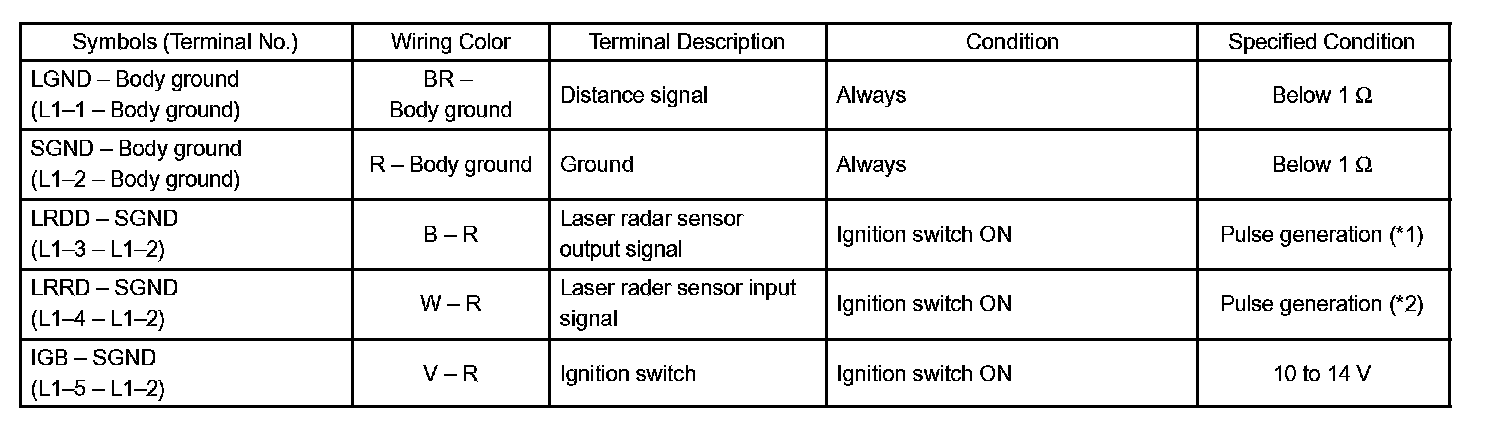

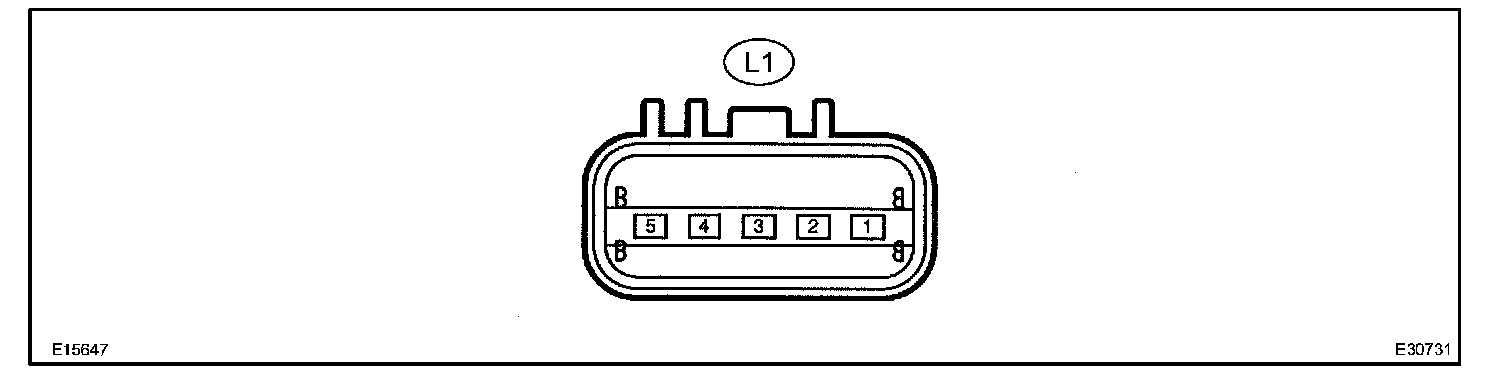

3. LASER RADAR SENSOR

Oscilloscope Waveforms:

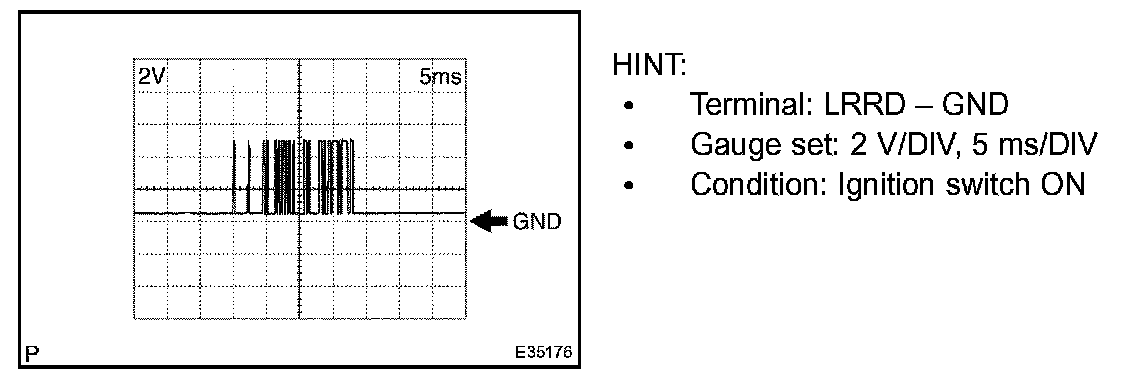

a. Reference: Oscilloscope wave form (*1)

Oscilloscope Waveforms:

b. Reference: Oscilloscope wave form (*2)

Terminals Of Control Module/Pinouts:

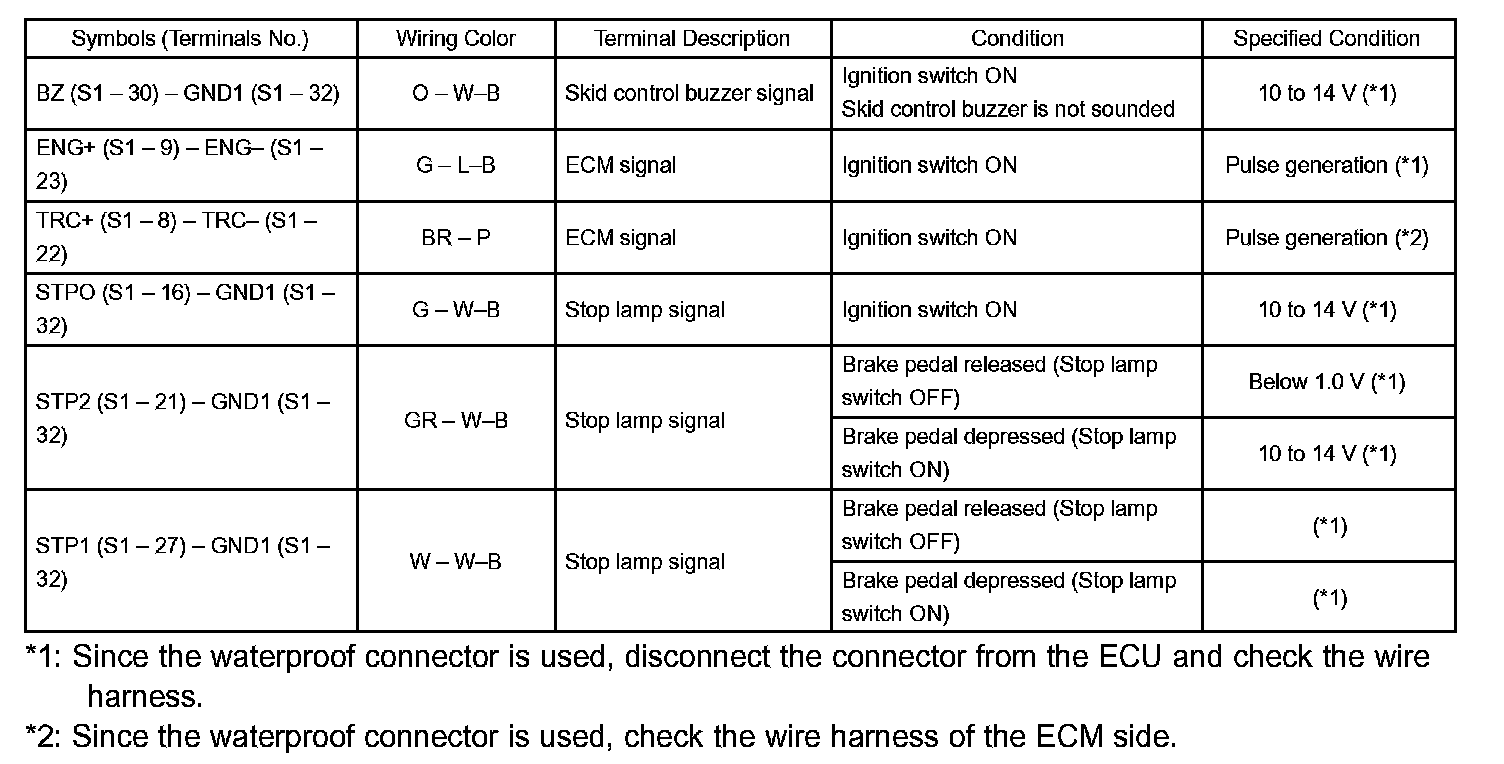

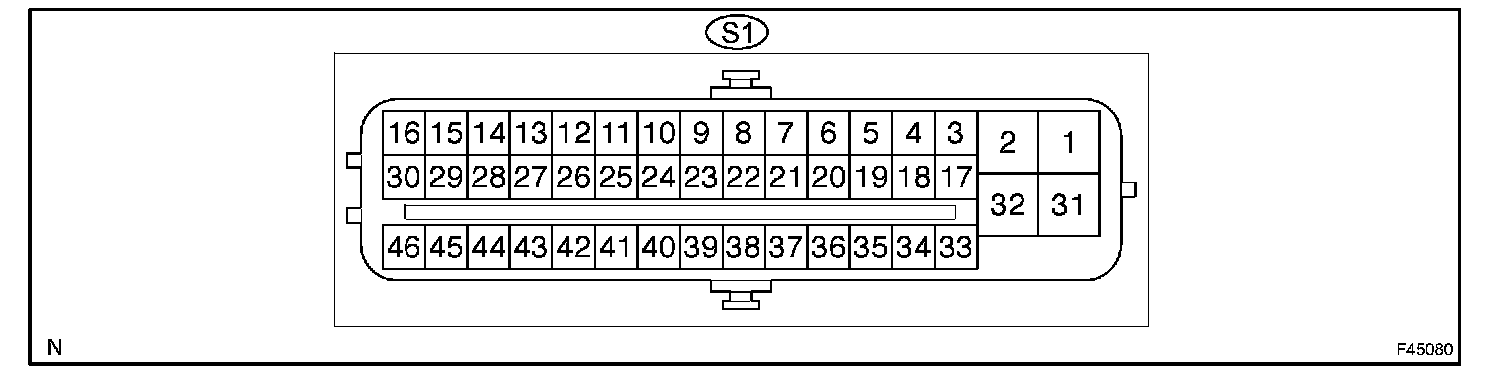

4. BRAKE ACTUATOR ASSY (SKID CONTROL ECU)
