LAP-JET Damper Control Servomotor Circuit
LAP-JET DAMPER CONTROL SERVOMOTOR CIRCUITCIRCUIT DESCRIPTIONThe damper servo is controlled by the A/C amplifier, and the A/C amplifier moves the damper servo (lap-jet) to the desired position.
Wiring Diagram:

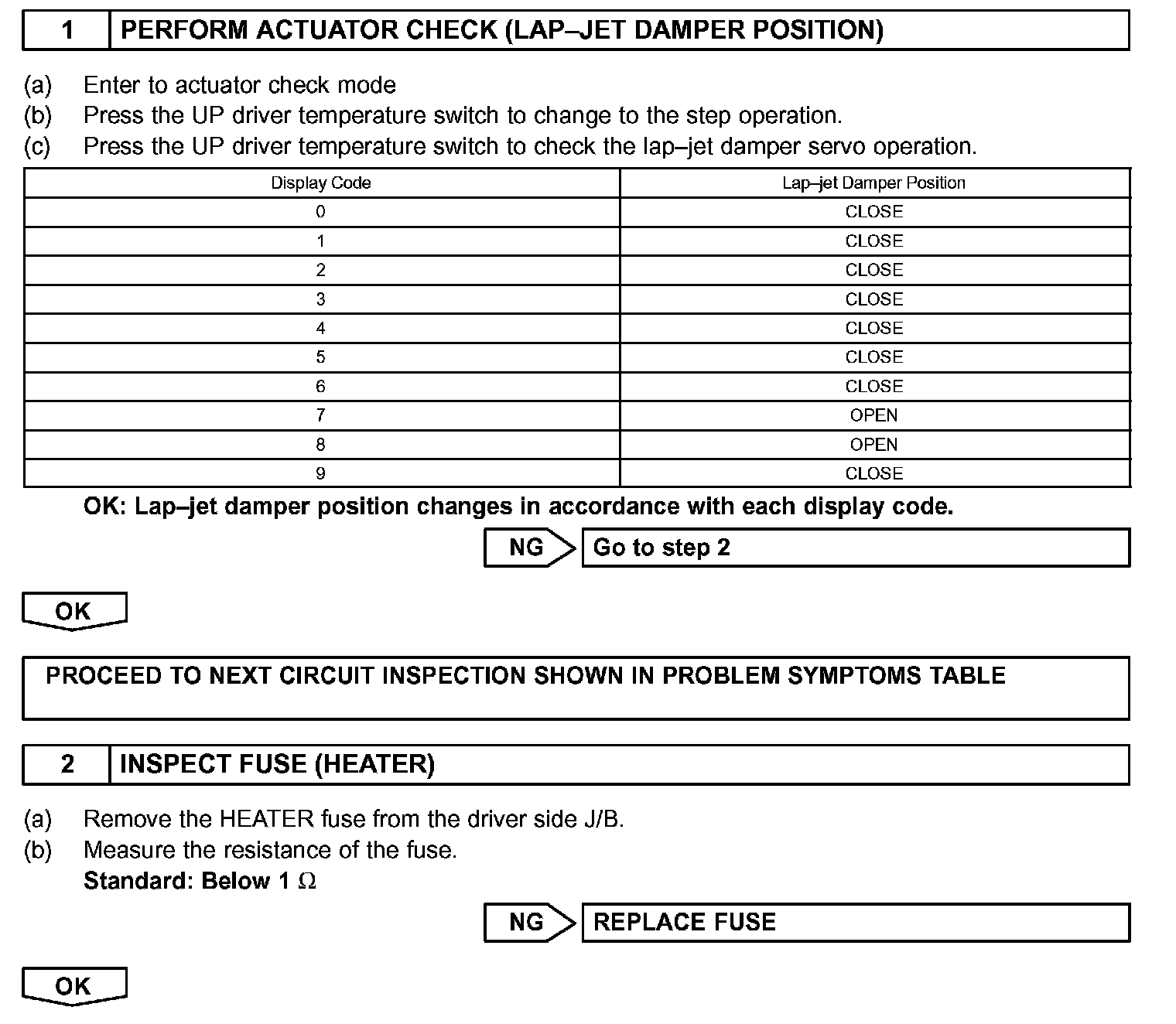

Step 1 - 2:

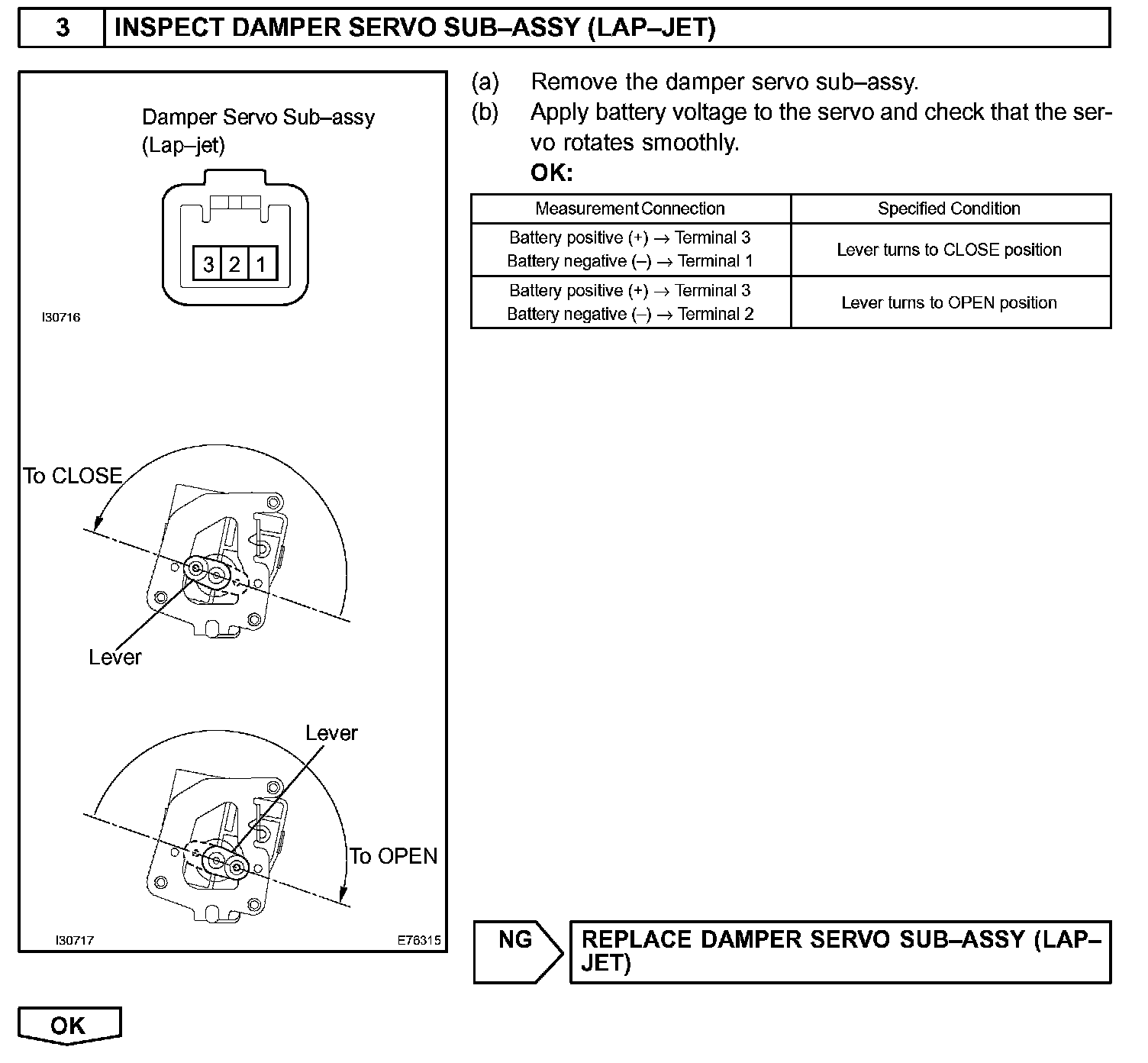

Step 3:

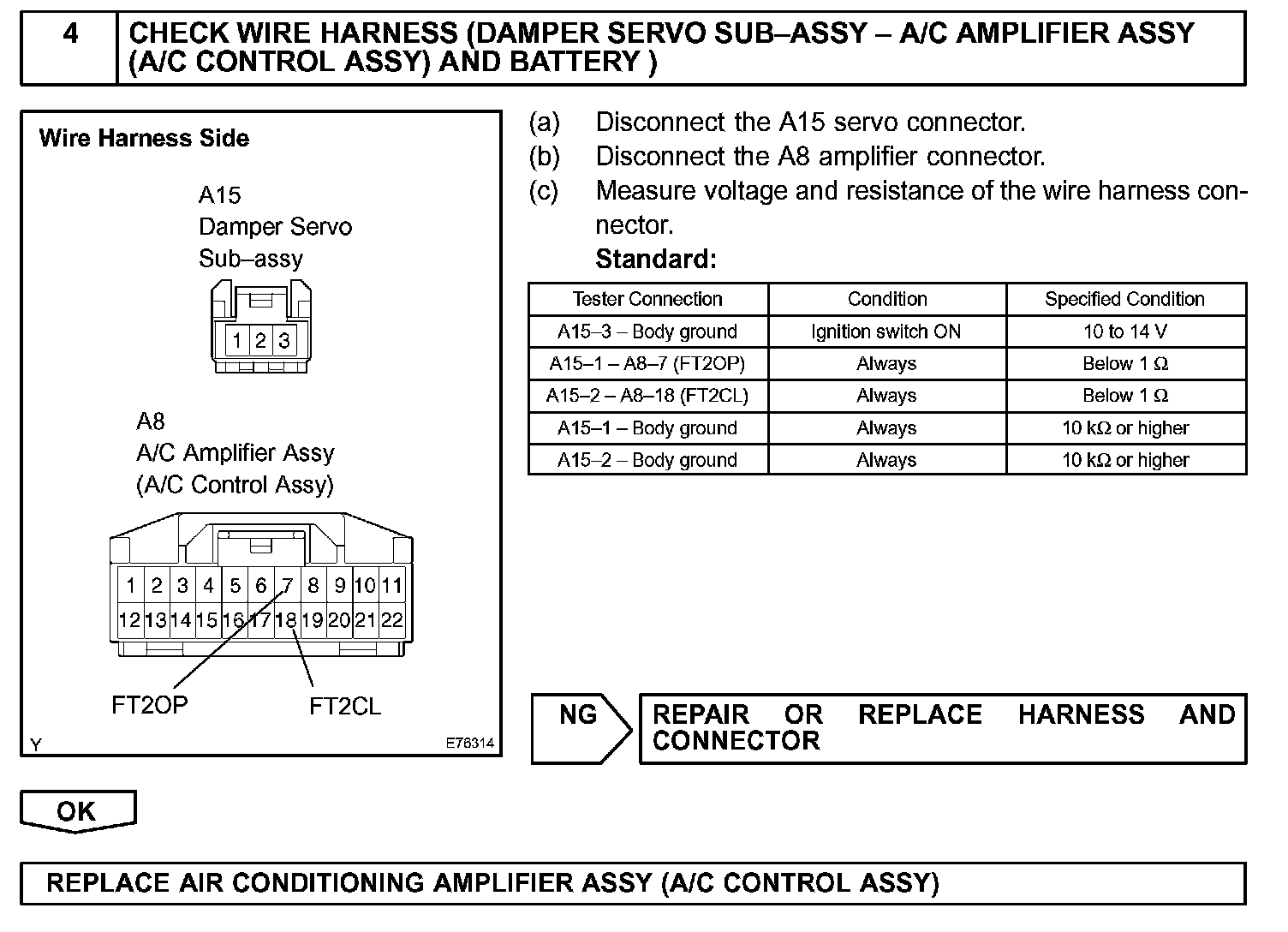

Step 4:
INSPECTION PROCEDURE
