Fuel Injector

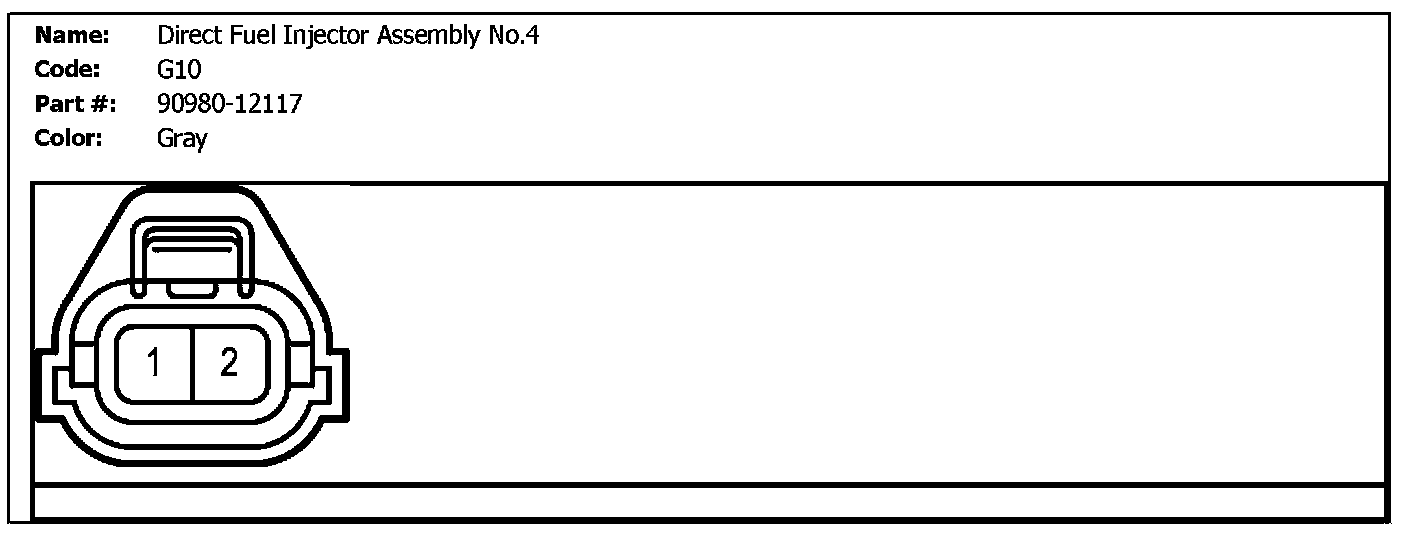

G10 (Direct Fuel Injector Assembly No.4):

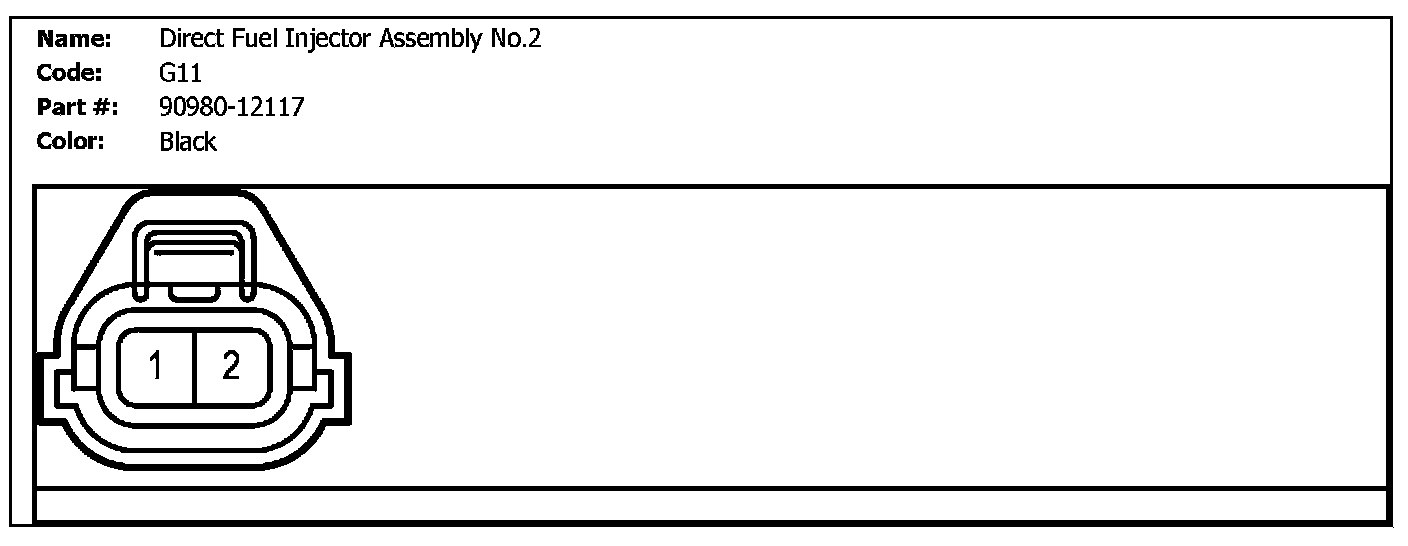

G11 (Direct Fuel Injector Assembly No.2):

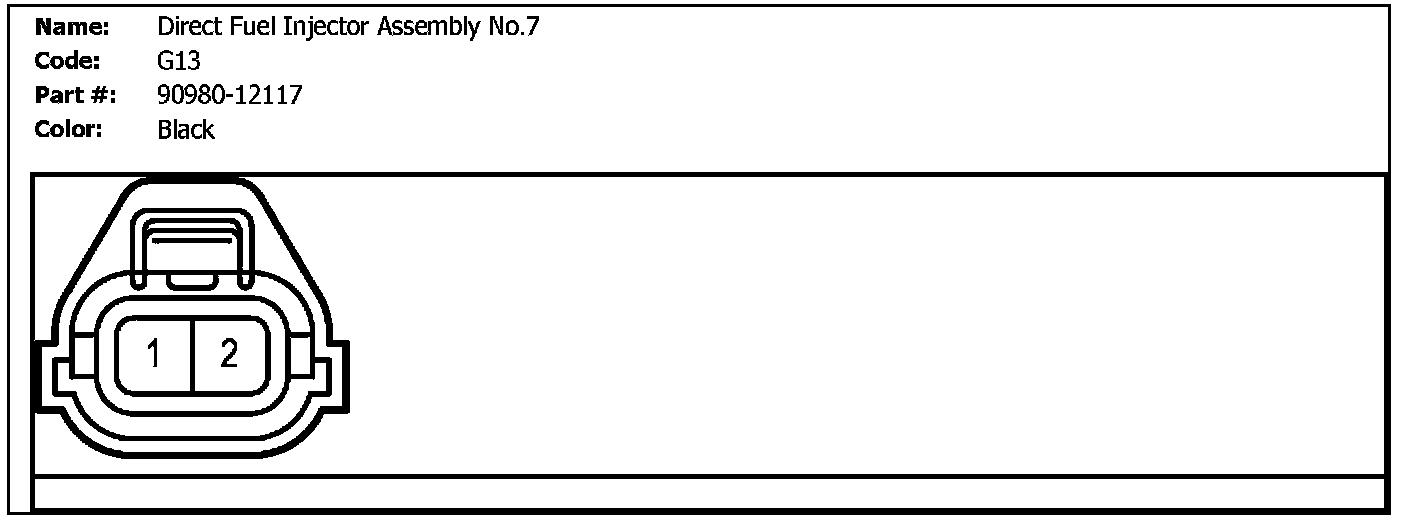

G13 (Direct Fuel Injector Assembly No.7):

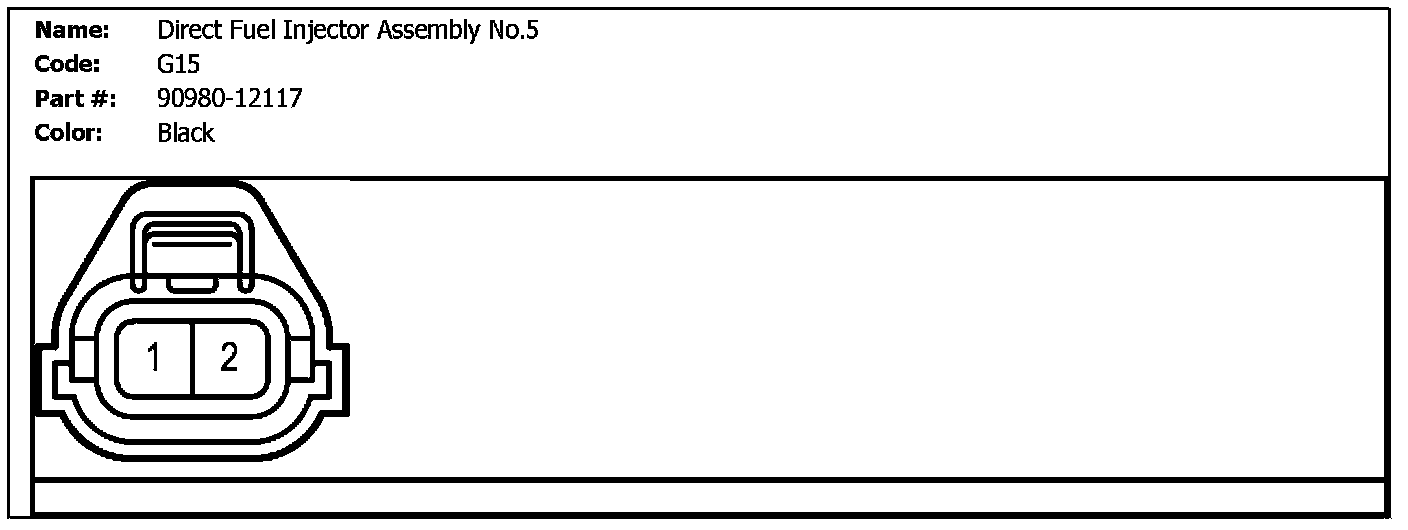

G15 (Direct Fuel Injector Assembly No.5):

G17 (Direct Fuel Injector Assembly No.3):

G18 (Direct Fuel Injector Assembly No.1):

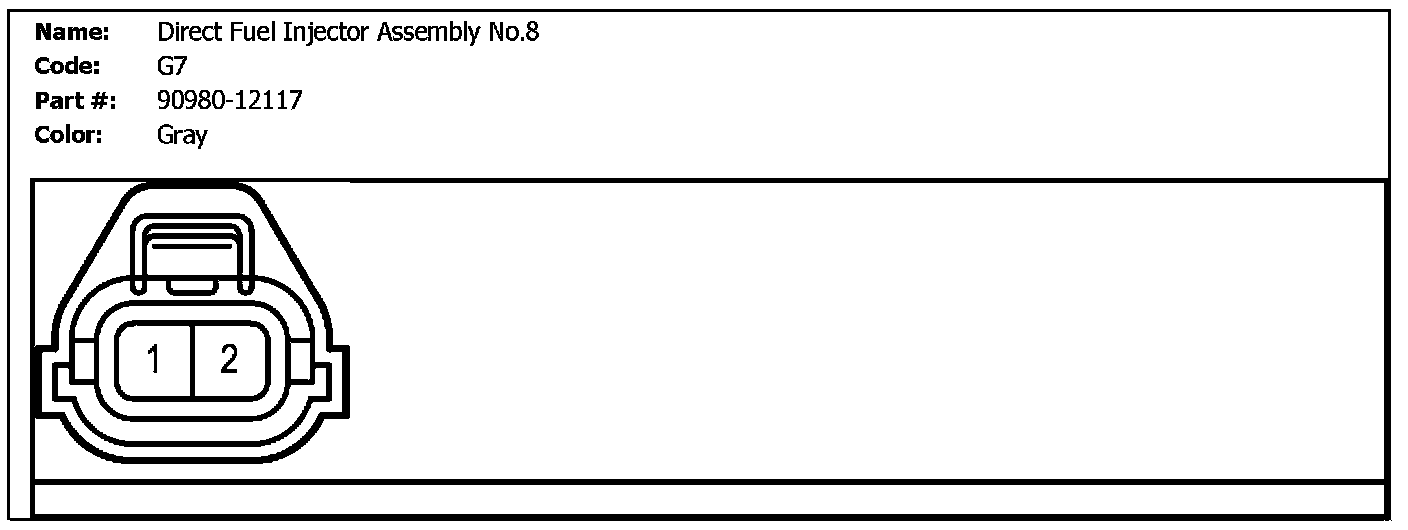

G7 (Direct Fuel Injector Assembly No.8):

G8 (Direct Fuel Injector Assembly No.6):

H5 (Port Fuel Injector Assembly No.2):

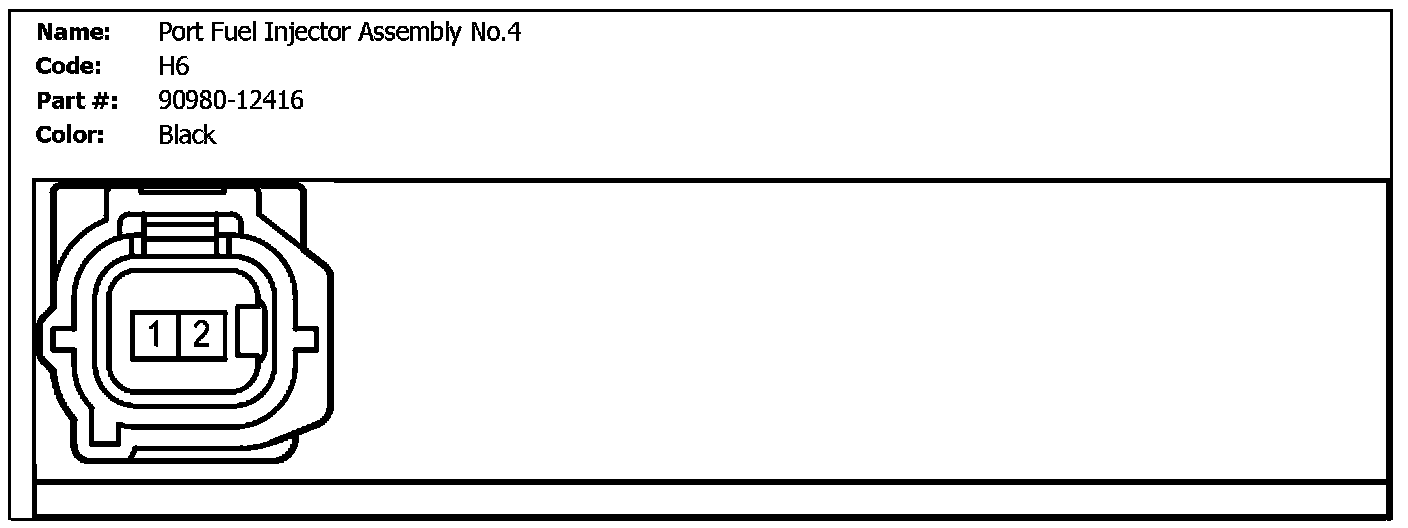

H6 (Port Fuel Injector Assembly No.4):

H7 (Port Fuel Injector Assembly No.6):

H8 (Port Fuel Injector Assembly No.8):

I5 (Port Fuel Injector Assembly No.1):

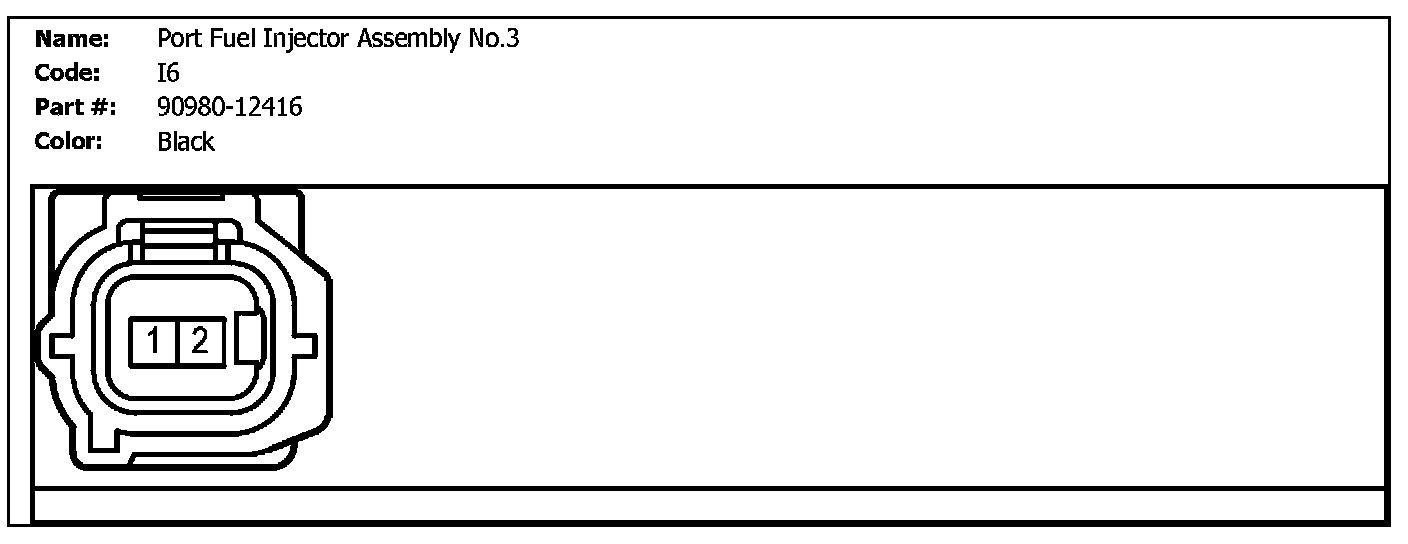

I6 (Port Fuel Injector Assembly No.3):

I7 (Port Fuel Injector Assembly No.5):

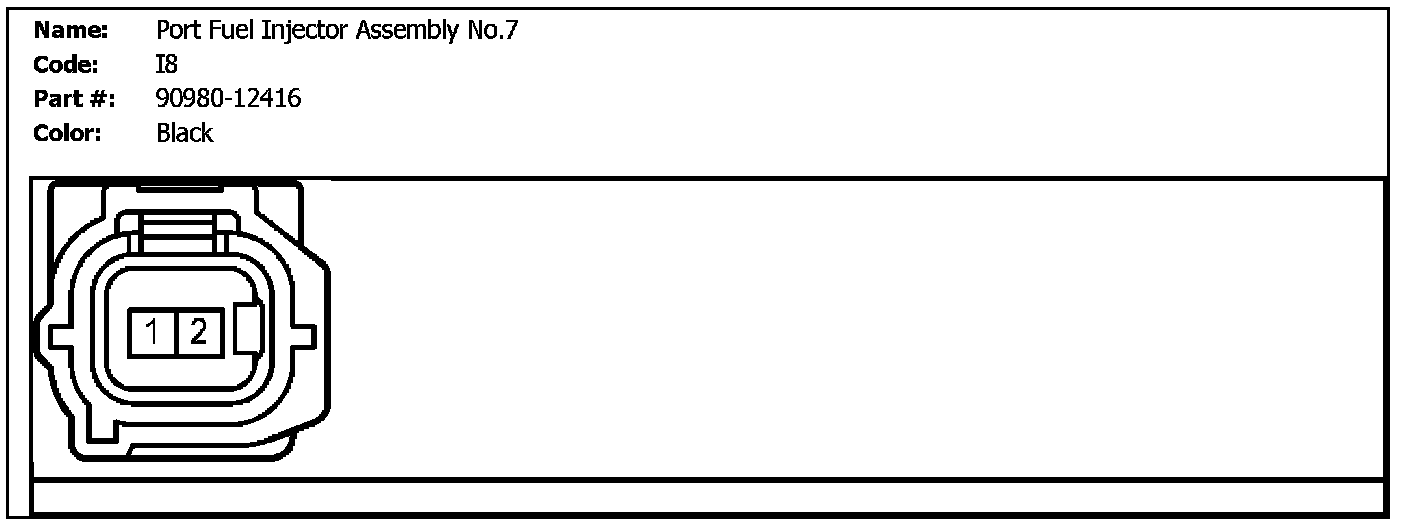

I8 (Port Fuel Injector Assembly No.7):
