Inspection









WINDOW / GLASS: POWER WINDOW REGULATOR MOTOR (for Front Door): INSPECTION

WINDOW / GLASS: POWER WINDOW REGULATOR MOTOR

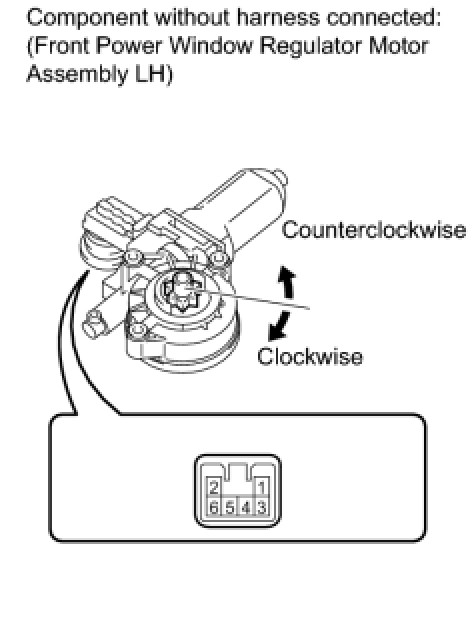

1. INSPECT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH






(a) Apply battery voltage to connector terminals 1 and 2.
NOTICE: Do not apply battery voltage to any terminals except terminals 1 and 2.

(b) Check that the motor gear rotates smoothly as follows.
OK:





If the result is not as specified, replace the power window regulator motor assembly.

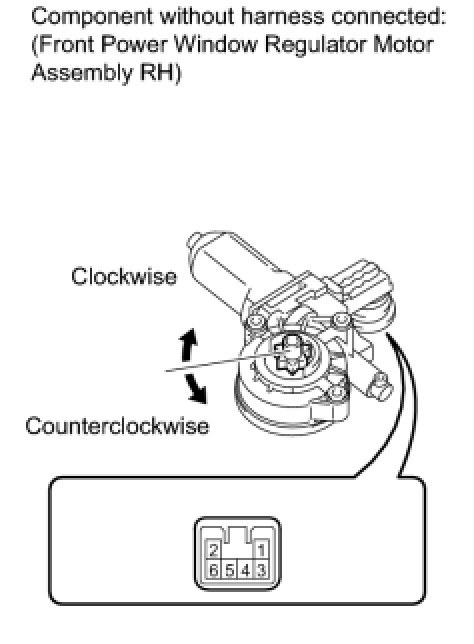

2. INSPECT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH






(a) Apply battery voltage to connector terminals 1 and 2.
NOTICE: Do not apply battery voltage to any terminals except terminals 1 and 2.

(b) Check that the motor gear rotates smoothly as follows.
OK:
