Pressure Feedback Exhaust Sensor: Service and Repair

REMOVAL

1. Remove the cowl vent screen.

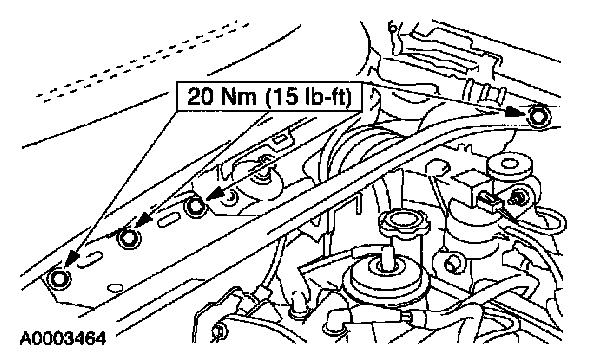

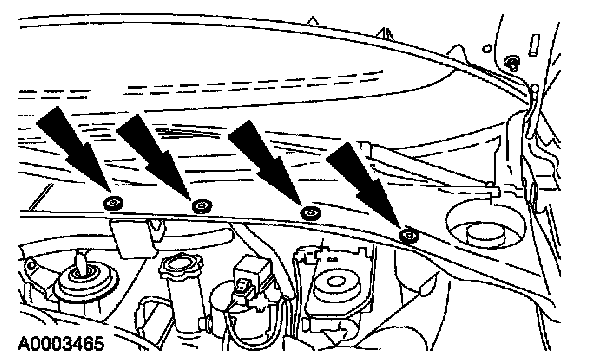

2. Remove the seven bolts and position the cross vehicle support out of the way.

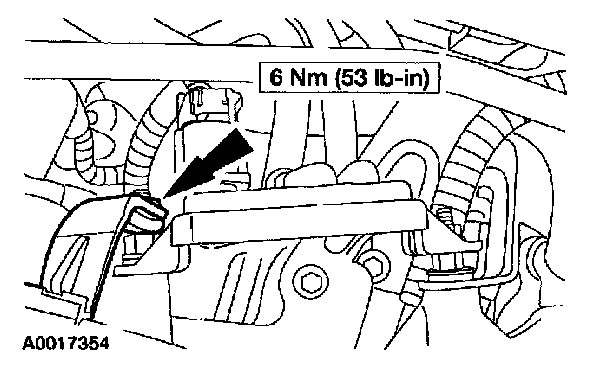

3. Remove the nut and the throttle cable bracket.

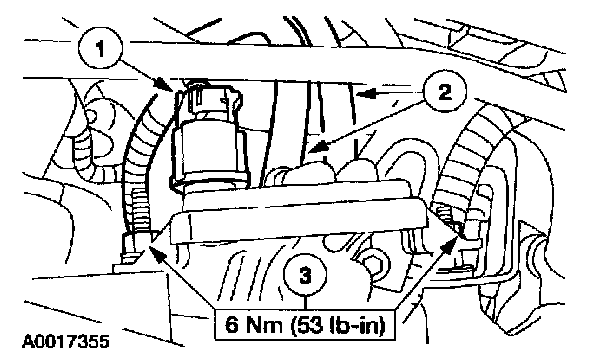

4. Remove the differential pressure feedback EGR.
1 Disconnect the electrical connector.
2 Disconnect the hoses.
3 Remove the bolts and the differential pressure feedback EGR.

INSTALLATION
1. To install, reverse the removal procedure.
