System Specifications

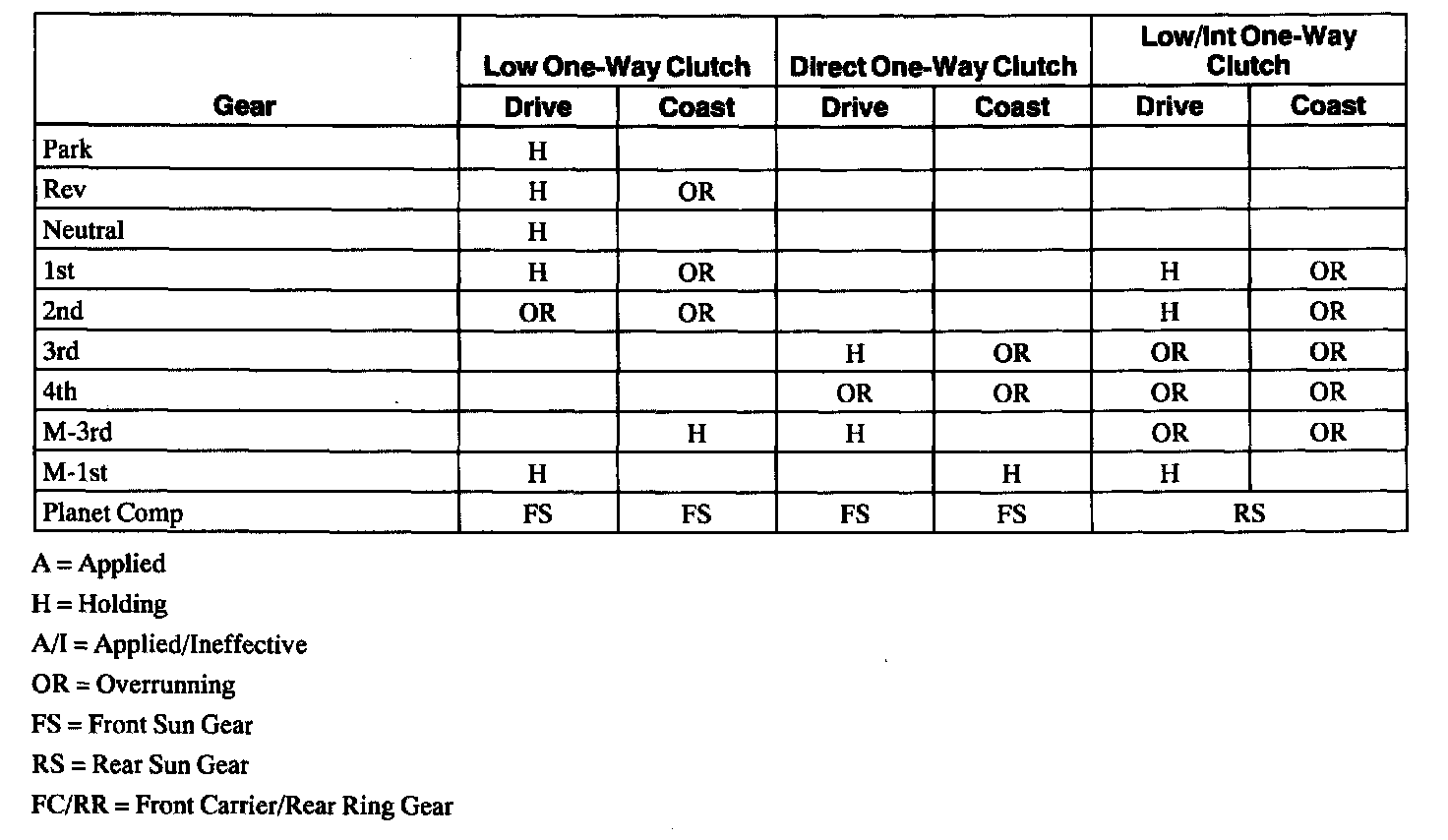

Automatic Transmission A= Applied
H= Holding
A/I= Applied/Ineffective
OR= Overrunning
FS= Front
Sun Gear RS= Rear Sun Gear
FC/RR= Front Carrier/Rear Ring Gear

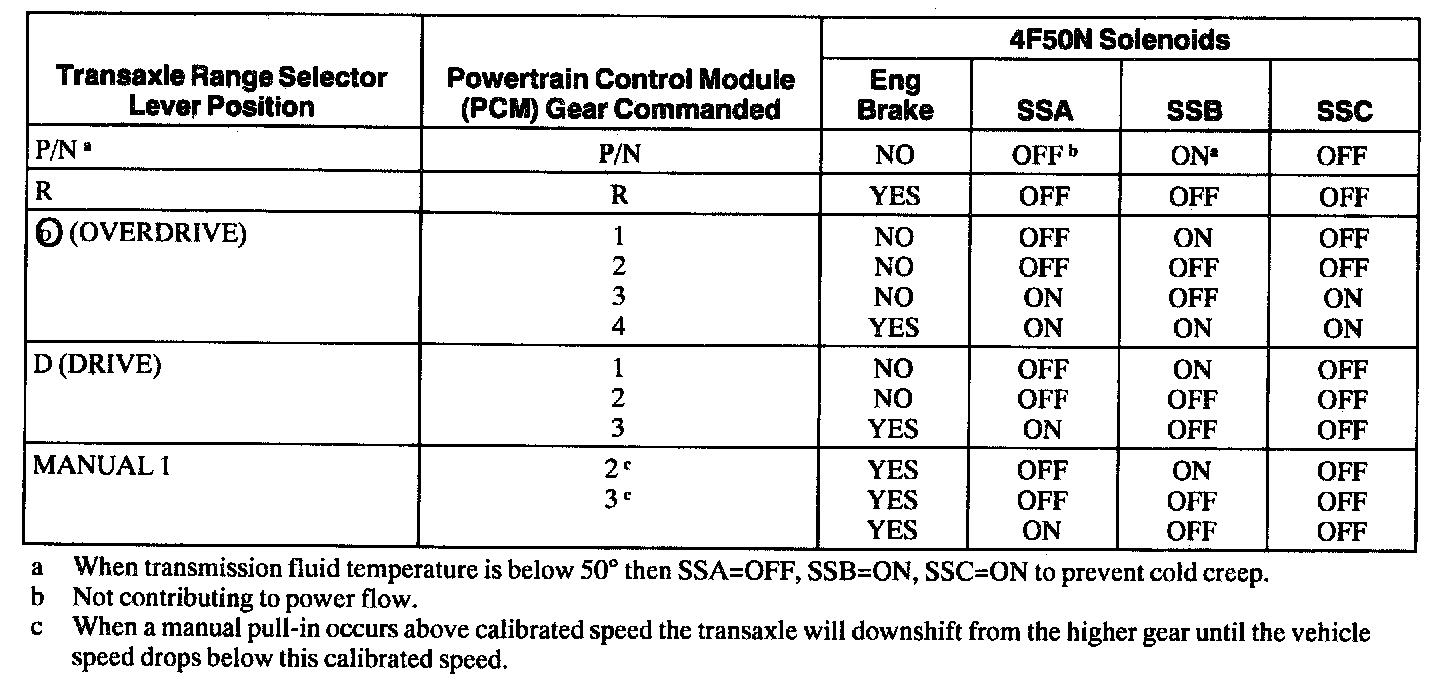

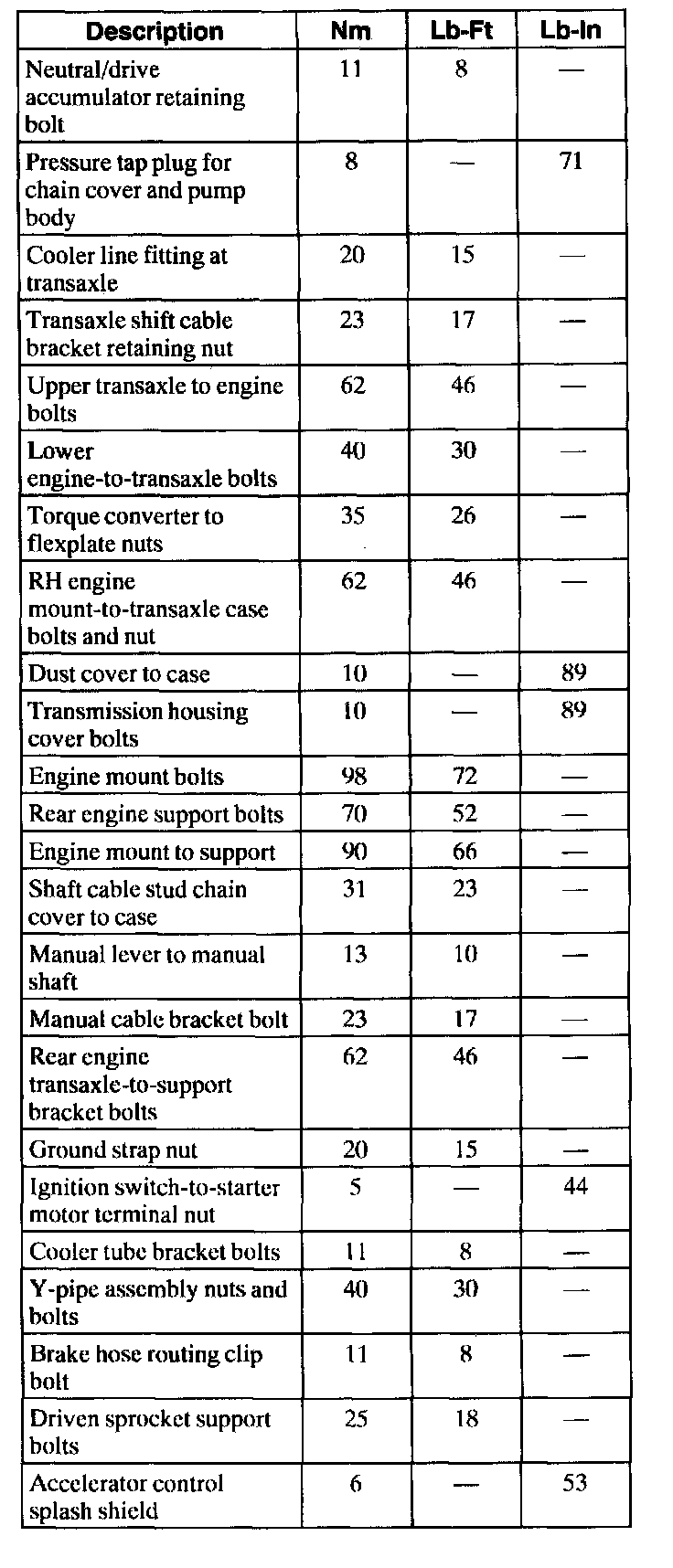

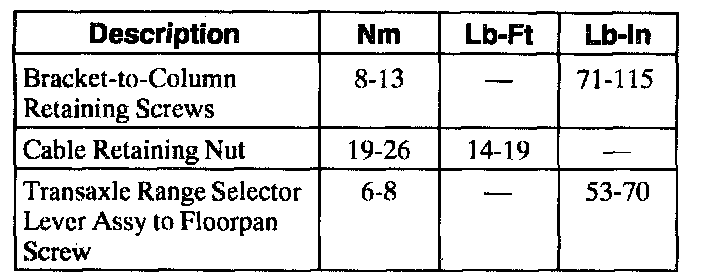

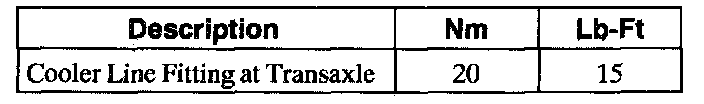

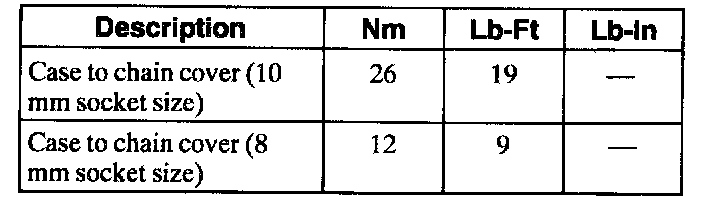

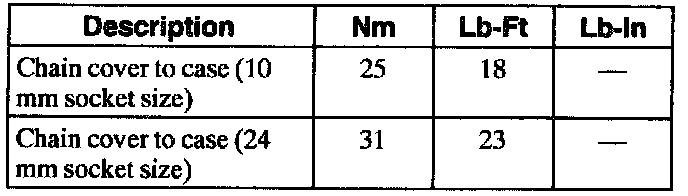

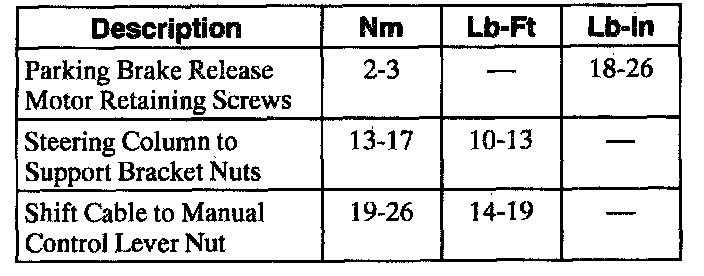

Band and Clutch Application Chart Shift Solenoid Operation Chart Torque SpecificationsAutomatic Transaxle/Transmission External Controls Torque Specifications Flex Plate Torque and Tightening Sequence
