Drive Belt: Service and Repair

Accessory Drive Belt

Removal
1. Remove the air cleaner outlet tube.

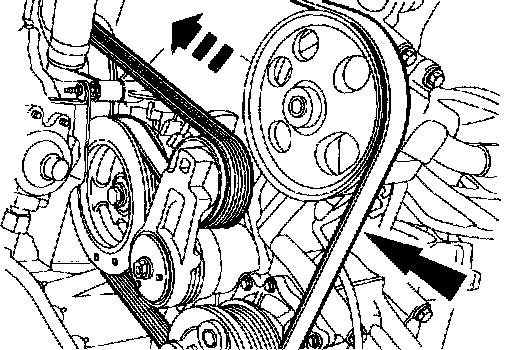

2. Rotate the tensioner counterclockwise and remove the drive belt.

Installation

1. CAUTION: incorrect drive belt installation will cause premature drive belt failure.

NOTE: Make sure the drive belt is correctly installed on each pulley.

To install, reverse the removal procedure.
- Refer to component locations for correct drive belt routine.
