Air Injection Pump: Service and Repair
REMOVAL 1.
Raise and support the vehicle.
2.
Remove the inner fender splash shield.
3.
Disconnect the electrical connectors and separate the wiring from the secondary air pump.
4.

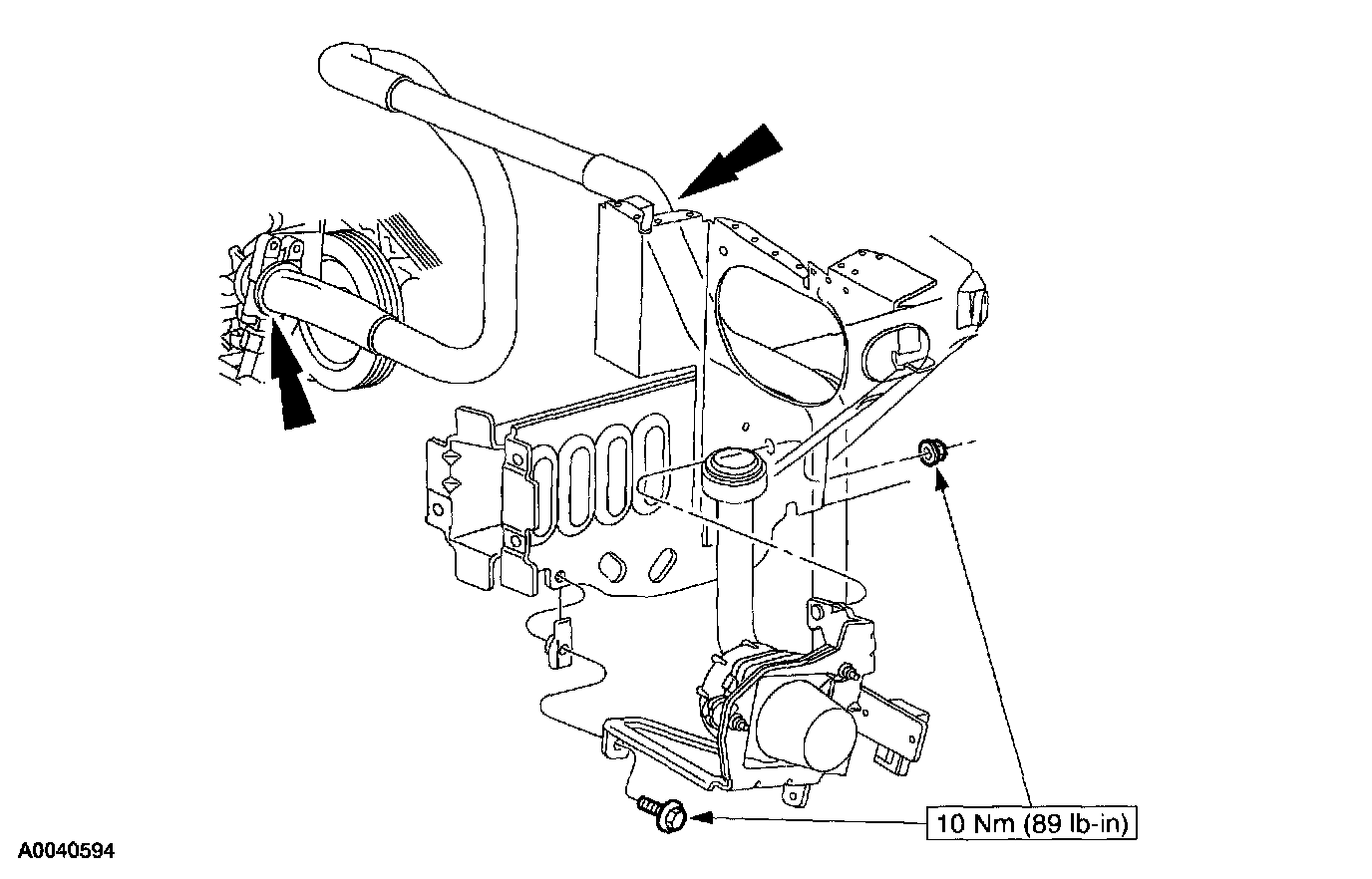

Remove the secondary air pump.
^
Disconnect and remove the pump-to-valve air tube.
^
Remove the bolt and nut, remove the secondary air pump.
INSTALLATION 1.
To install, reverse the removal procedure.
