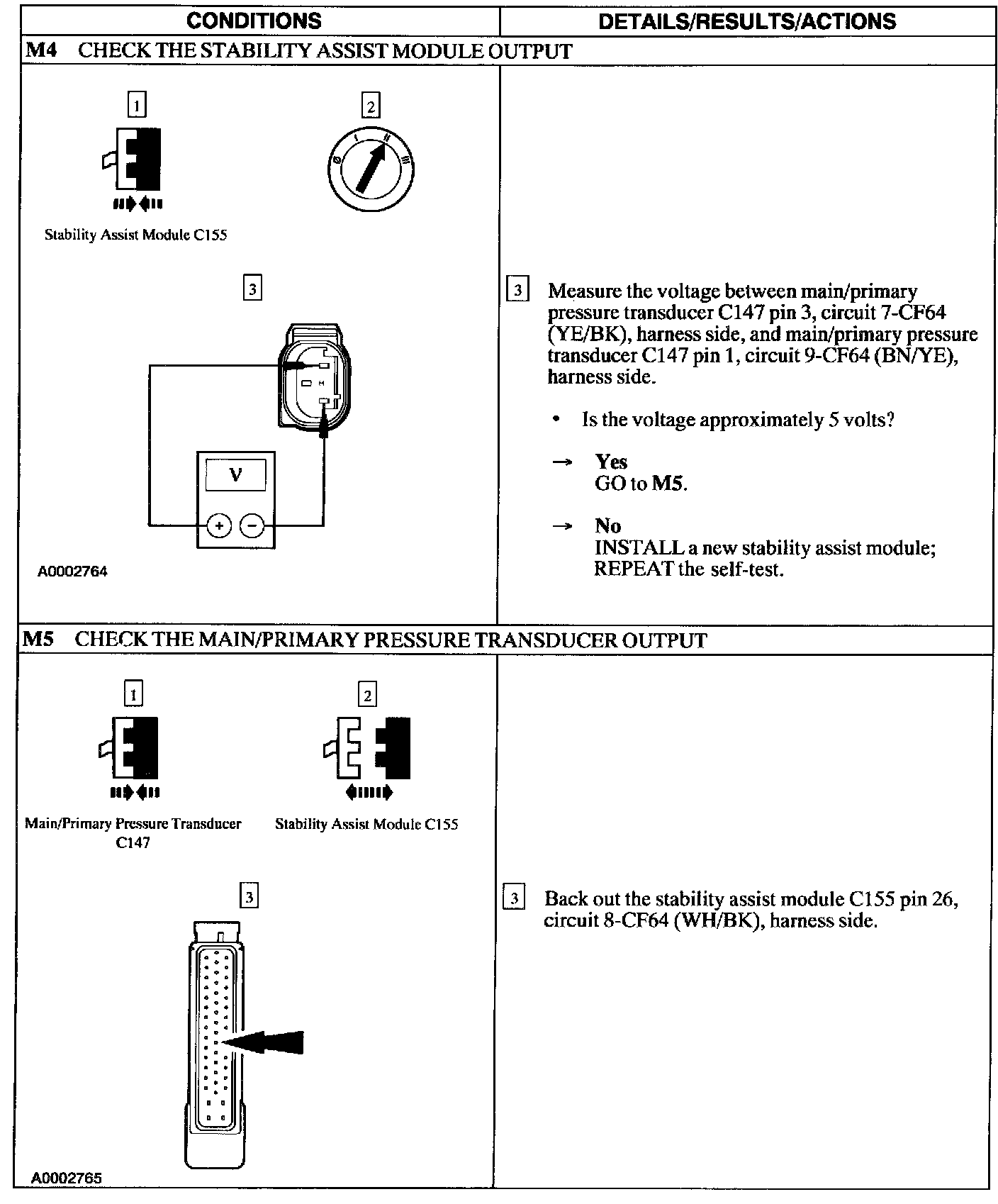

PINPOINT TEST M: DTC C1288 - PRESSURE TRANSDUCER MAIN/PRIMARY INPUT CIRCUIT FAILURE

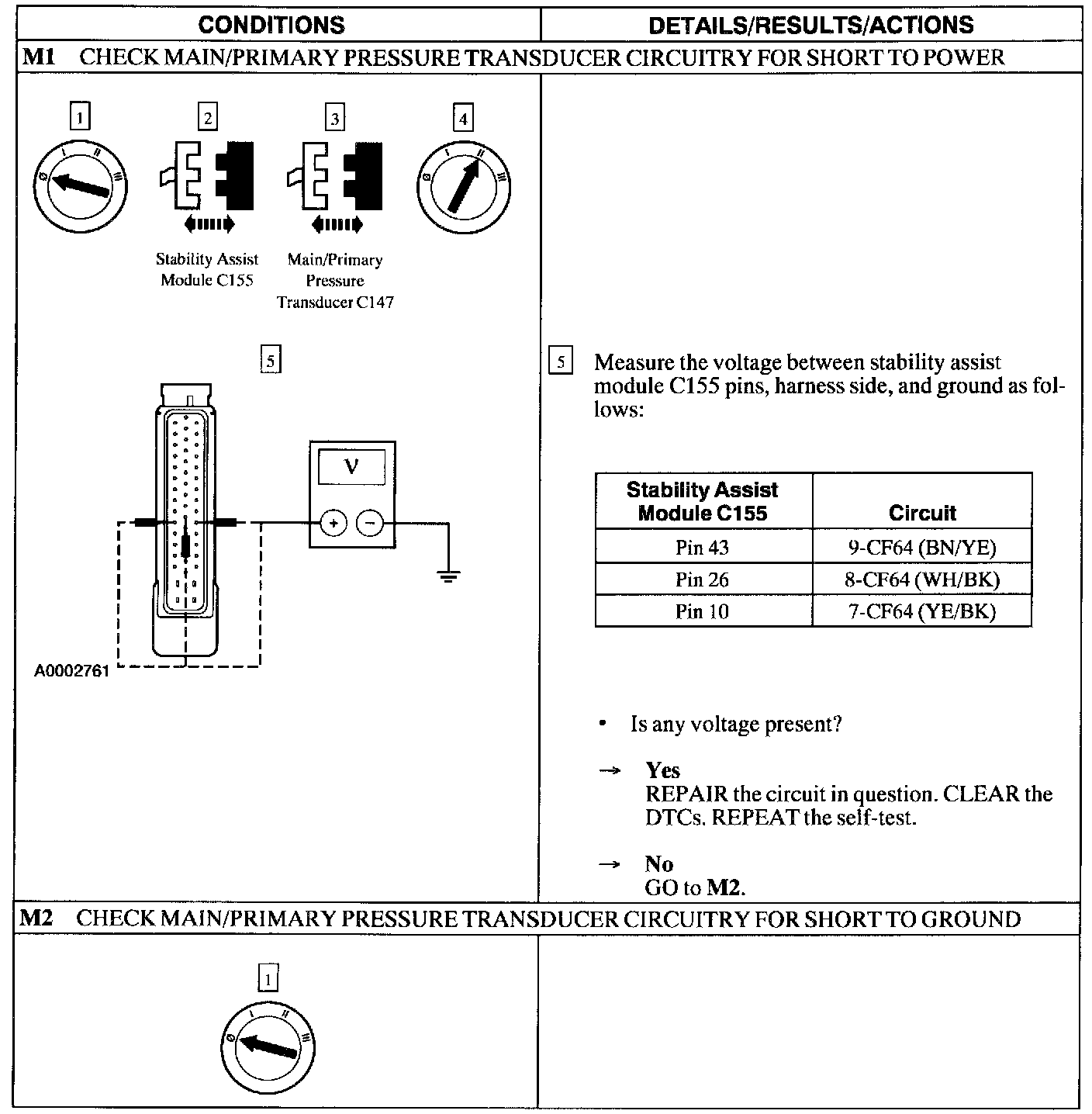

Test M1-M2:

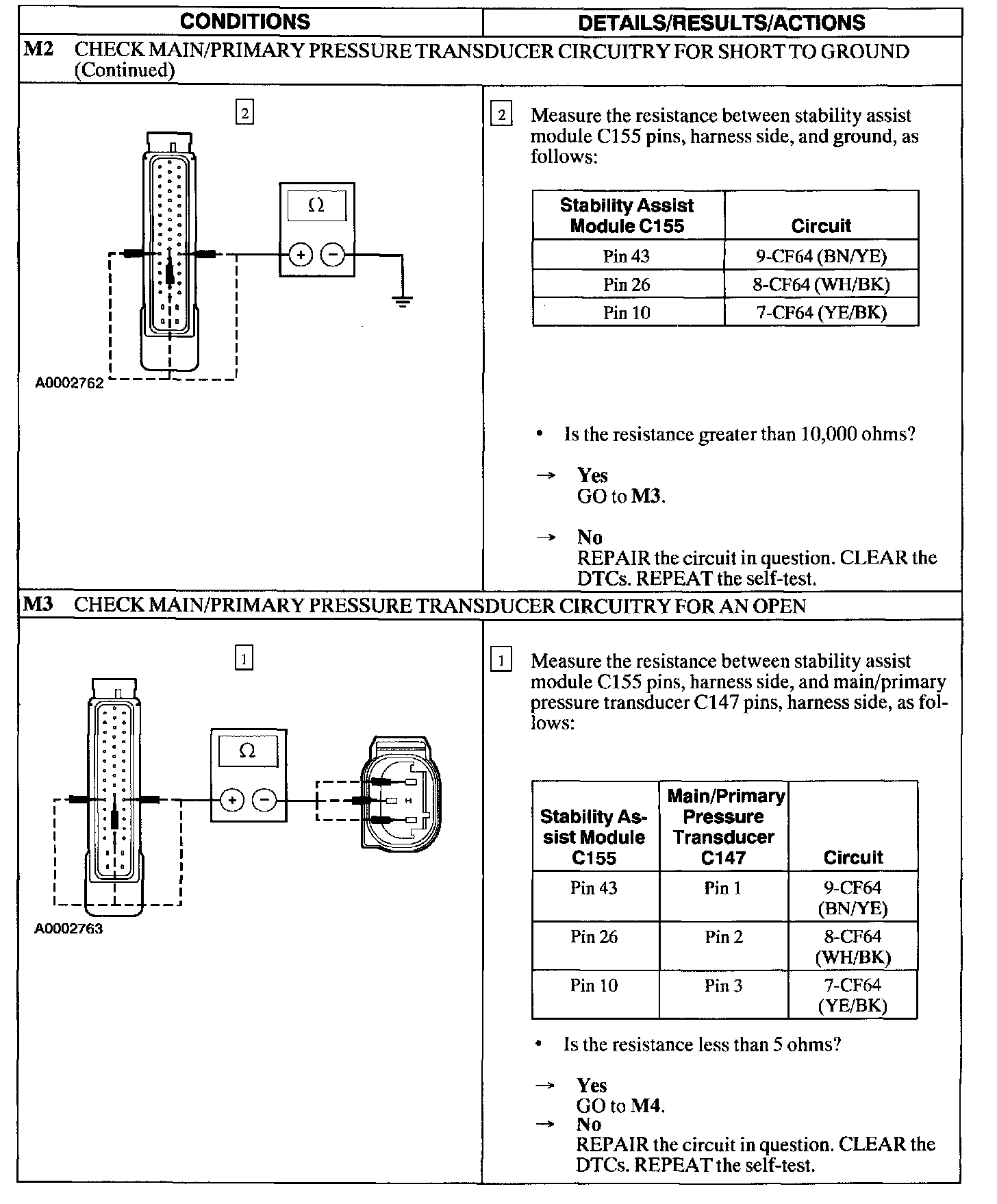

Test M2-M3:

Test M4-M5:

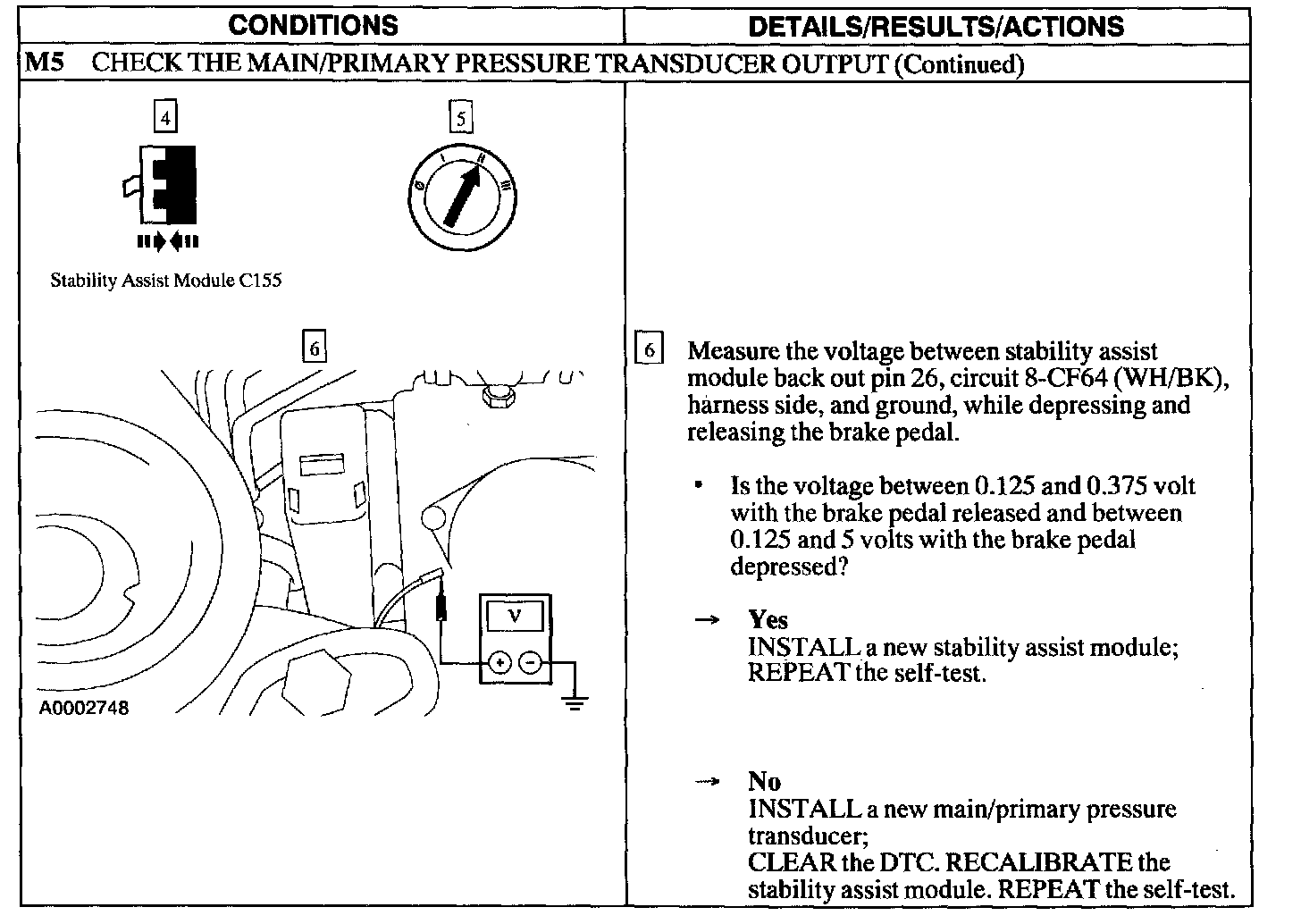

Test M5 Continued:

NOTE: When diagnosing this DTC, the main/primary pressure transducer is the C147 pin 1, Circuit 9-CF64 (BN/YE). The pressure transducer connectors can be connected to either the main or the redundant pressure transducer and still operate correctly, therefore the wire color must be looked at before continuing diagnostics.
