Drive Belt: Service and Repair

Accessory Drive Belt

Removal
1. Remove the air cleaner outlet tube.

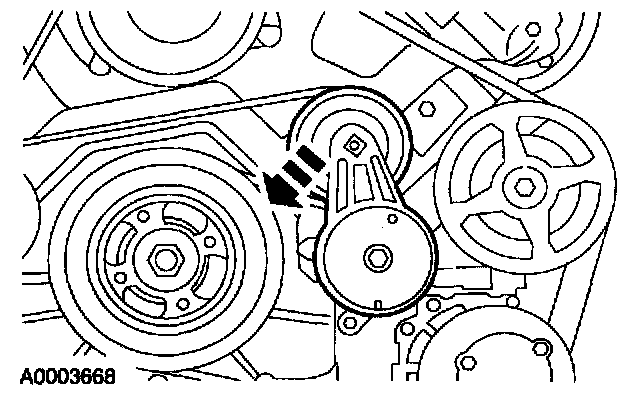

2. Rotate the tensioner counterclockwise and remove the drive belt from the pulley.
3. Remove the belt tensioner.

Installation

1. CAUTION: Incorrect drive belt installation will cause premature drive belt failure.

NOTE: Make sure the drive belt is correctly installed on each pulley.

To install, reverse the removal procedure.
- Refer to component locations for correct drive belt routing.
