Roof Opening Glass

REMOVAL

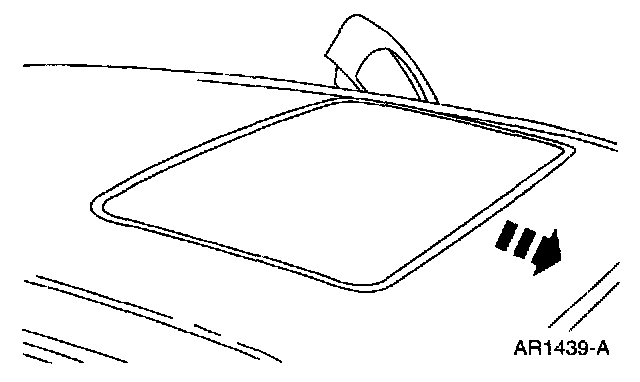

1. Operate the roof opening glass to the flush position.

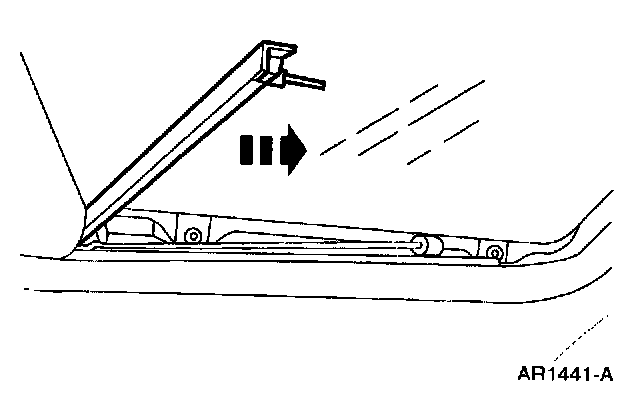

2. Swing the LH and RH sight shields rearward.

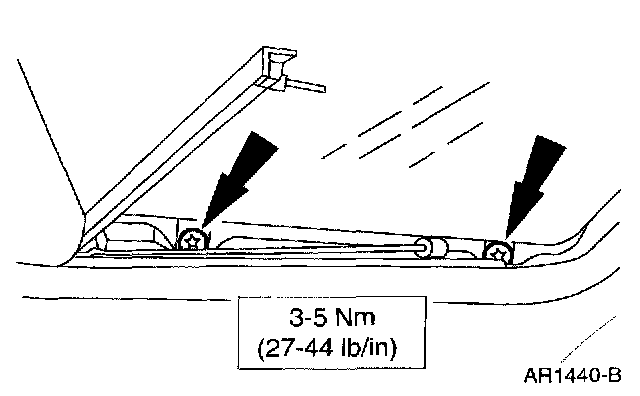

3. Remove the two screws on each side.







4. From outside the vehicle, lift the roof opening glass from the vehicle.

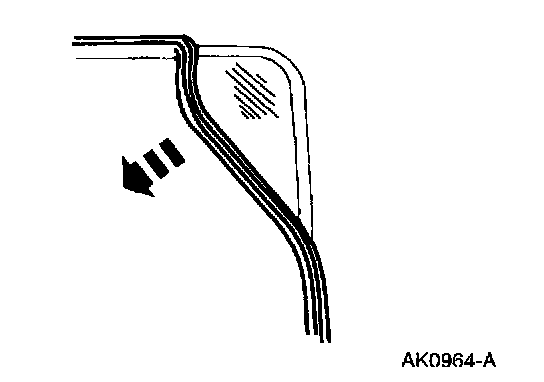

5. Remove the roof opening glass seal.

INSTALLATION







1. Install the roof opening glass seal.
- Position the roof opening glass seal seam in the center of the passenger side of the roof opening glass.
2. Install the roof opening glass in place.







3. Tighten the two screws on each side.

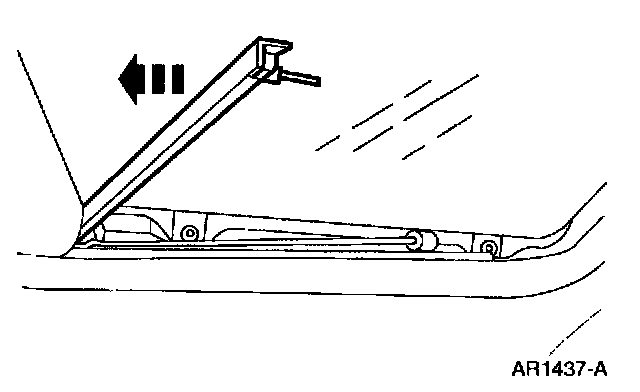

4. Install the LH and the RH sight shields.

NOTE: Make sure to carefully align the sight shield to the snap retainer prior to positioning into place.

5. Adjust the roof opening glass height.
