Home >> Lincoln >> 2002 >> Town Car V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle

Automatic Transmission/Transaxle

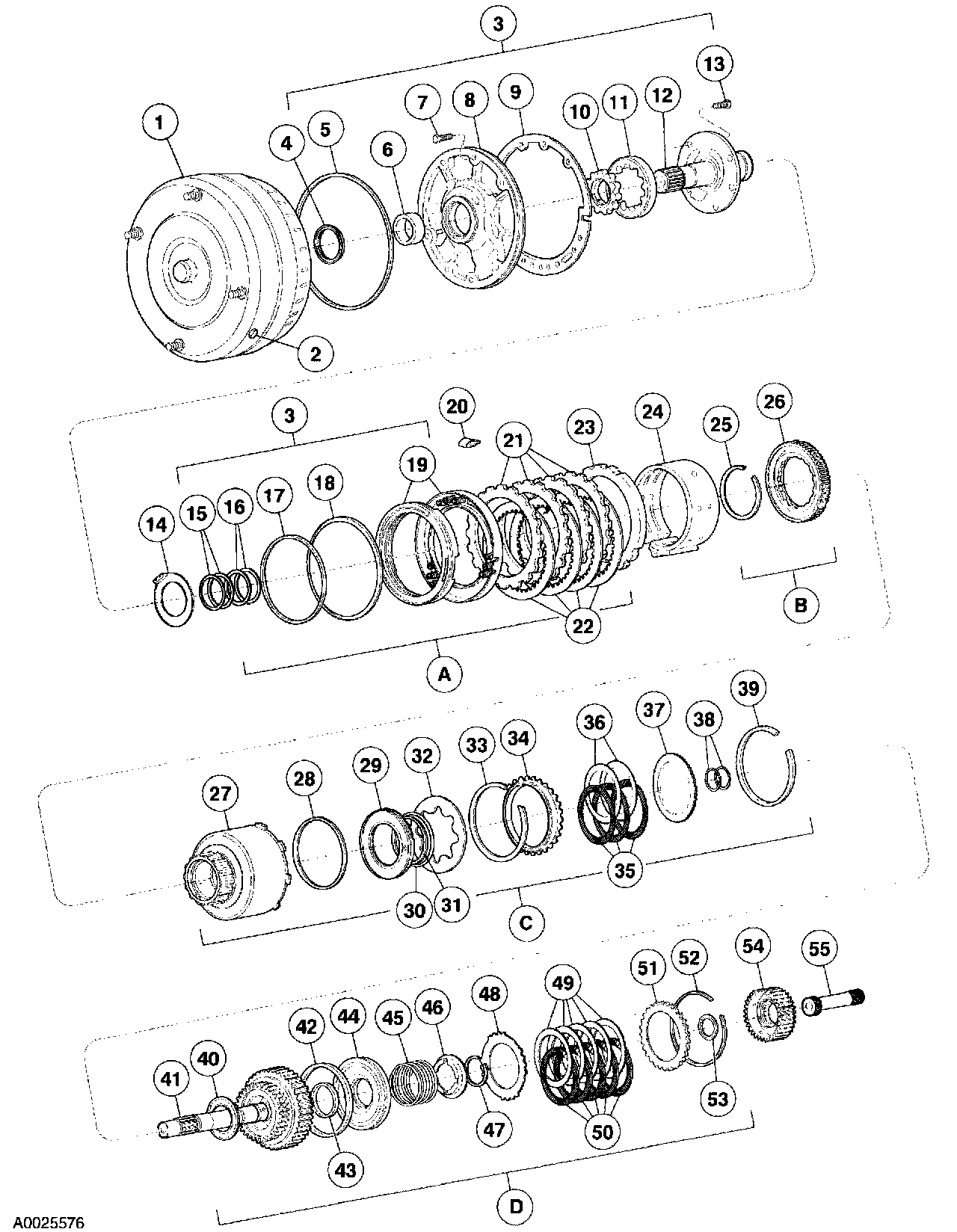

Part 1 of 6





Part 2 of 6





Part 3 of 6





Part 4 of 6





Part 5 of 6





Part 6 of 6
