Disassembly and Assembly of Sub-Assemblies

Piston

Disassembly

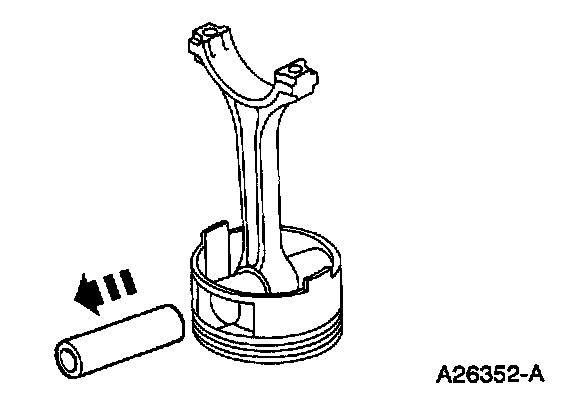

1. Remove the piston pin from the piston and connecting rod assembly.





2. Remove the connecting rod from the piston.
3. Clean and inspect the piston and connecting rod.

Assembly

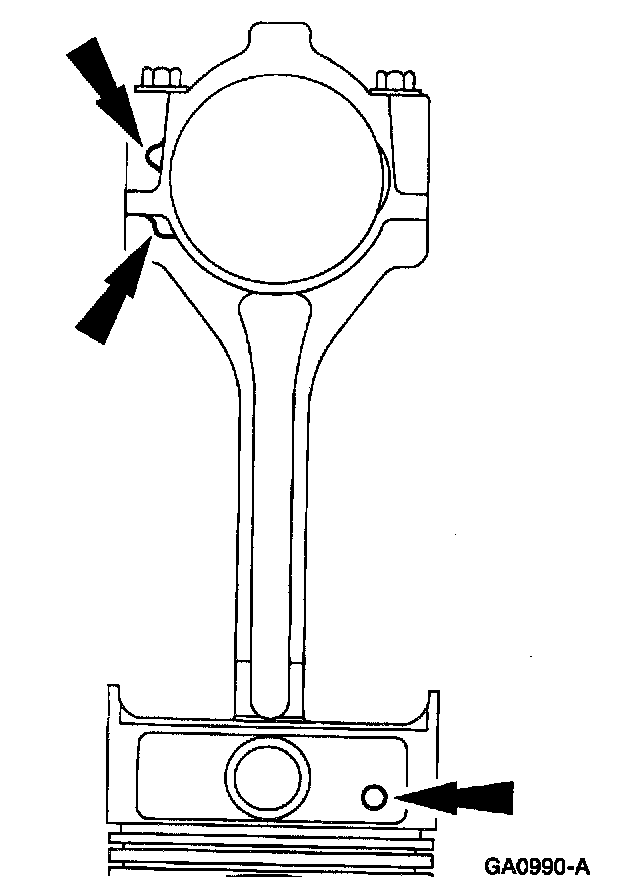

1. NOTE: Connecting rod must be installed into piston with identification markings toward front.

Position the connecting rod in the piston.





2. Lubricate the piston pin and pin bore with clean engine oil.





3. Install the piston pin in the piston and connecting rod assembly.
