Heating and Air Conditioning: Locations

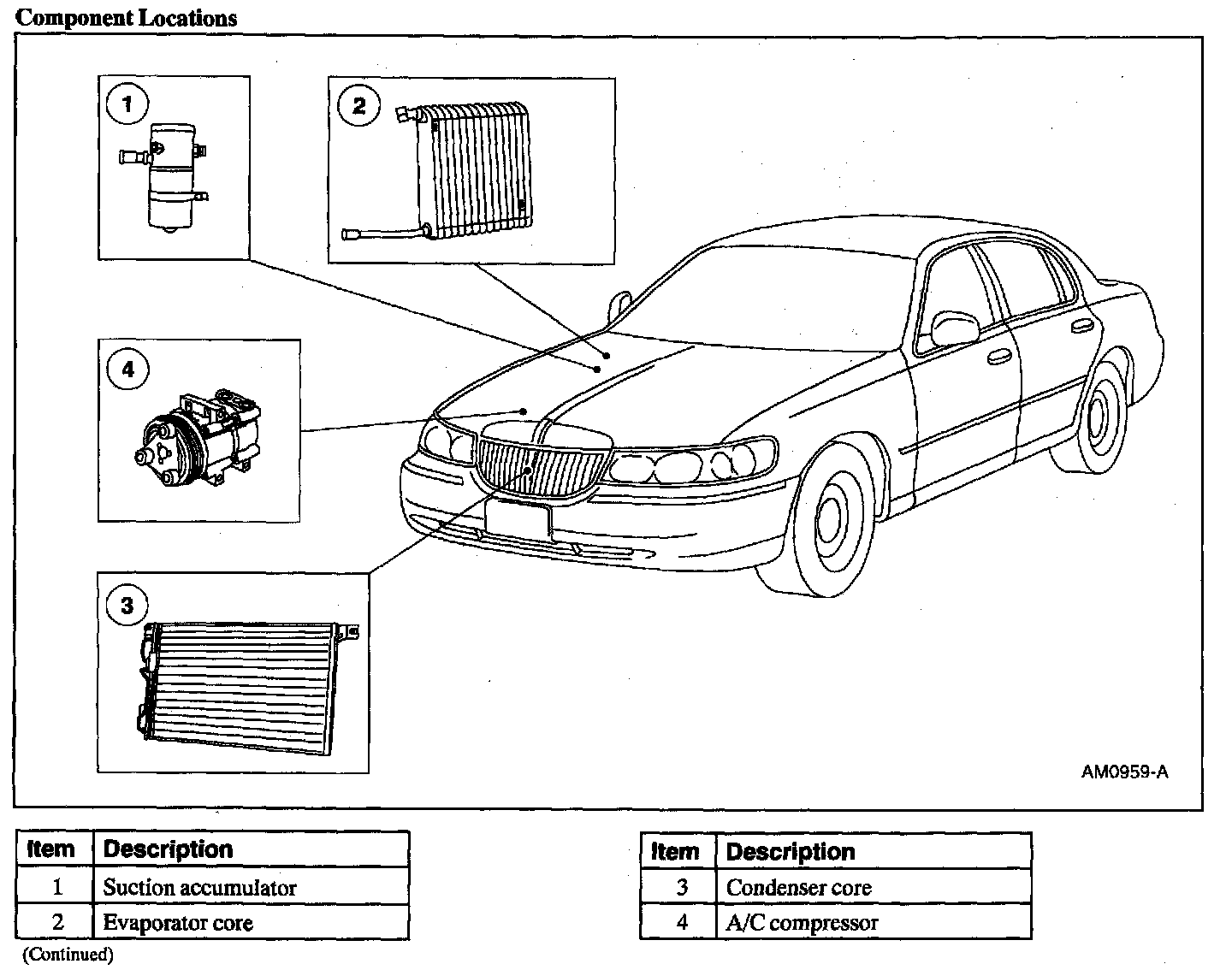

Component Locations, Part 1:






Component Locations, Part 2:

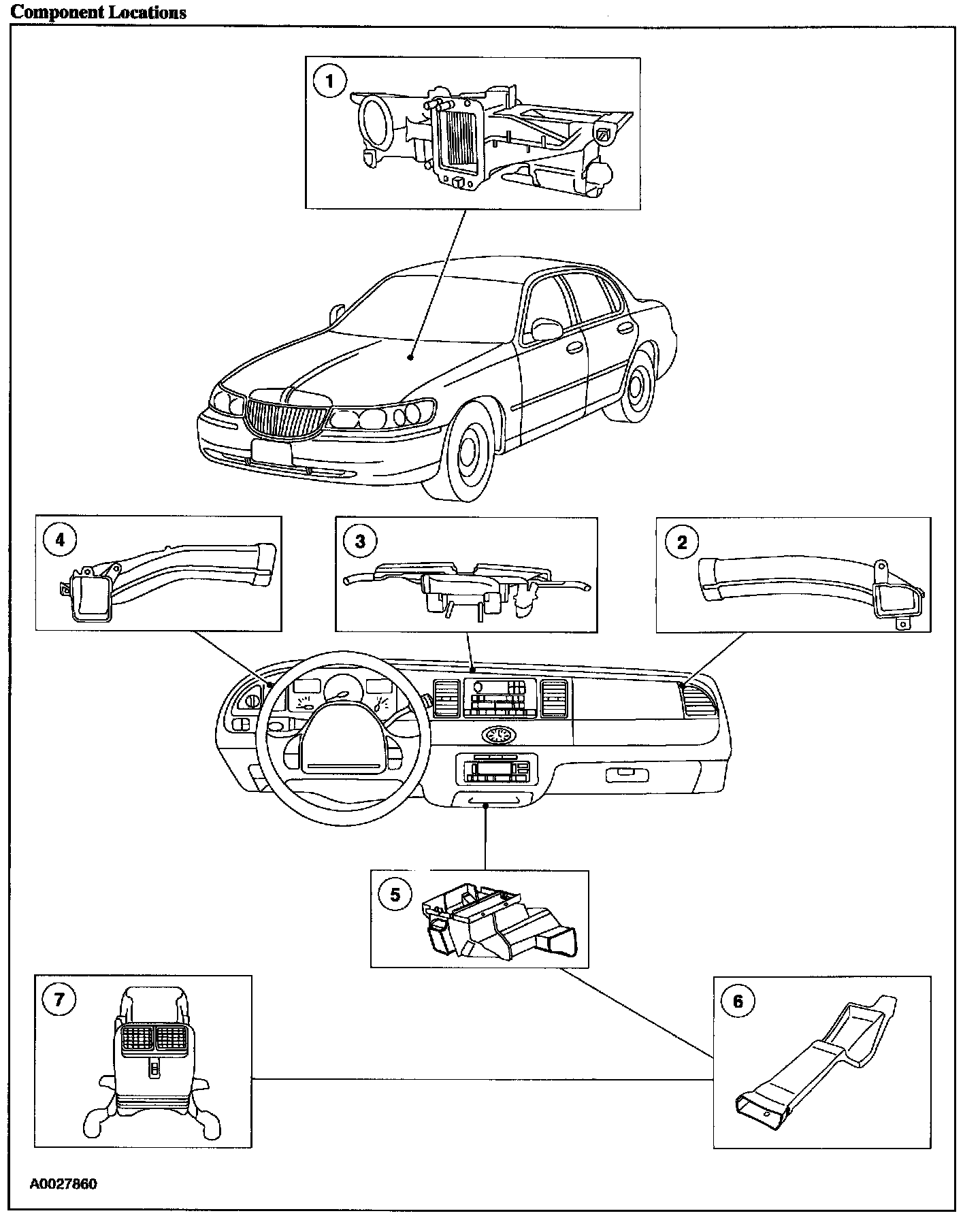

Component Locations:






Component Locations:

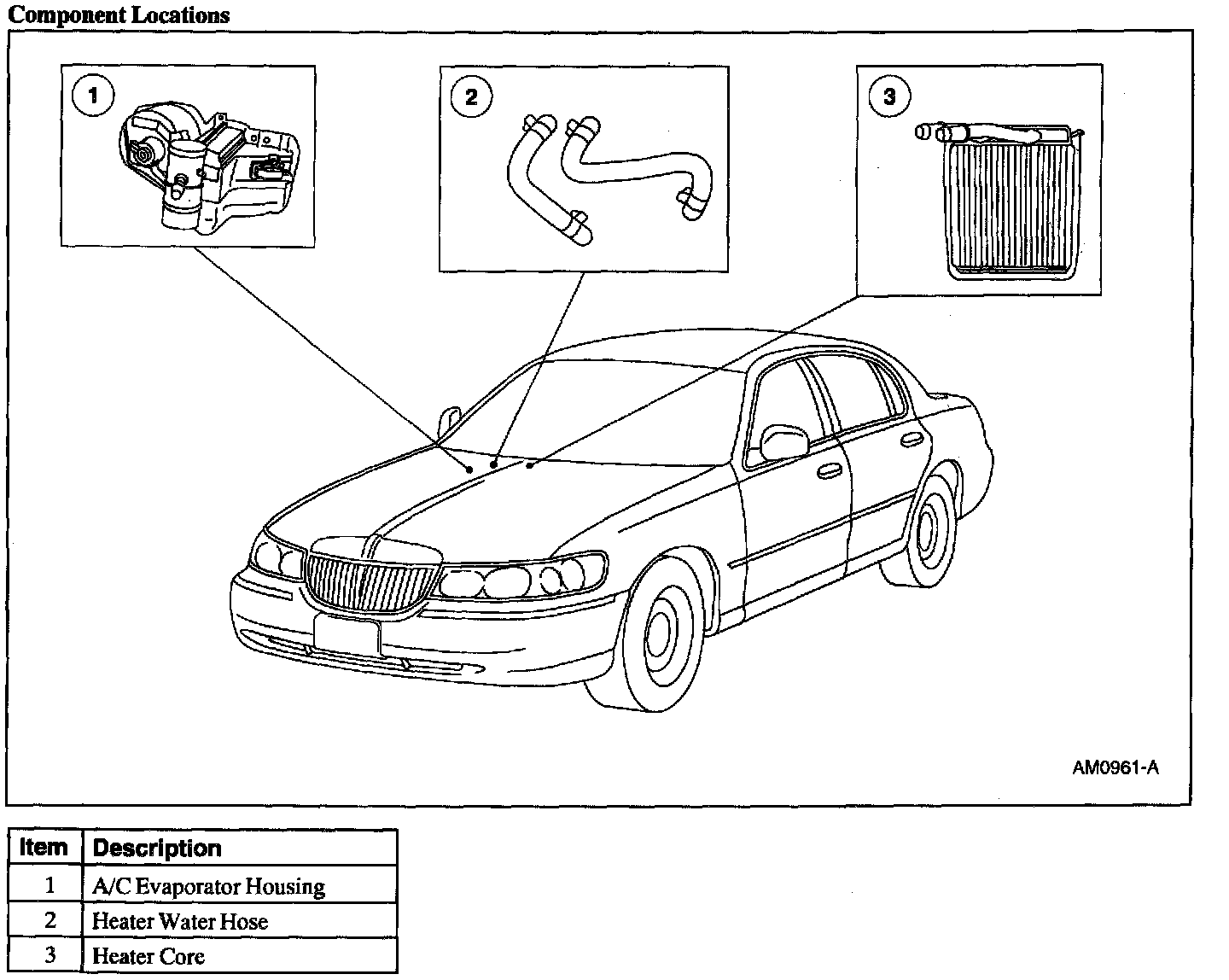

Component Locations, Part 1:






Component Locations, Part 2:
