Message Center Switch

REMOVAL

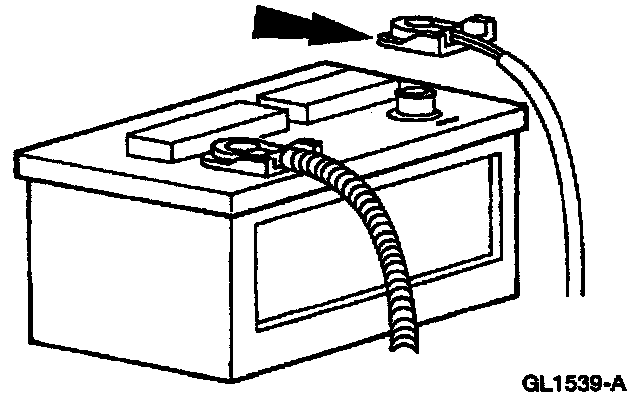

1. Disconnect the battery ground cable.

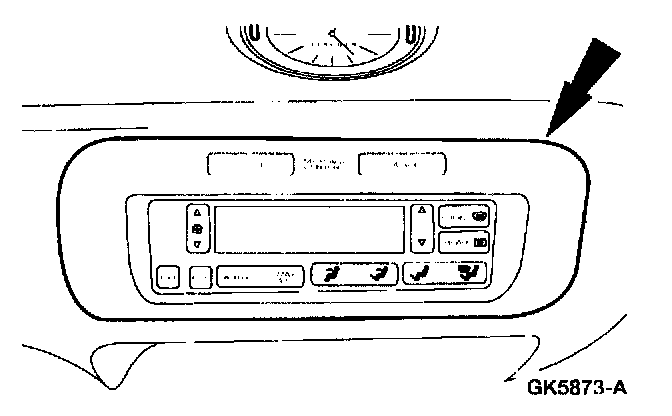

2. Position the climate control head finish panel aside.







3. Remove the climate control head finish panel.

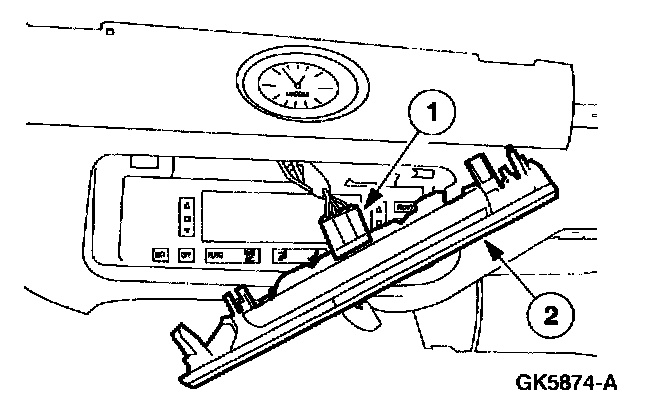

1 Disconnect the message center switch module.
2 Remove the climate control head finish panel.







4. Remove the message center switch module.

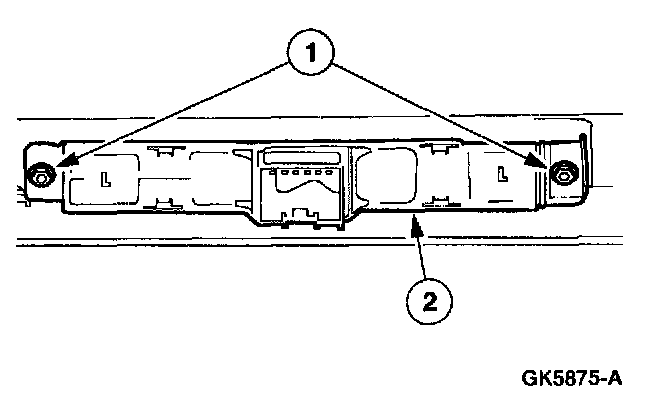

1 Remove the screws.
2 Remove the message center switch module.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.
