Driver Door Module (DDM)

REMOVAL
1. Disconnect the battery ground cable.

CAUTION: Prior to removal of module, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed.

2. Remove the driver door trim panel.

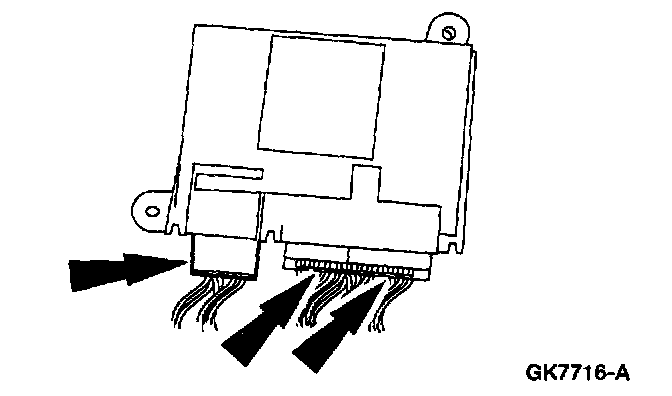

3. Disconnect the electrical connectors from the Driver Door Module (DDM).

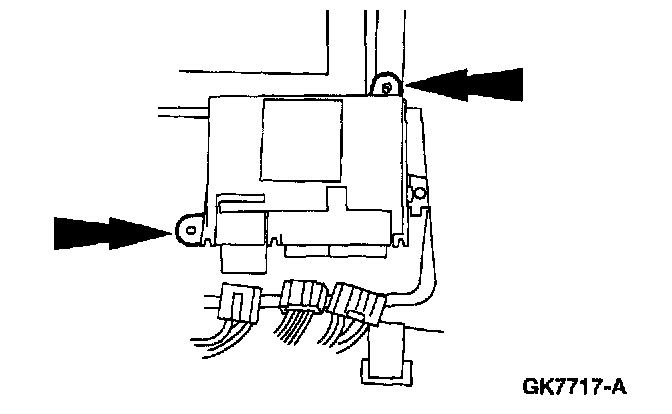

4. Remove the DDM.

INSTALLATION
1. To install, reverse the removal procedure.
