Planetary Gear Support: Assembly and Planetary One-Way Clutch

Planetary Gear Support: Assembly and Planetary One-Way Clutch

Disassembly and Assembly





1. NOTE: Inspect the outer and inner races for scores or damaged surface areas where rollers contact the races. Inspect the rollers and sprigs for excessive wear or damage. Inspect the spring and cage for bent or damaged spring retainers.

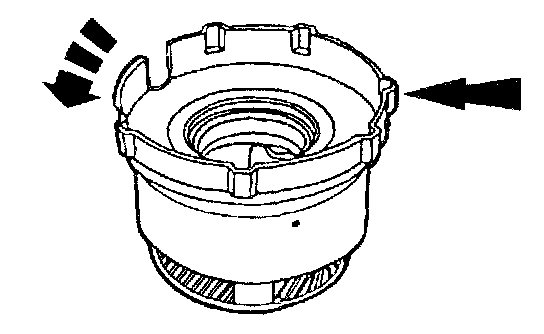

Rotate the center support counterclockwise and lift to remove the planetary gear support.

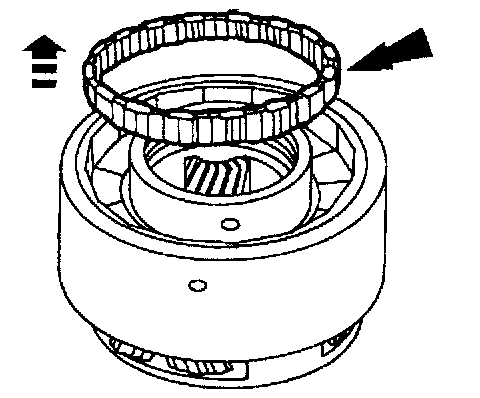

2. Remove the planetary one-way clutch.

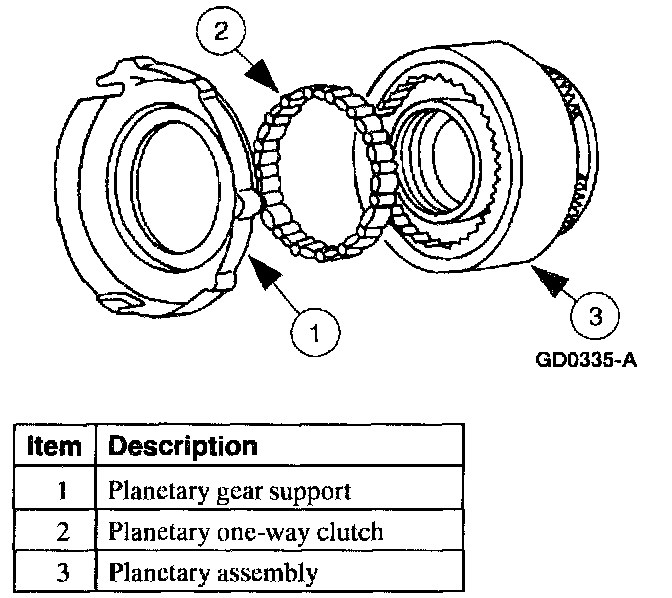

3. To assemble, reverse the disassembly procedure.
