A/C - 0 Ring Replacement

Bulletin No.: 001/94
Issued: 2/28/94
Revised: 4/28/94

Category
U

Applicable Model
All Models

Subject
A/C O-RING REPLACEMENT

Replace the original pages of your bulletin with the revised pages.

APPLICABLE MODELS/VINS All Models

DESCRIPTION

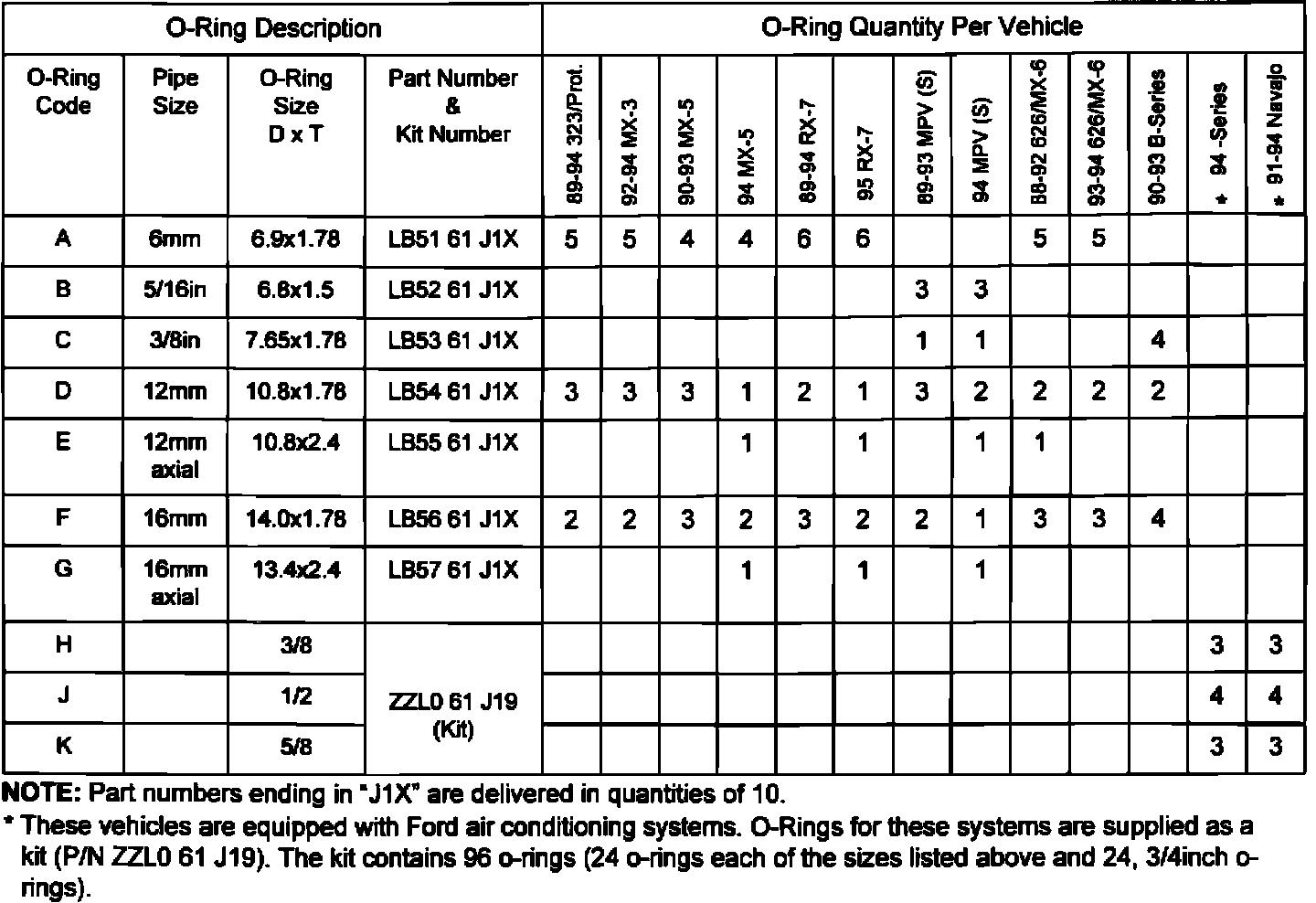

Refer to the illustrations and chart when replacing air conditioning system o-rings. These o-rings are designed for use in both R12 and R134 air conditioning systems.





The illustration indicates where the o-ring is measured to determine diameter and thickness. Use this information and the chart above to identify the proper part if o-rings are accidentally mixed.
