Fuel Injector - Cleaner Kit for Improved Performance

Bulletin No.: 001/93
Issued: 1/11/93
Revised

Category
F

Applicable Model/s
All EFI Models
(Except DIESEL)

Subject:
FUEL INJECTOR CLEANER

DESCRIPTION

To improve fuel injection performance, Mazda has tested and approved a highly effective FUEL INJECTOR CLEANER. The kit and cleaner is recommended for all Mazda fuel injection systems. Mazda's Fuel Injector Cleaner uses a chemical "reducing agent" rather than the common solvent used in the typical aftermarket cleaners. As a result, in tests against aftermarket competitors, Mazda's cleaner outperformed all others and was the only one to restore the fuel injector's flow rate to the original factory specifications.

Dirty fuel injectors are an increasing common problem. Many cases are due to gasoline deposits such as gum, resin and sulfur. These deposits can cause stalling, difficult starting, rough idle and diminished power.

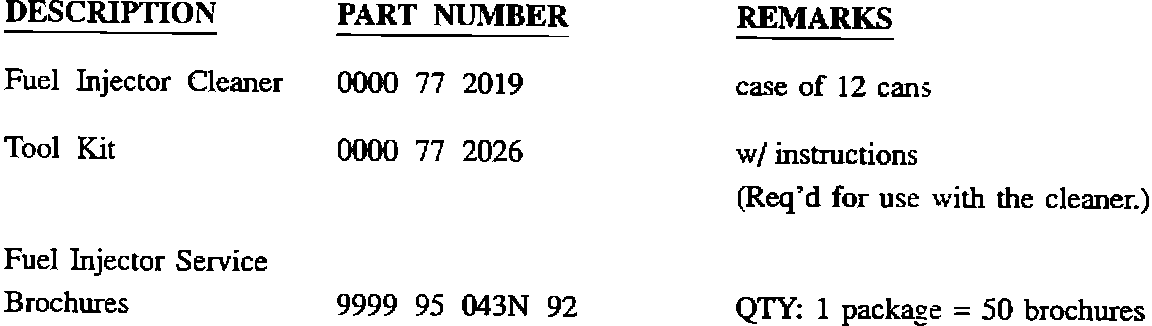

Mazda's Fuel Injector Cleaner and Fuel Injection Tool Kit are available through the Parts Department. Also available is a Fuel Injector Service Brochure that is free of charge from Helm, Inc. (1-800-782-4356). This brochure outlines to your customer the importance and advantages of a clean fuel injection system. Refer to the part numbers when ordering:



We recommend that you offer Mazda's Fuel Injector Cleaner as part of your routine maintenance menu. Mazda's fuel injectors should be cleaned every 15,000 miles.
