Cylinder Head Gasket - Modification

Category 1
Applicable Model/s 1979-82 626/B2000
Subject CYLINDER HEAD GASKET MODIFICATION
Bulletin No. 001/84
Issued 2/15/84
Revised

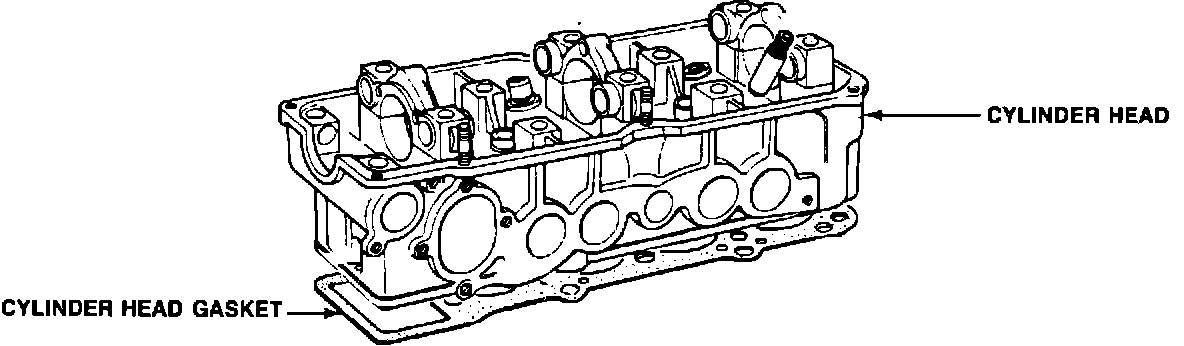

Cylinder Head and Gasket Location:




DESCRIPTION

The material of the cylinder head gasket for the B2000 has been changed since the production date of November, 1983. In addition, this head gasket has been established as a service part for 1979-82 626 and B2000 produced prior to November, 1983.
VIN OF PRODUCTION CHANGE

B2000 Short Bed: JM2UC121 E0821122 November, 1983
Long Bed: JM2UC221 E0809734 November, 1983


PARTS INFORMATION

PART NUMBER

NEW OLD DESCRIPTION INTERCHANGEABILITY

0453 10 271D 0453 10 271C Cylinder Head Gasket NEW to OLD
