Starter -Interchangeability

88mazda05

Category 5
Applicable Model/s 1979-1982 RX-7 M/T
Subject STARTER INTERCHANGEABILITY
Bulletin No. 015/88
Issued 7/5/88
Revised
DESCRIPTION

This Service Bulletin is to explain the interchangeability of 1979-1982 RX-7 (with Manual Transmission) starters.

Although the starter drive in P/N 1757 18 40OR has eight (8) teeth and the drive in P/N N221 18 400R has eleven (11) teeth, P/N N221 18 40OR can be installed in place of P/N 1757 18 40OR starter.

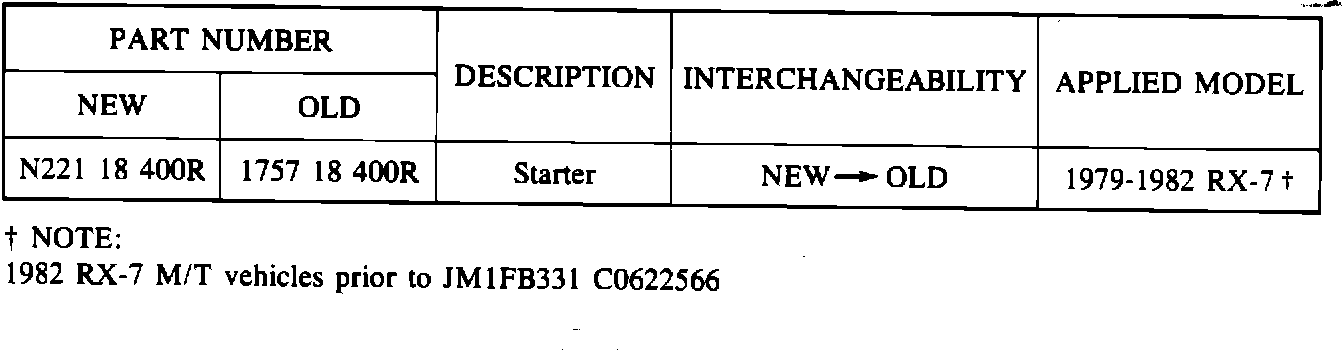

PARTS INFORMATION
