Slow Cut Solenoid Valve

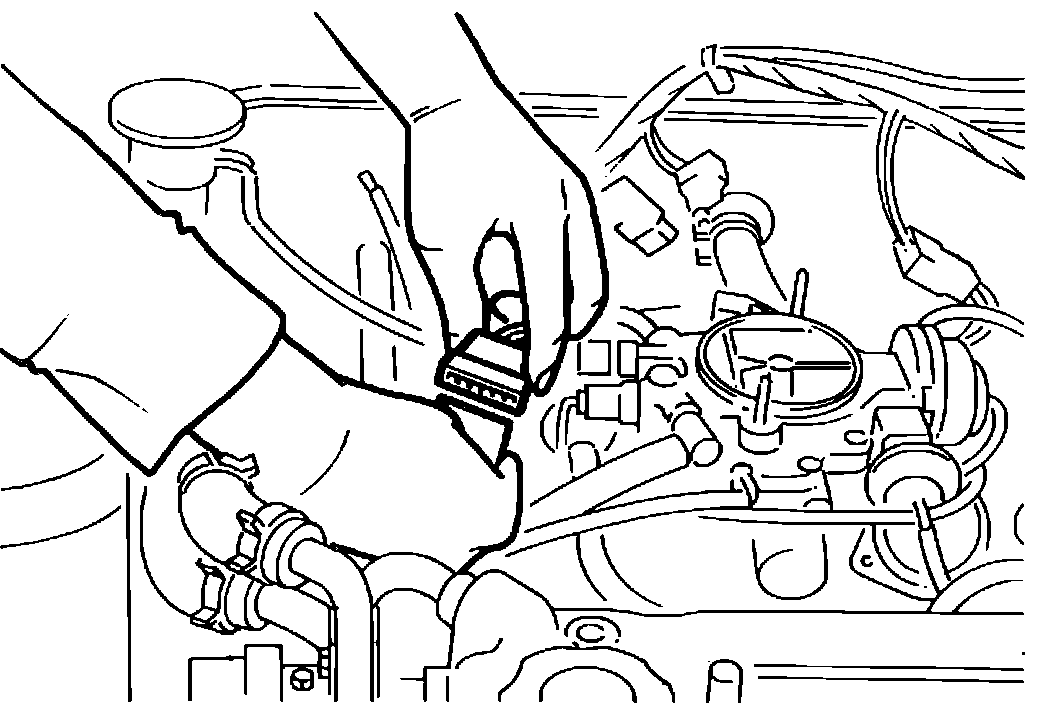

Fig. 11 Disconnecting Slow Cut Solenoid Valve Connector:
1.
Start and operate engine
idle speed.
2.
Disconnect electrical connector from
slow fuel cut solenoid valve Fig. 11.
3.
If engine stops when disconnecting electrical connector from valve, valve is operating properly.
4.
If not, replace
slow fuel cut solenoid valve as required.
