Description

Claims for air conditioner replacement parts will not be accepted if the complete assembly is replaced. Warranty will be paid only for the replacement of the shortcoming part according to the Air

Conditioning Suggested Repair Times.



The following three parts lists and illustrations give the replaceable parts for the evaporator, the compressor and the clutch.

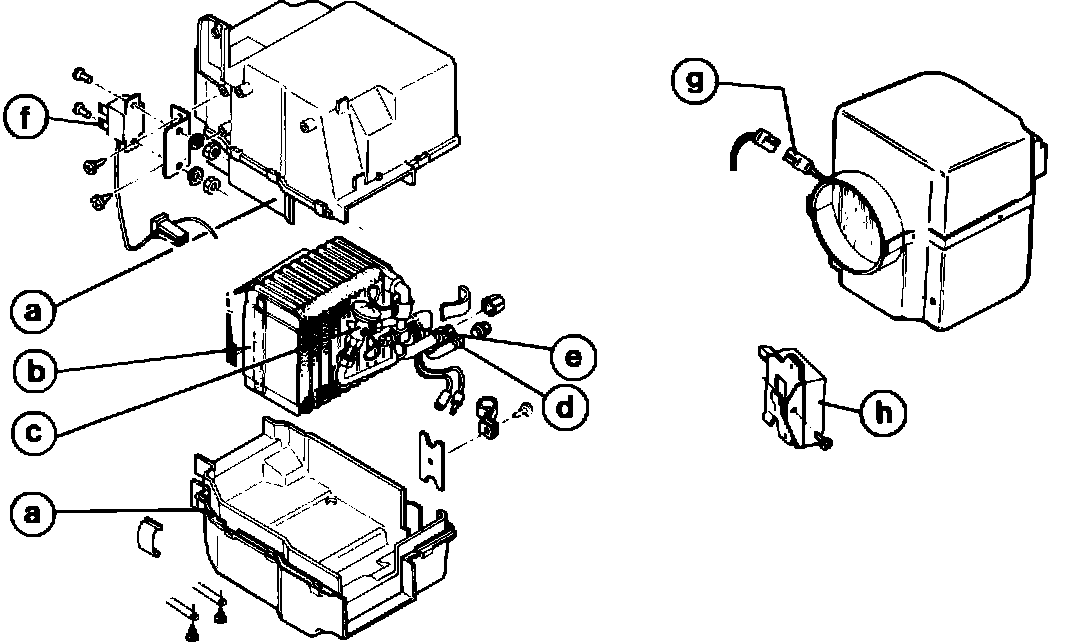

1. Evaporator Parts:

a. Case
b. Coil
c. Expansion Valve
d. Extension Tube Assembly
e. Super Heat Switch
f. Thermostat
g. Thermistor Probe
h. Temperature Control Box
IMPORTANT:
Two types of evaporator cases are used. One type features a case which is held together with clips. The other type uses a case which is glued together. If the case is glued together, evaporator items a thru e are NOT replaceable. The glued-type case must be replaced as an assembly.

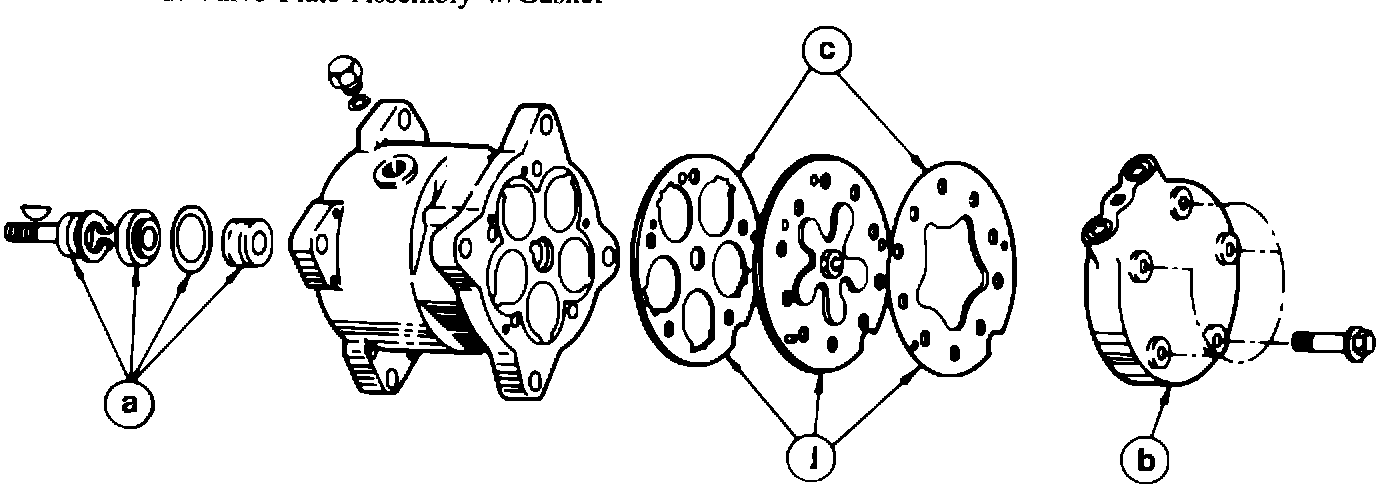

2. Compressor Parts:

a. Shaft Seal Kit
b. Compressor Head
c. Gasket Kit
d. Valve Plate Assembly w/Gasket

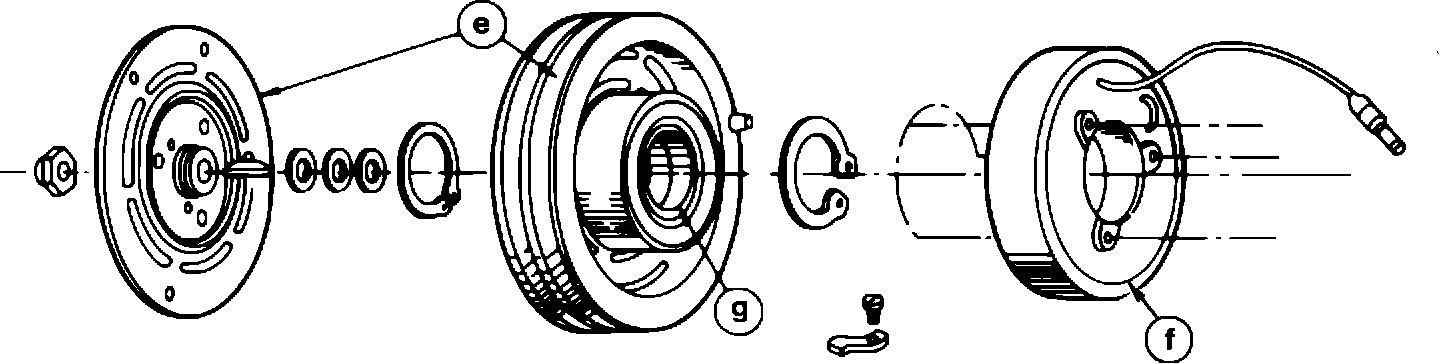

3. Clutch Parts:

e. Front Plate & Rotor (Clutch)
f. Field Coil
g. Bearing
