Lateral Stabilizer Rod: Service and Repair

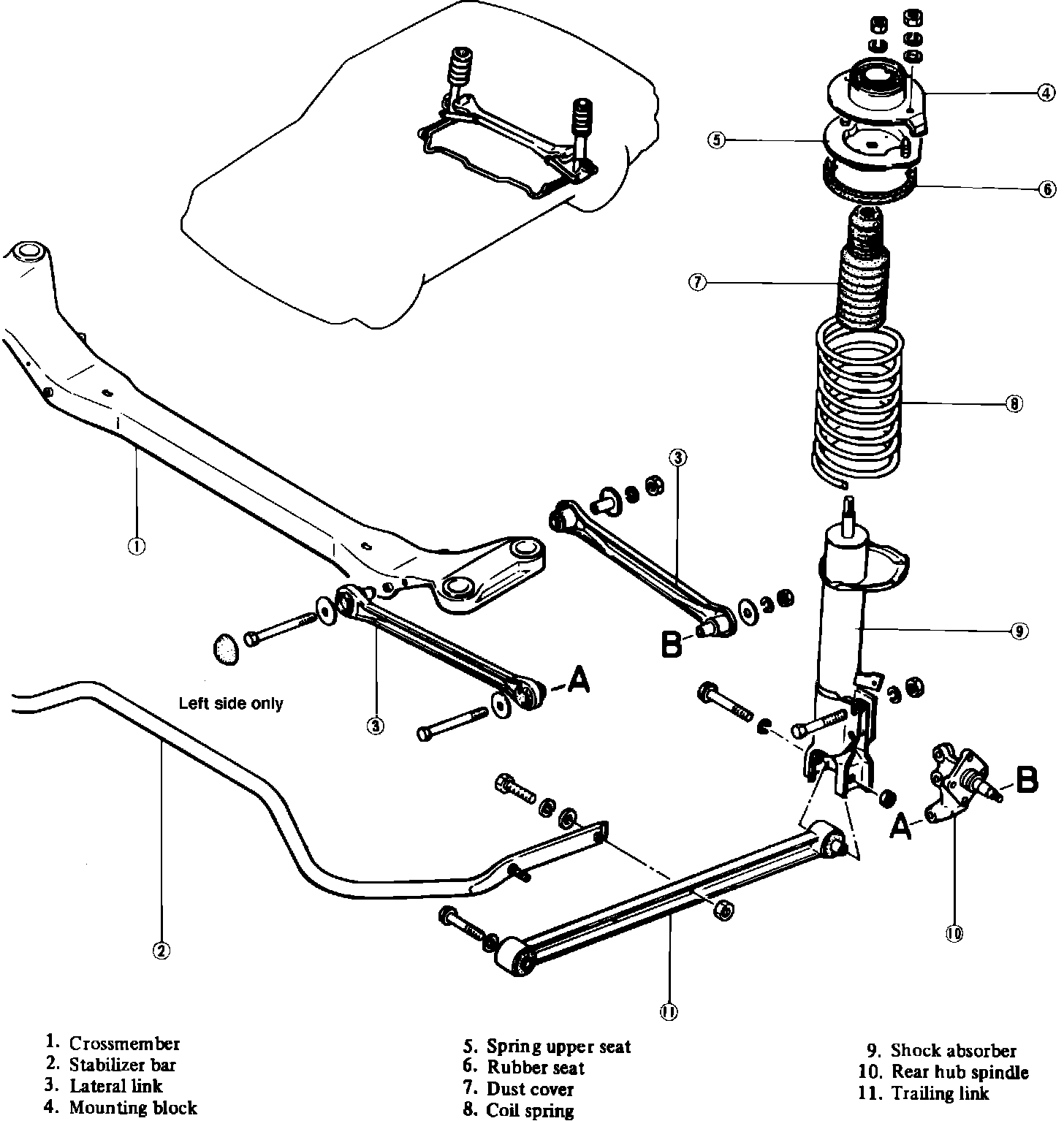

Fig. 10 Rear suspension exploded view. 1984-85 GLC:

1. Raise and support rear of vehicle and remove rear wheels.
2. Remove nut and rear hub spindle from lateral link Fig. 10.
3. Remove mounting bolt and nut from crossmember.
4. Remove lateral link assembly from vehicle. To remove left front lateral link, loosen crossmember mounting nuts, lower cross member and remove lateral link.
5. Reverse procedure to install. Torque attaching bolts 69-86 ft.lbs. (9.5-11.9 mkg).
