Tools - Wheel Hub Puller

86mazda07
Category 40 011/86

4/29/86

626, 323, GLC (FWD Only)

SUBJECT Wheel Hub Puller




DESCRIPTION

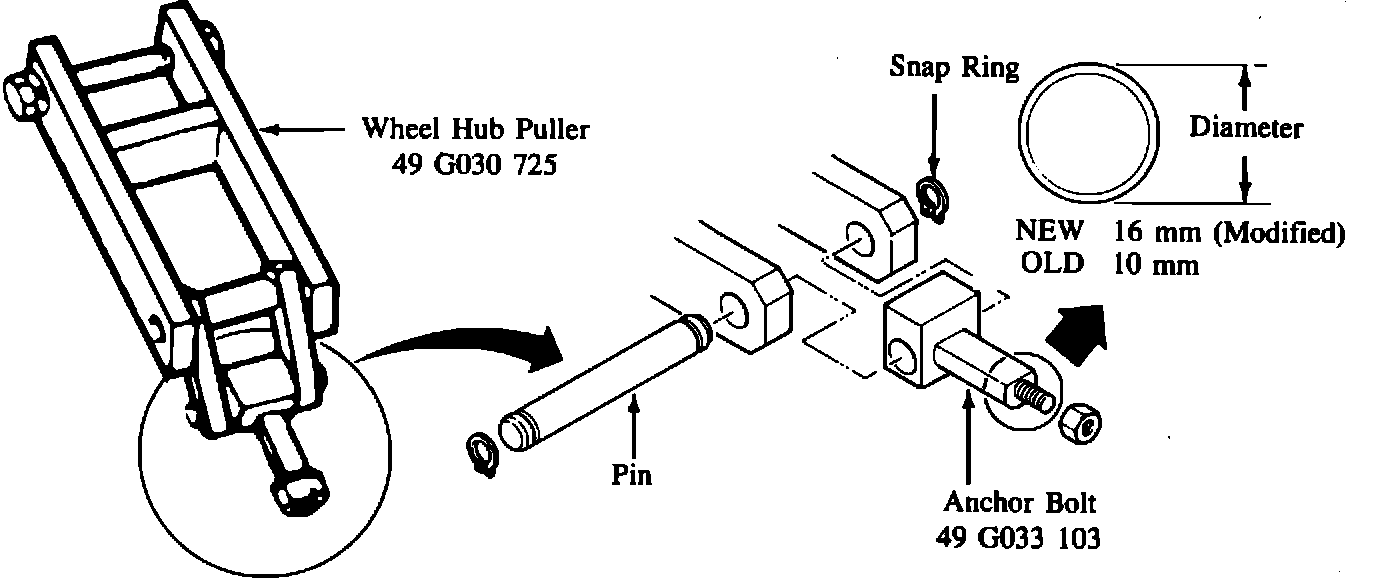

The Anchor Bolt of the Wheel Hub Puller has been strenghtened in order to improve the durability. A part number for the Anchor Bolt has been established and is now available as a service part.
NOTE: An allowable removal torque of 108 N-m (80 ft.lb.) has been established for the removal of the Front Wheel Bearing.



If the Front Wheel Bearing cannot be removed within the allowable removal torque of 108 N-m (80 ft.lb.), replace the Steering Knuckle Assembly. Excessive removal torque may damage the knuckle. ALLOWABLE TIGHTENING TORQUE 108 N-m (80 ft.lb.)
PARTS INFORMATION


PART NUMBER DESCRIPTION

49 G033 103 Anchor Bolt

49 G030 725 Wheel Hub Puller
