Torque Convertor - Modified to Improve Spline Durability: Overview

86mazda02

Category 7
Applicable Model/ 1981-1985 GLC
Subject TORQUE CONVERTOR
Bulletin No. 016/86
Issued 2/20/86
Revised



DESCRIPTION

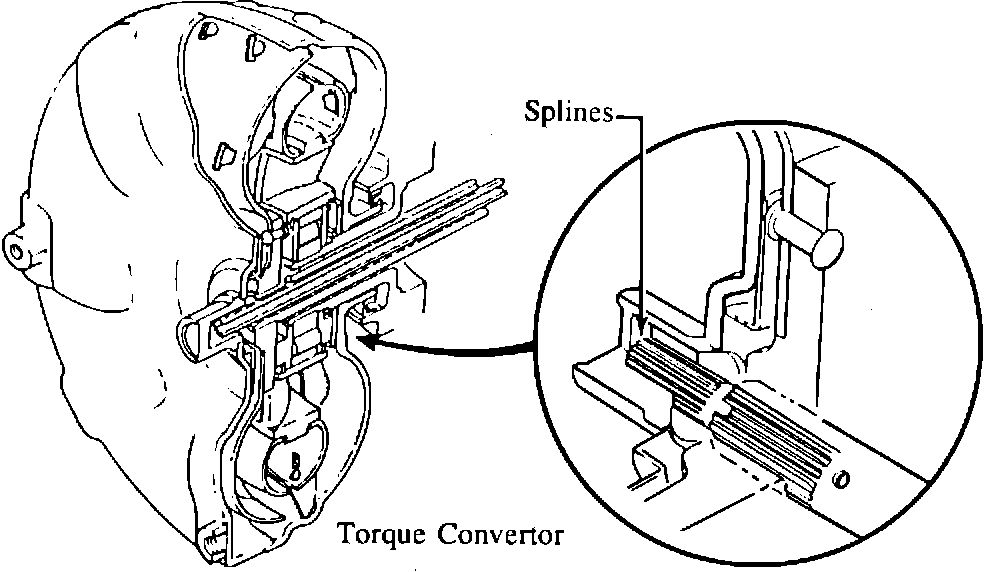

The torque convertor has been modified to improve the durability of the splines inside the convertor since the production of August, 1985. The modified convertor is available as a service part for 1981-1985 GLC vehicles. Refer to Service Bulletin, Category 7, 012/85 for repair information.
PARTS INFORMATION

PART NUMBER

DESCRIPTION INTERCHANGEABILITY

NEW OLD

FT01 19 100A FT01 19 100 Torque Convertor NEW --> OLD
