Idle Speed/Throttle Actuator - Electronic: Service and Repair

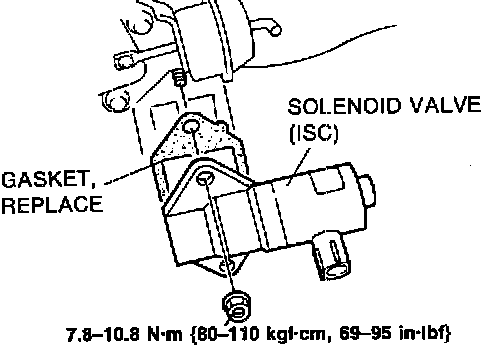

ISC Solenoid Valve R&R:

1. Disconnect negative battery cable.
2. Remove extension manifold.
3. Unplug valve electrical connector and remove valve.
4. Install in reverse order. Use new gasket and torque nuts to 69 - 96 in lb (7.8 - 10.8 Nm).
