Shift Mechanism

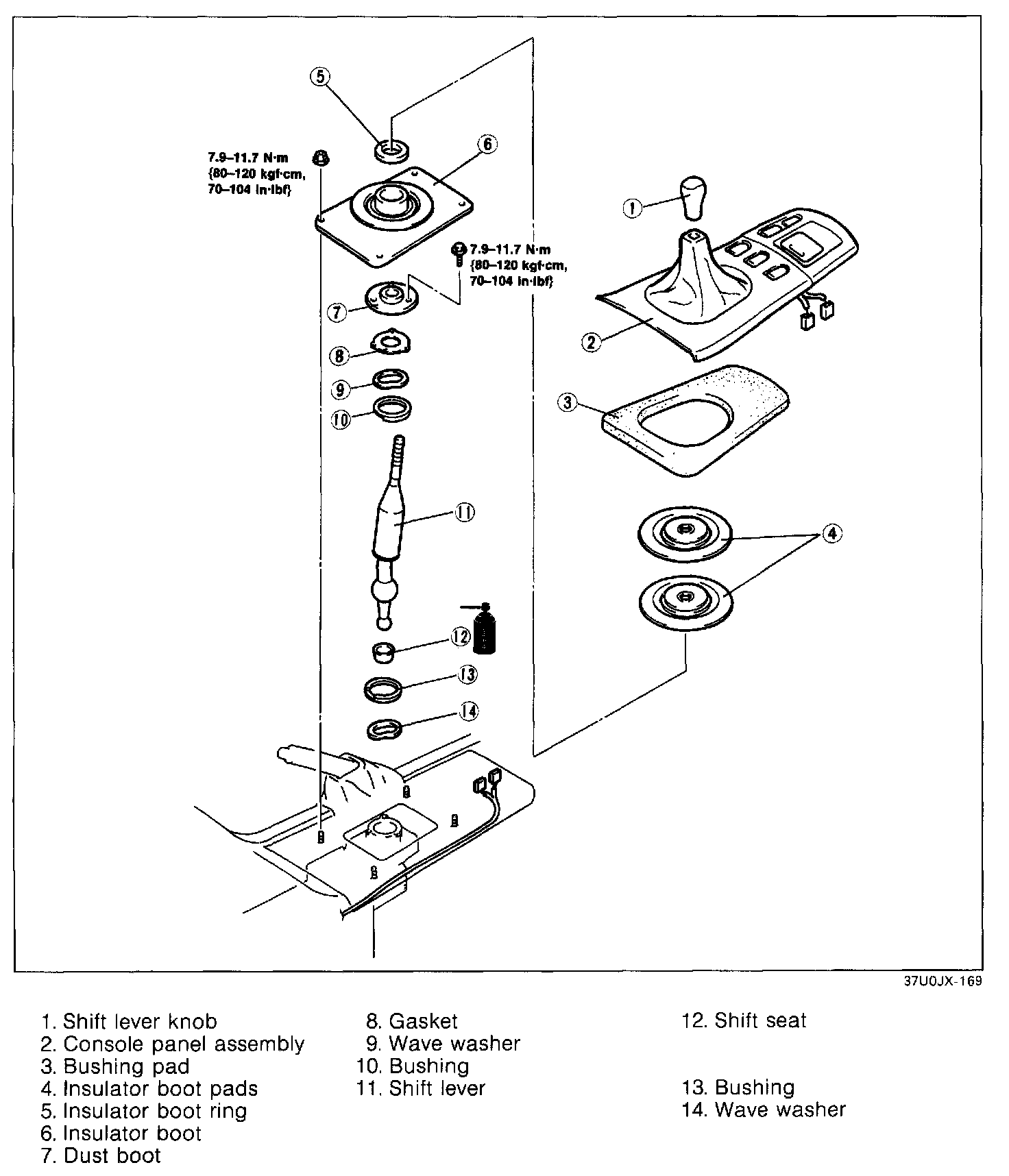

1. Disassemble as shown in the image.
2. Inspect each part, and replace if necessary.
3. Assemble in the reverse order of disassembly.
4. After assembly, pump the clutch pedal and verify that the shift lever moves smoothly.

Assembly Note




Shift seat

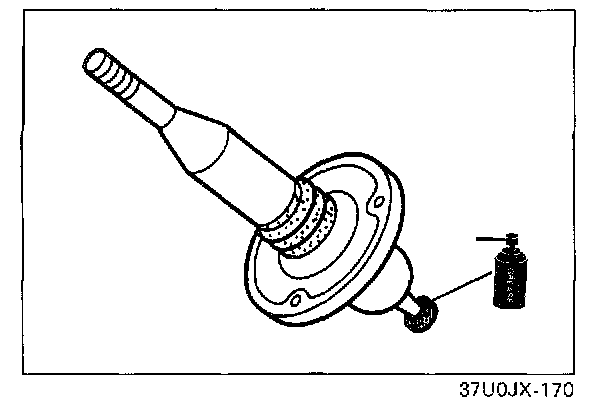

Apply grease to both the inside and outside of the shift seat.




Shift lever

NOTE: Fill the change control case with oil after removing the clutch housing or disassembling the transmission.

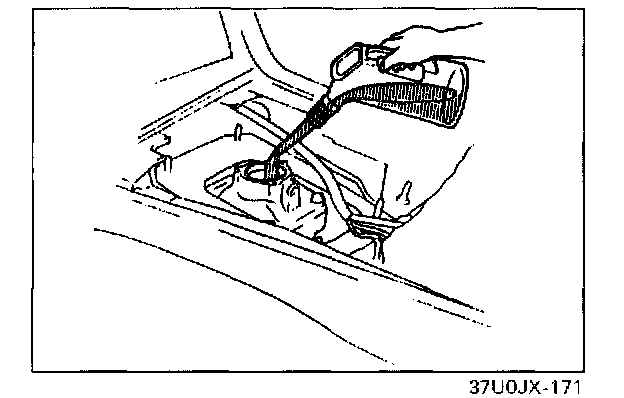

1. Fill the change control case with the specified oil.

Capacity: 80 - 95 cc (4.9 - 5.8 cu in)

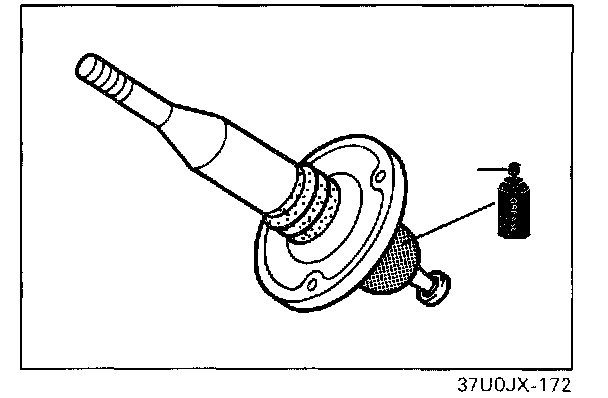

2. Apply grease to the shift lever ball joint.

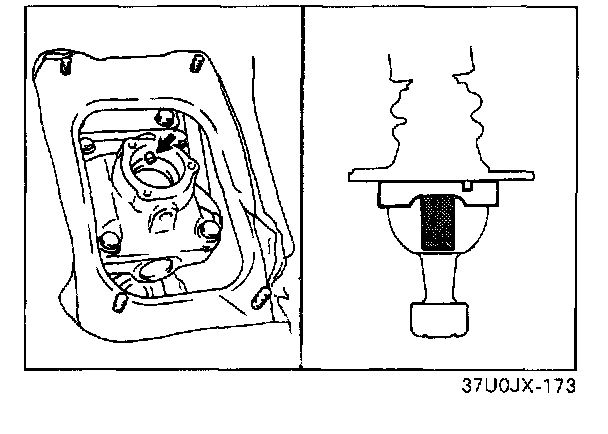

3. Align the control case pin with the slots in the change bushings and the shift lever, and install.
