Overhaul
DASHBOARD DISASSEMBLY/ASSEMBLY 1.
Remove the following parts:
1.
Passenger-side air bag module
2.
Ventilator grilles
3.
Center panel unit
4.
LCD unit (vehicles with car-navigation system)
5.
Center box (vehicles without car-navigation system)
6.
Climate control unit
2.

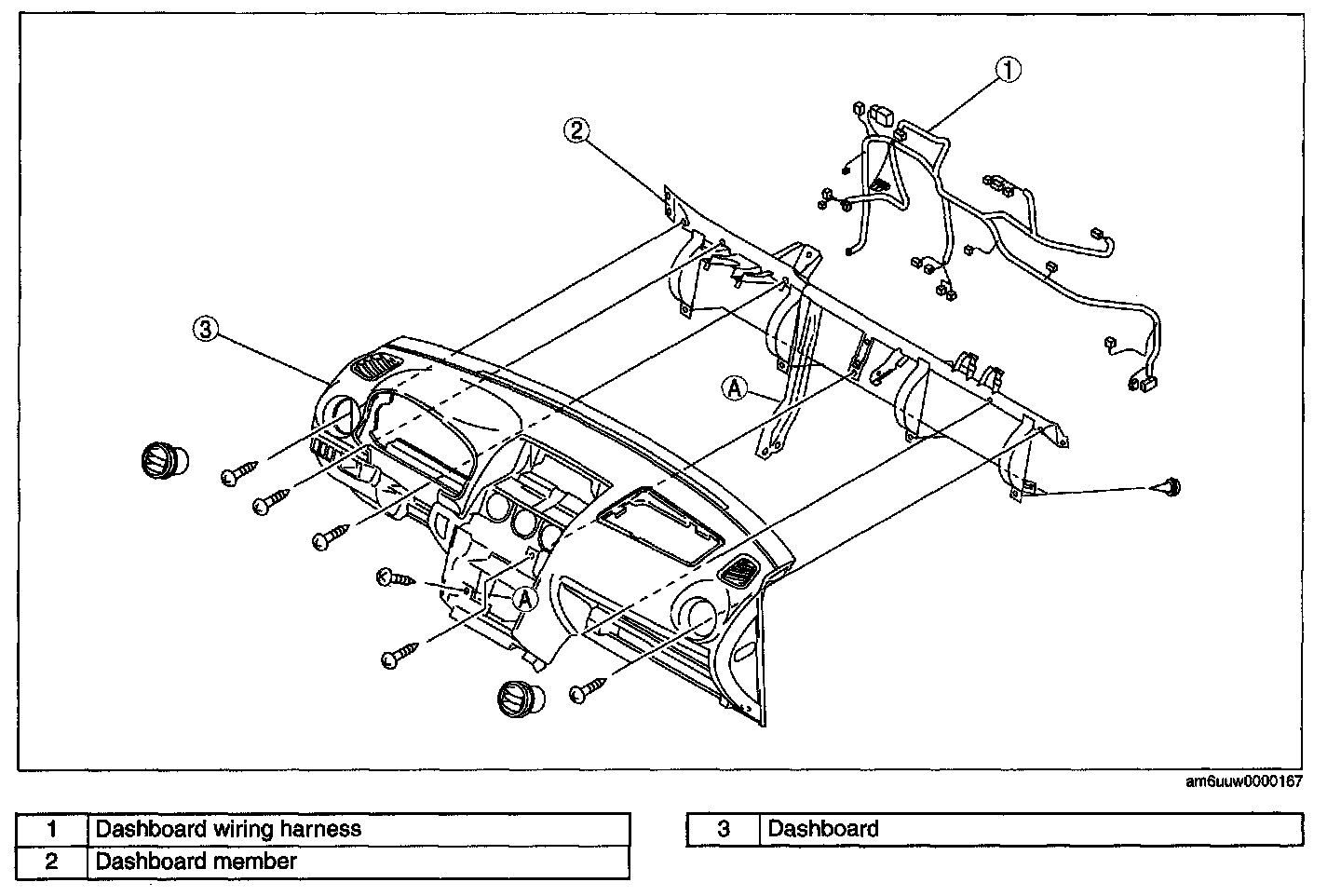

Disassemble in the order indicated in the table.
3.
Assemble in the reverse order of disassembly.
