Sunroof / Moonroof Relay: Testing and Inspection

SUNROOF RELAY INSPECTION

NOTE: Sunroof relay is built in the sunroof motor.

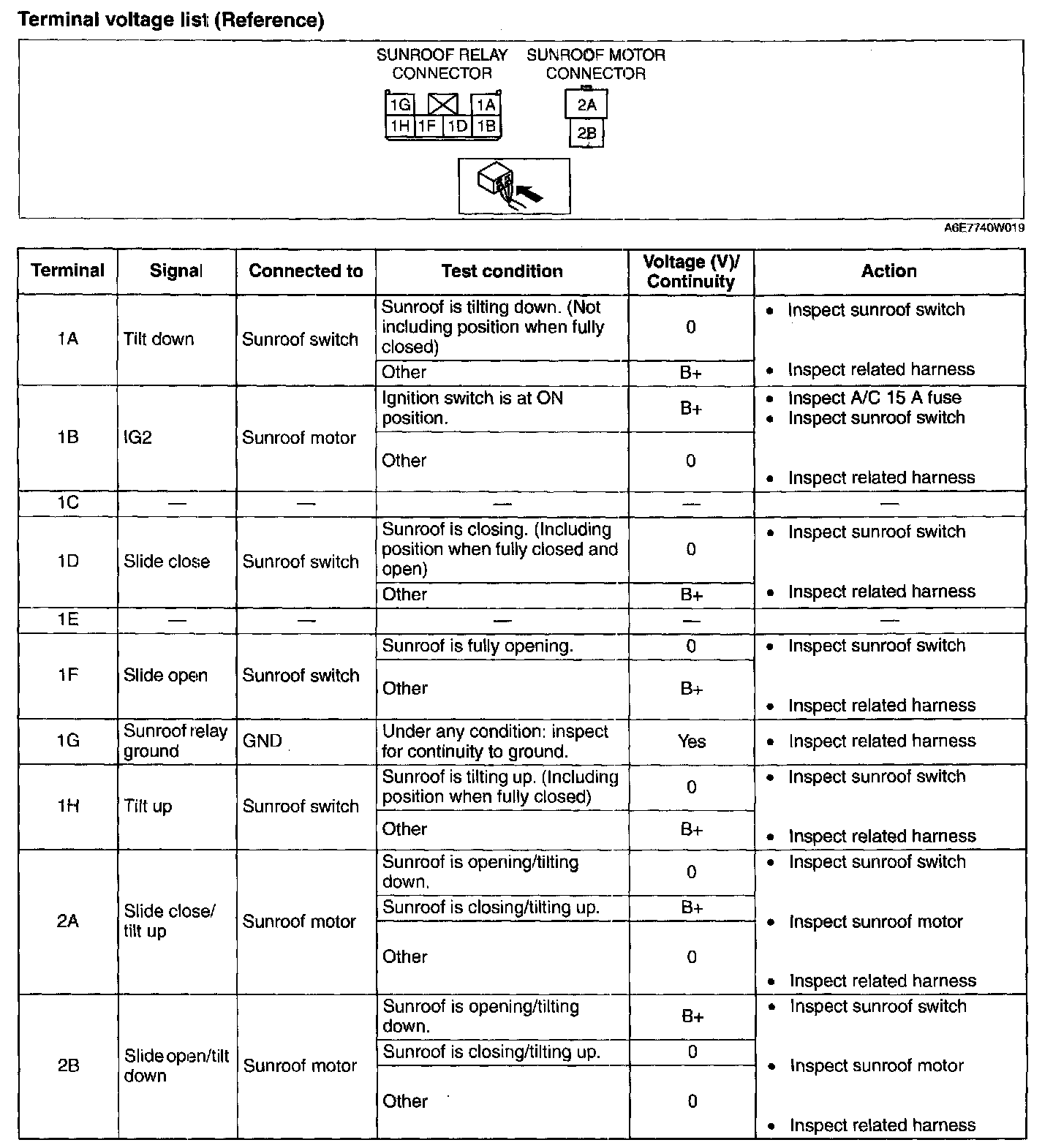

Terminal Voltage List (Reference) - Terminals (1A - 2B):

1. Measure the voltage at the sunroof relay terminals as indicated above.
2. Disconnect the sunroof relay connector before inspecting for continuity at terminal 1G
- If not as specified, inspect the parts listed under "Action" and the related wiring harnesses.
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the sunroof relay.
