MAZDASPEED6

REAR SEAT REMOVAL/INSTALLATION
1. Remove the partition board.
2. Release the remote catch.
1. Insert a flathead screwdriver into the hole A.
2. Move the flathead screwdriver towards the out side of the vehicle.

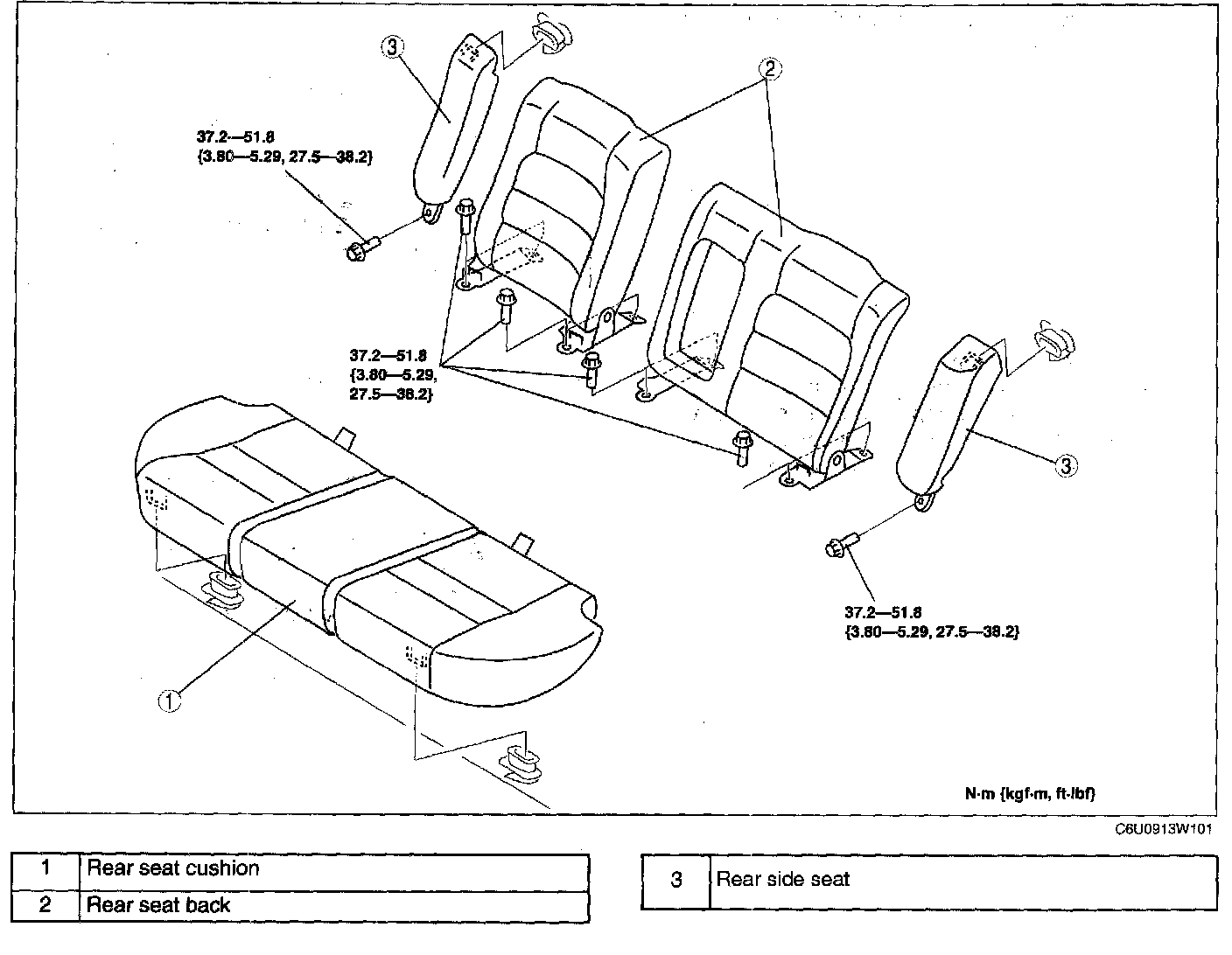

3. Remove in the order indicated in the table.




4. Install in the reverse order of removal.

Rear Seat Cushion Removal Note




1. Remove the rear seat cushion while pushing the lever in the direction of the arrow.

Rear Side Seat Removal Note




1. Partially peel back the trunk side trim.
2. Remove the rear side seat while pushing the lever in the direction of the arrow.
