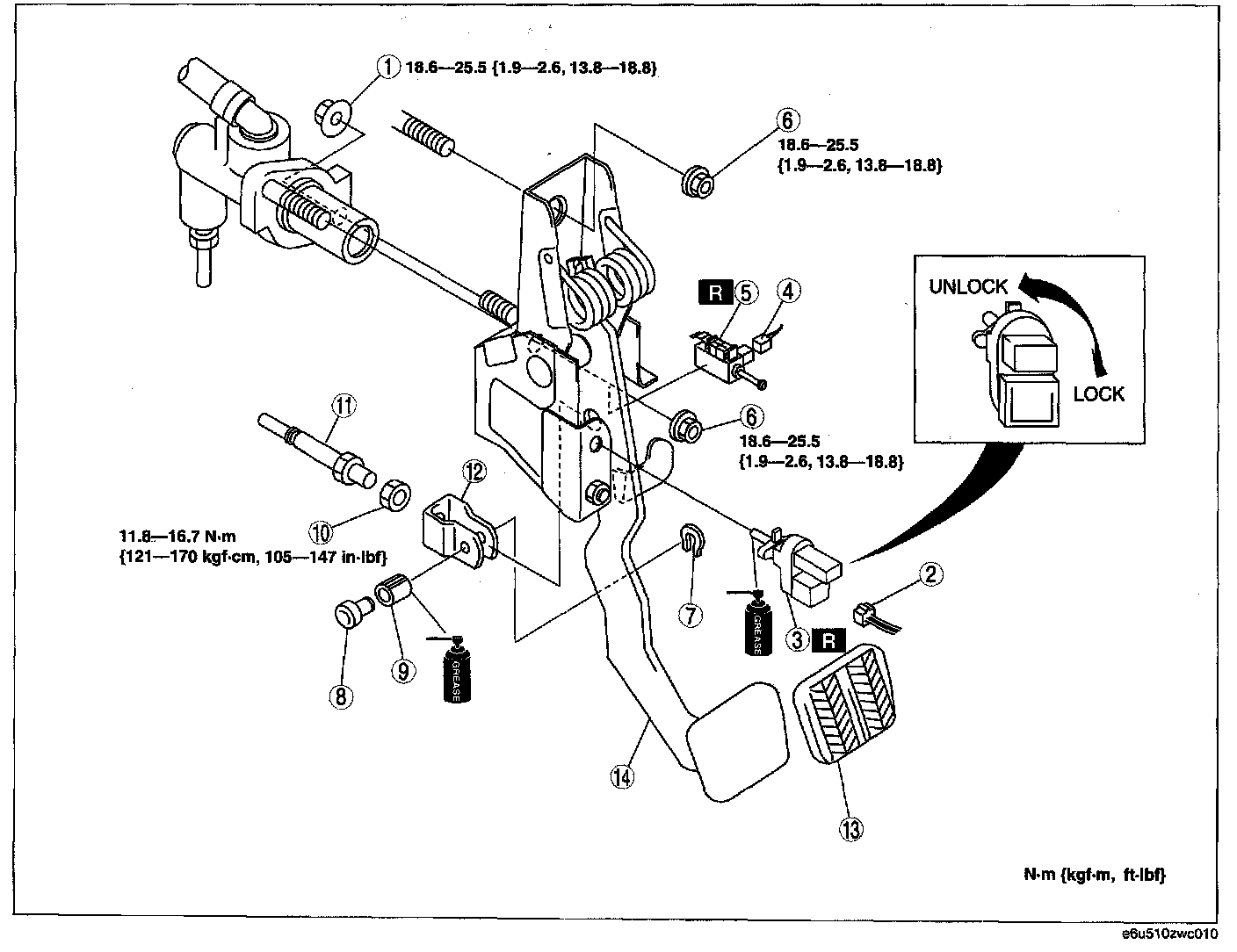

CLUTCH PEDAL REMOVAL/INSTALLATION [A26MX-R]
1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. After installation, inspect the clutch pedal.








Clutch Pedal Installation Note
1. After installation, adjust the pedal height and free play.

Starter Interlock Switch Installation Note
1. Insert the starter interlock switch into the hole in the pedal bracket in the direction indicated by A.
2. Slide the starter interlock switch press it in the direction indicated by B until locked.





3. Press the clutch pedal fully in the direction indicated by 0 and adjust the starter interlock switch terminal.
