DTC Index-Automatic Transmission

DTC INDEX-AUTOMATIC TRANSMISSION

Note:
^ Align the drive shaft with the marks made during removal to ensure correct balance.

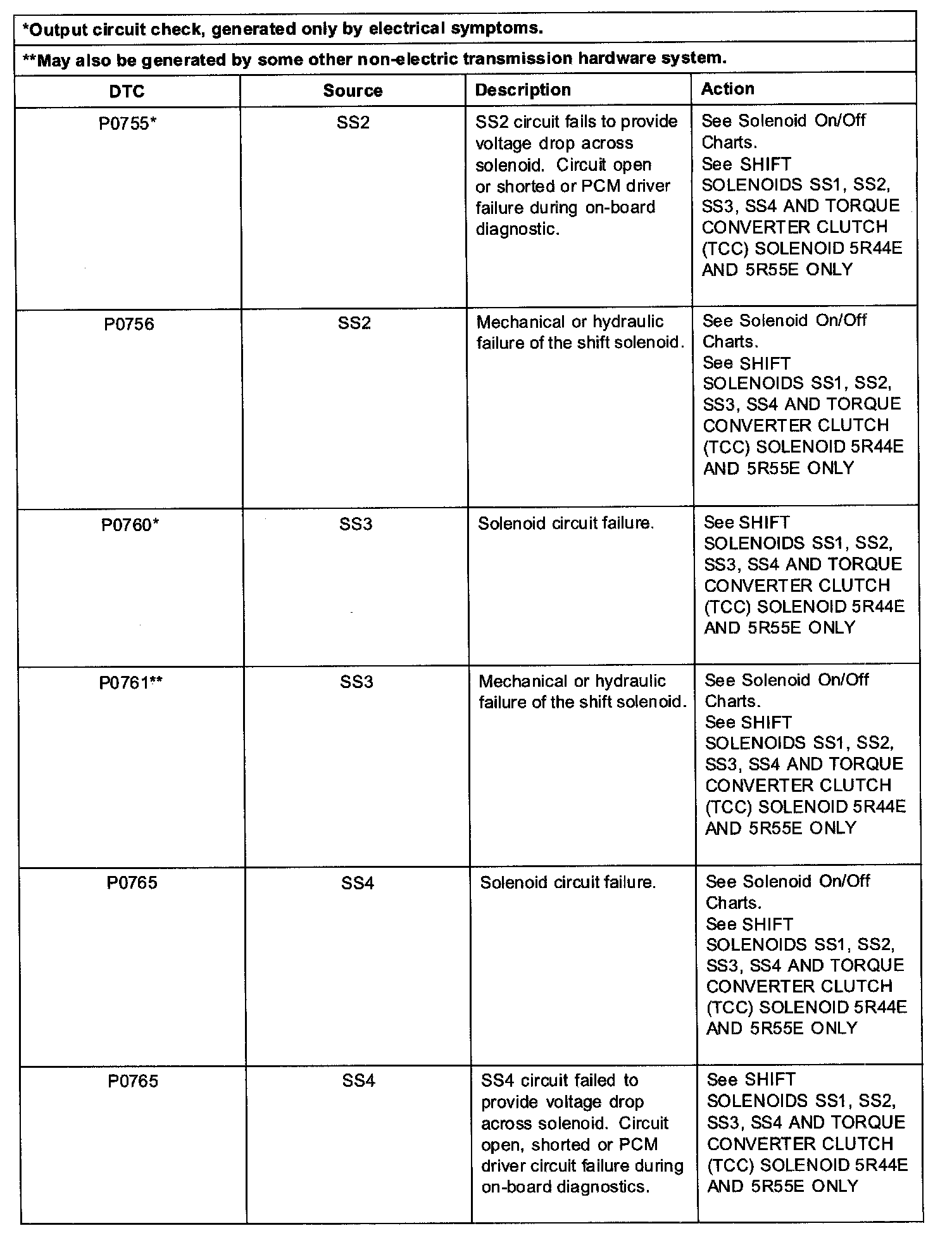

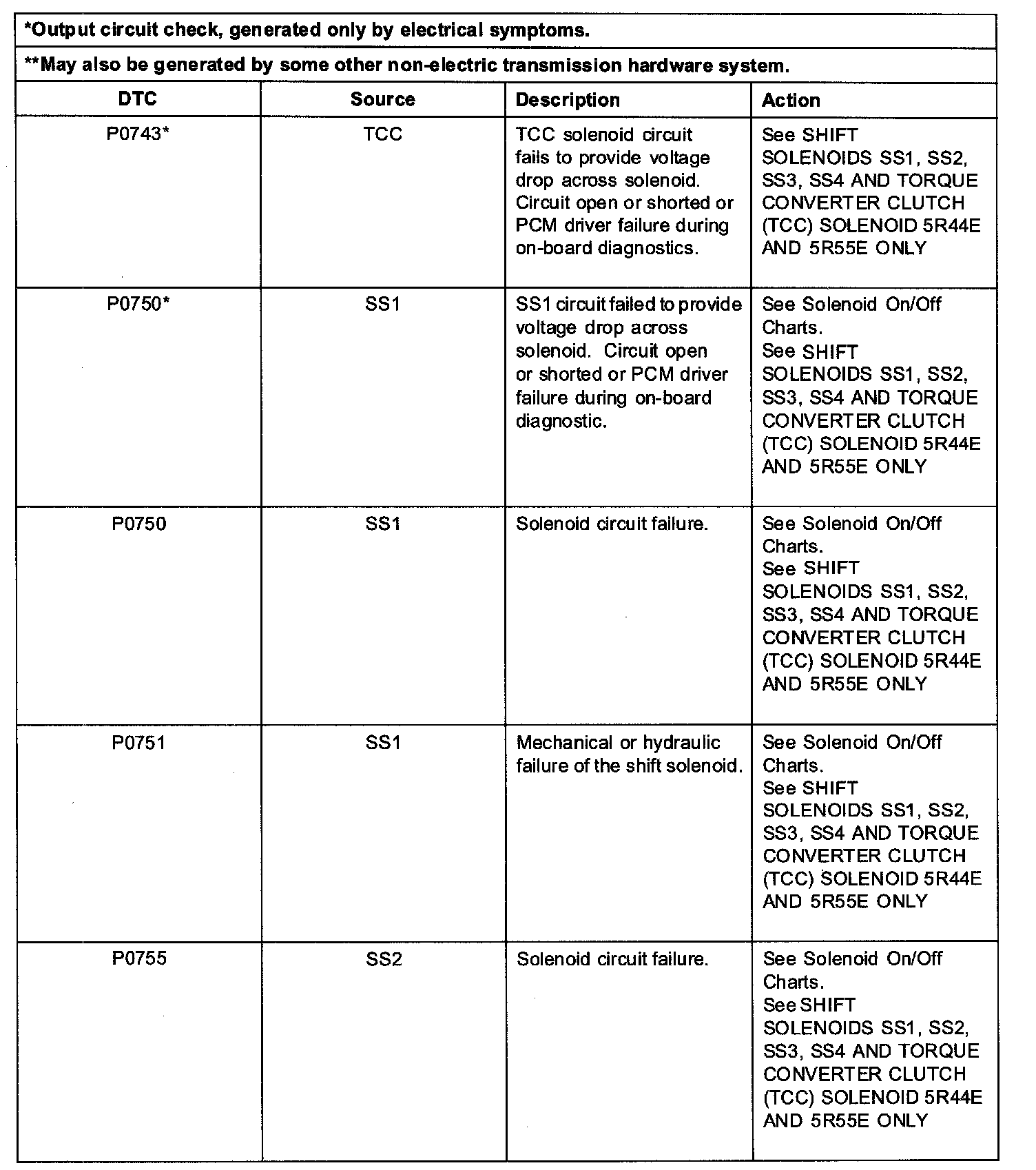

DTC INDEX-AUTOMATIC TRANSMISSION (Part 1):

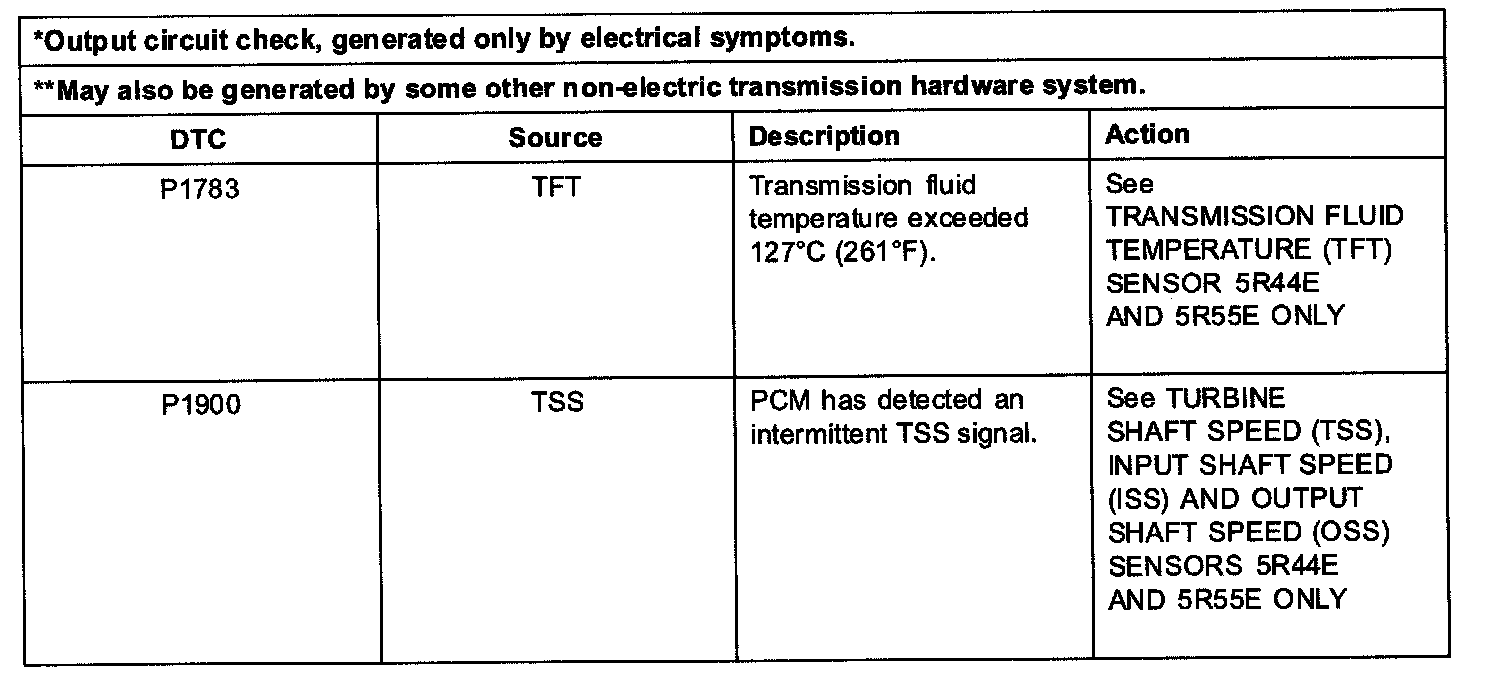

DTC INDEX-AUTOMATIC TRANSMISSION (Part 2):

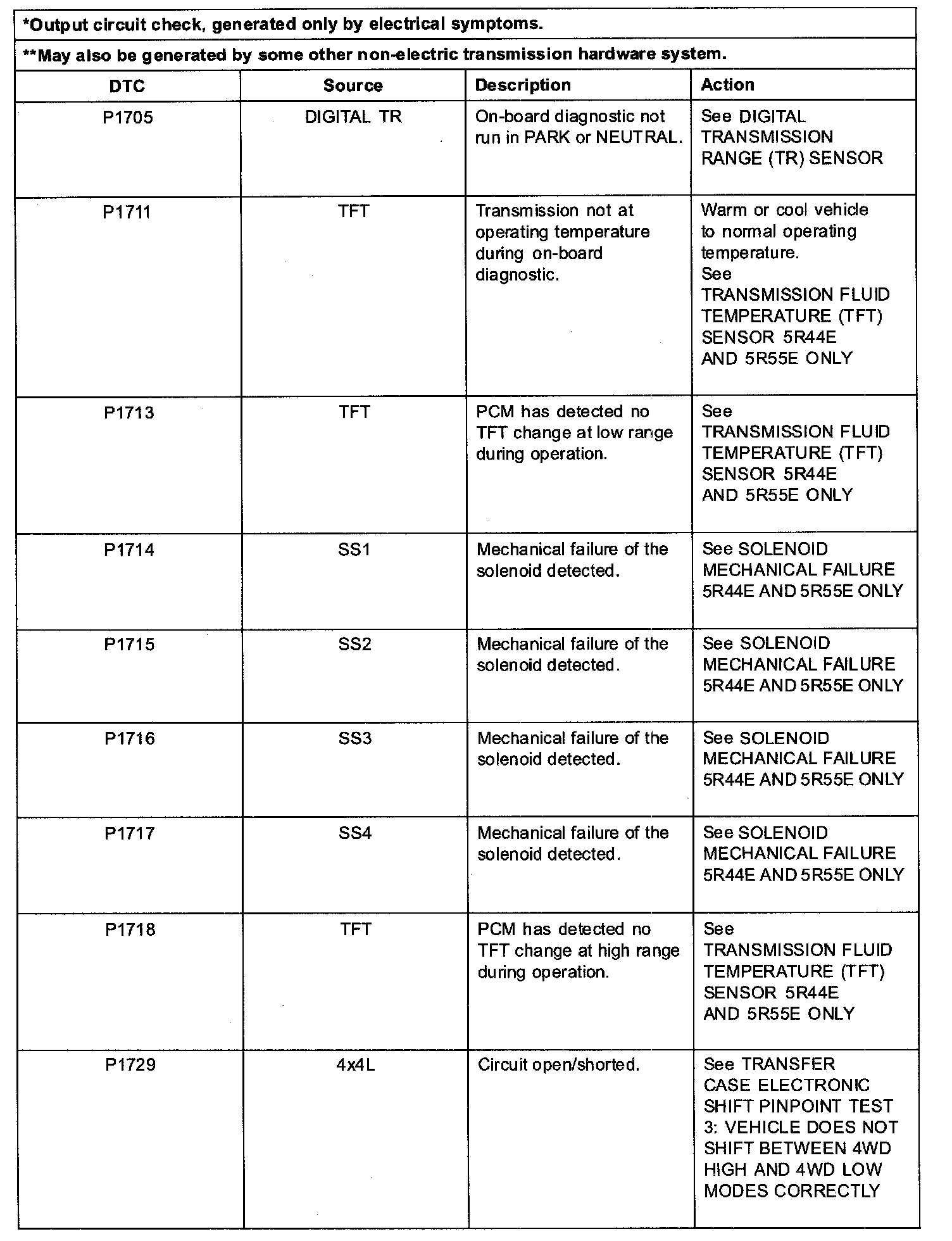

DTC INDEX-AUTOMATIC TRANSMISSION (Part 3):

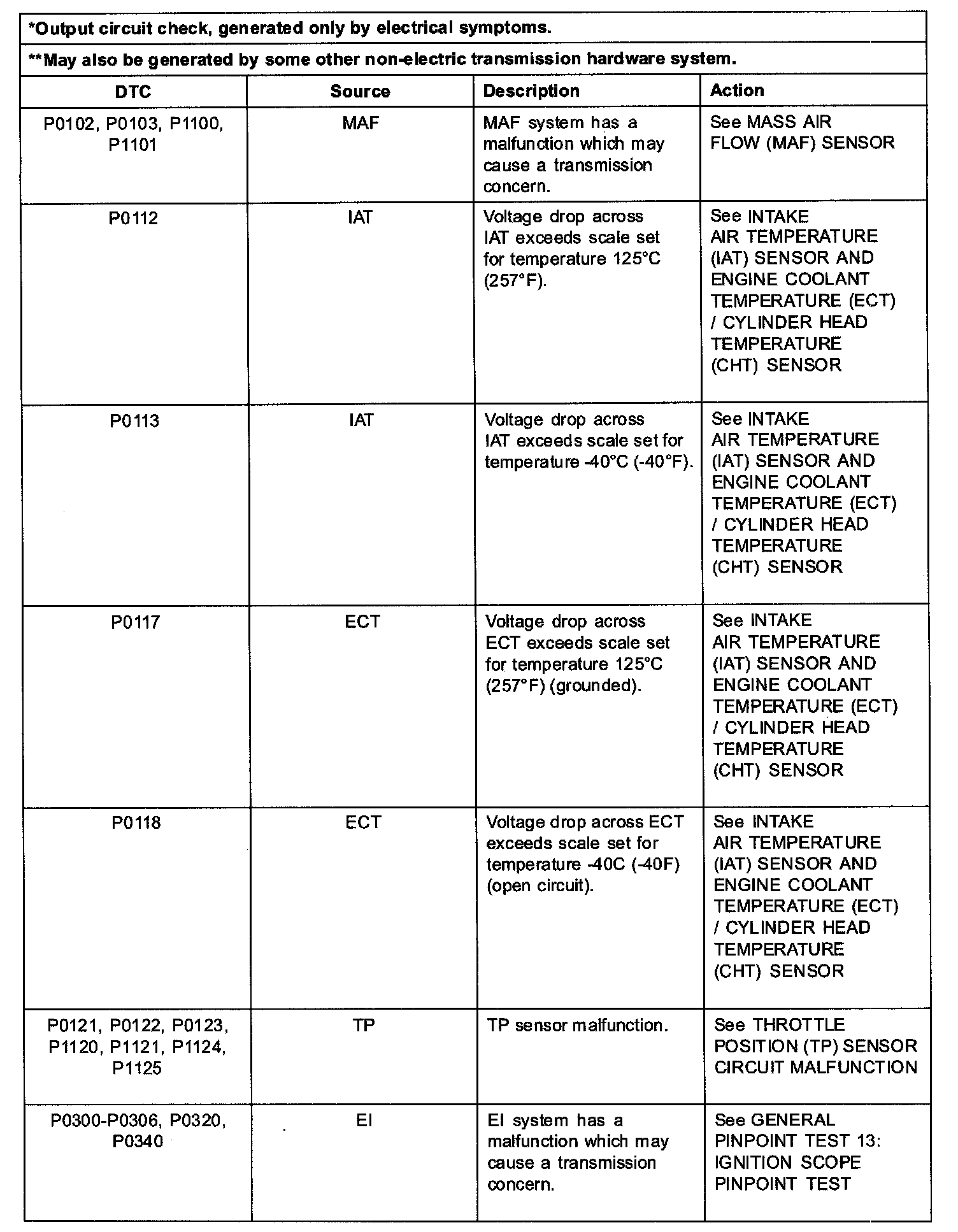

DTC INDEX-AUTOMATIC TRANSMISSION (Part 4):

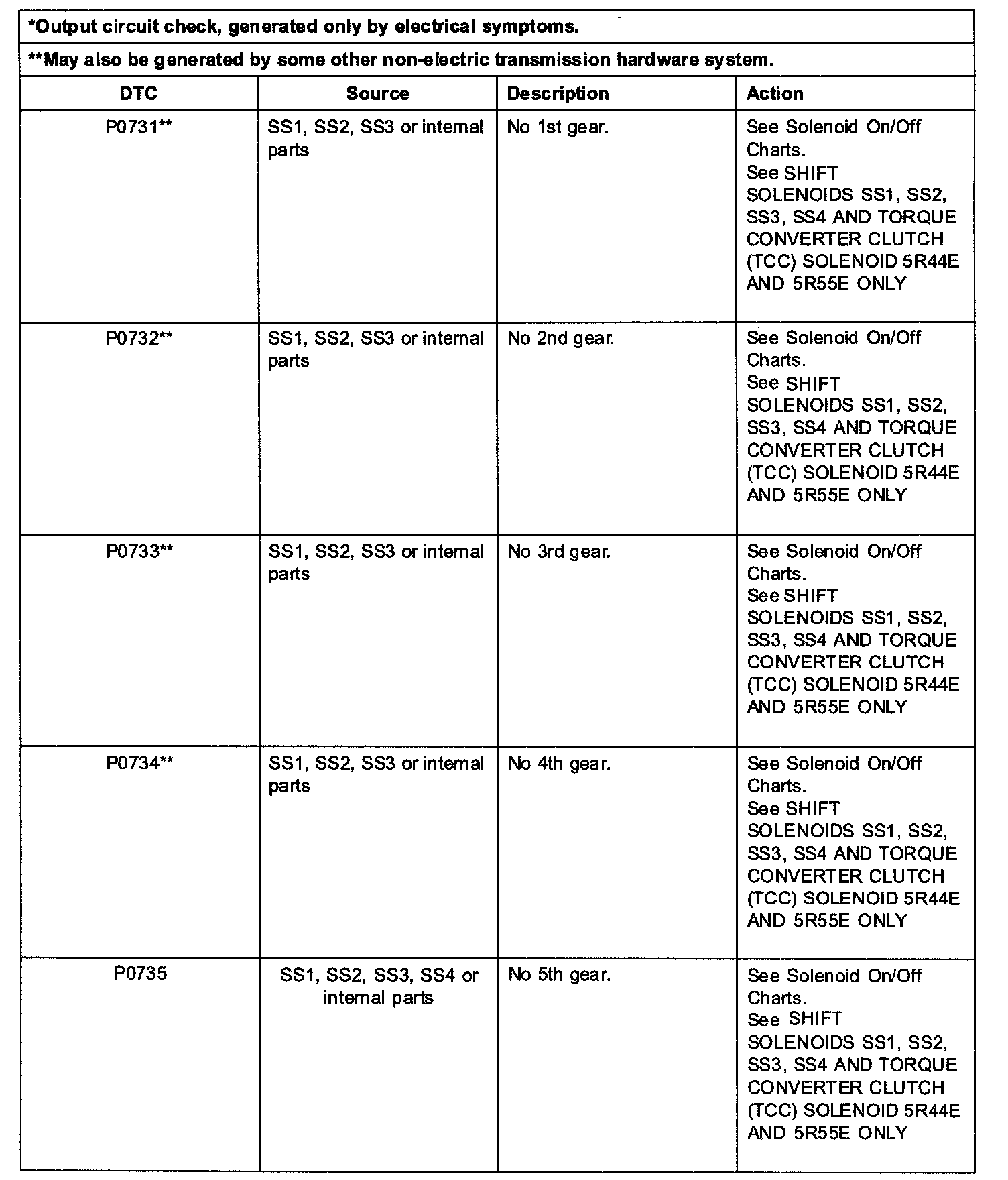

DTC INDEX-AUTOMATIC TRANSMISSION (Part 5):

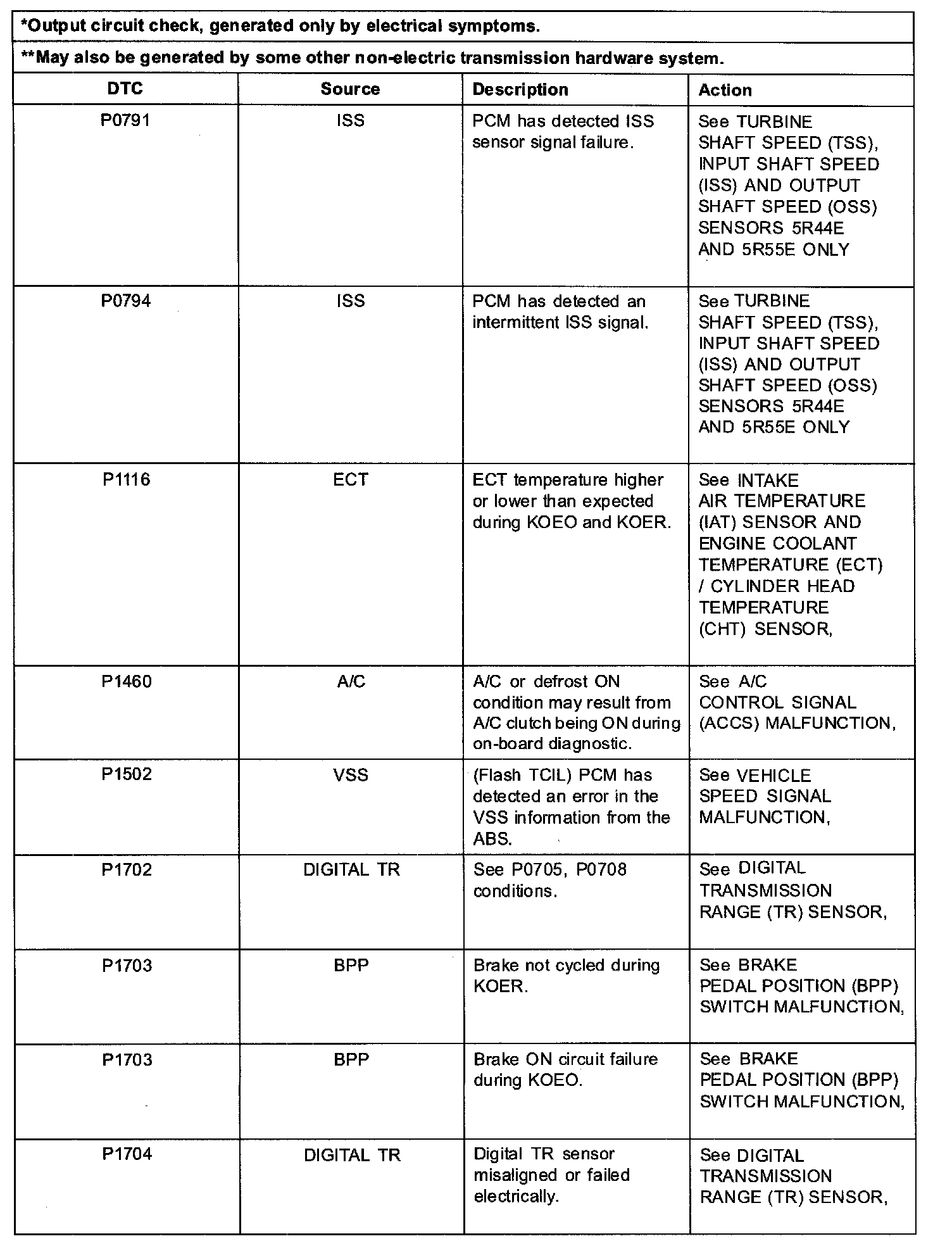

DTC INDEX-AUTOMATIC TRANSMISSION (Part 6):

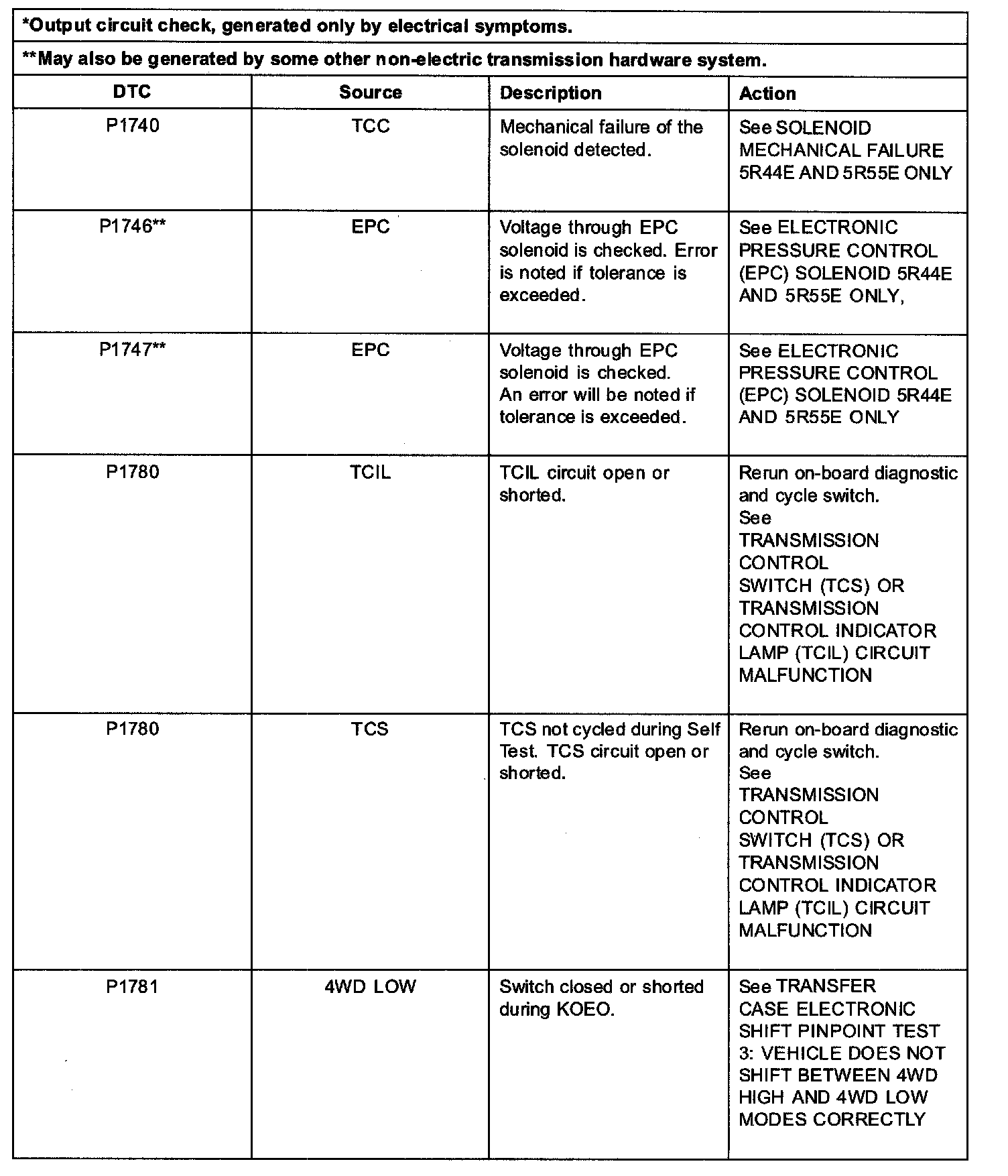

DTC INDEX-AUTOMATIC TRANSMISSION (Part 7):

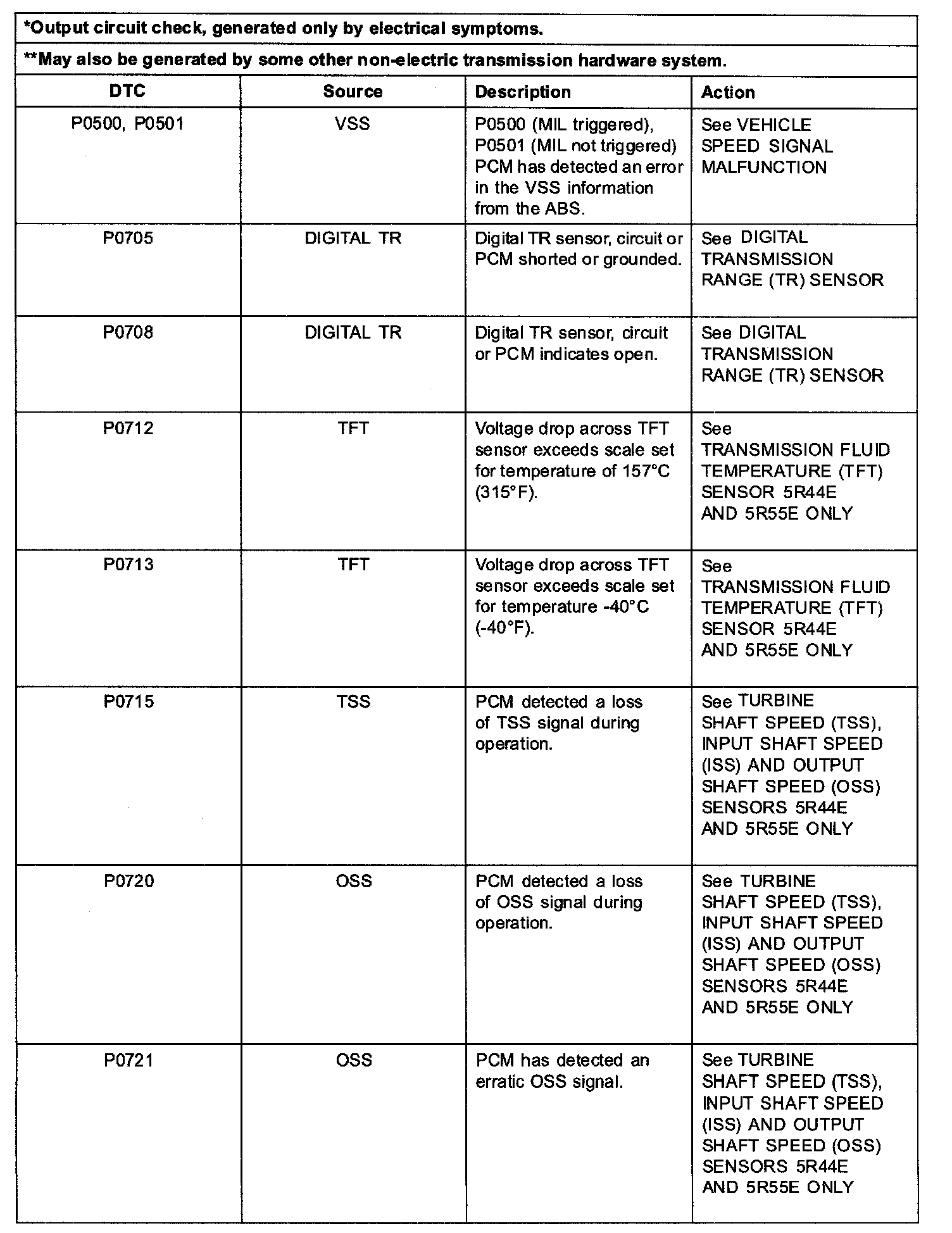

DTC INDEX-AUTOMATIC TRANSMISSION (Part 8):




DTC INDEX-AUTOMATIC TRANSMISSION (Part 9):
