Pinpoint Test 1: The Mirrors Are Inoperative

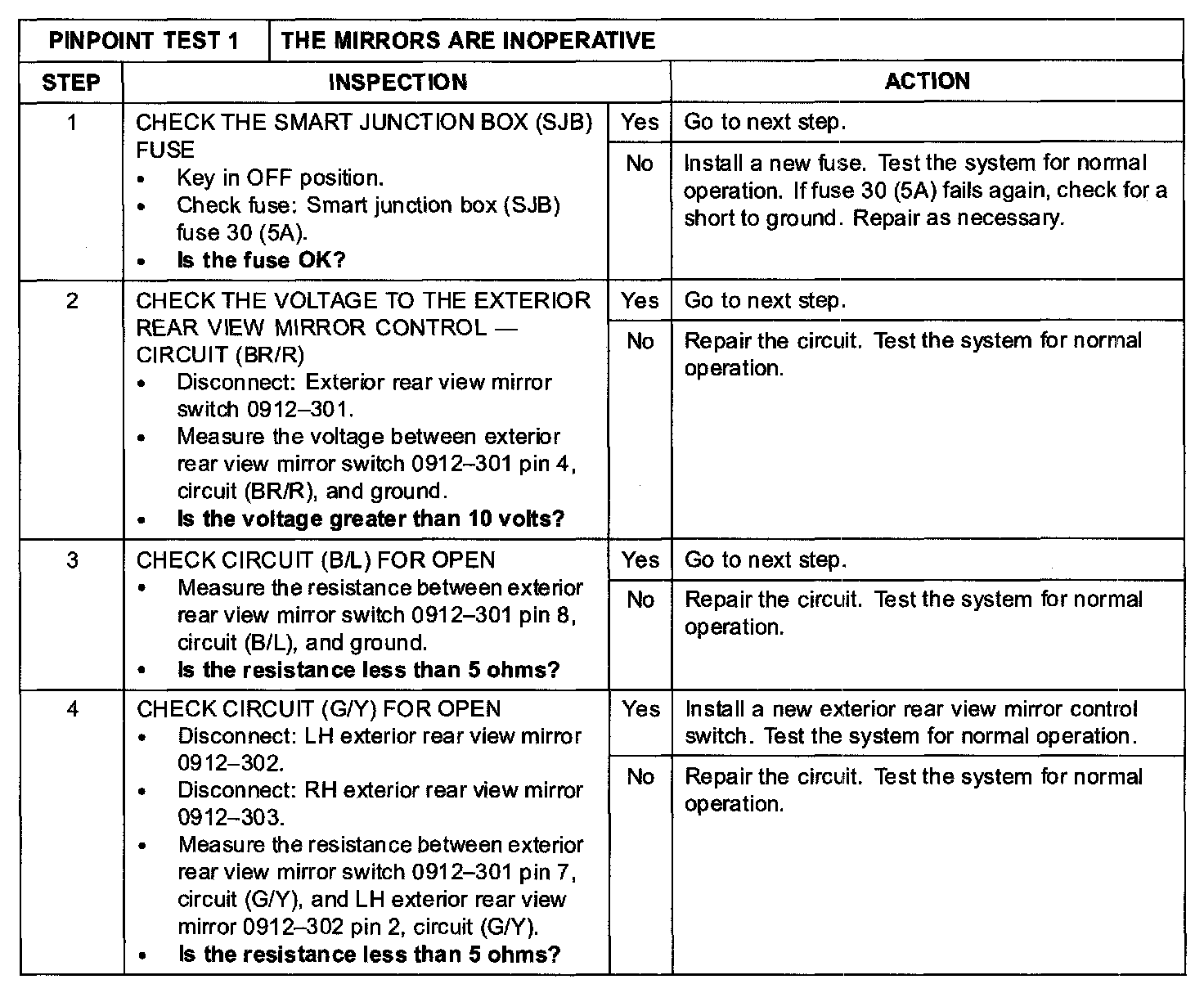

PINPOINT TEST 1: THE MIRRORS ARE INOPERATIVEStep 1-Step 4:
Normal OperationUnder normal operation, the exterior mirror control switch is supplied voltage through circuit (BR/R). Ground for the switch is provided through circuit (B).
Possible Causes -
Fuse
-
An open in circuit (B) or (BR/R)
-
Exterior mirror control switch
