Caliper Anchor Plate

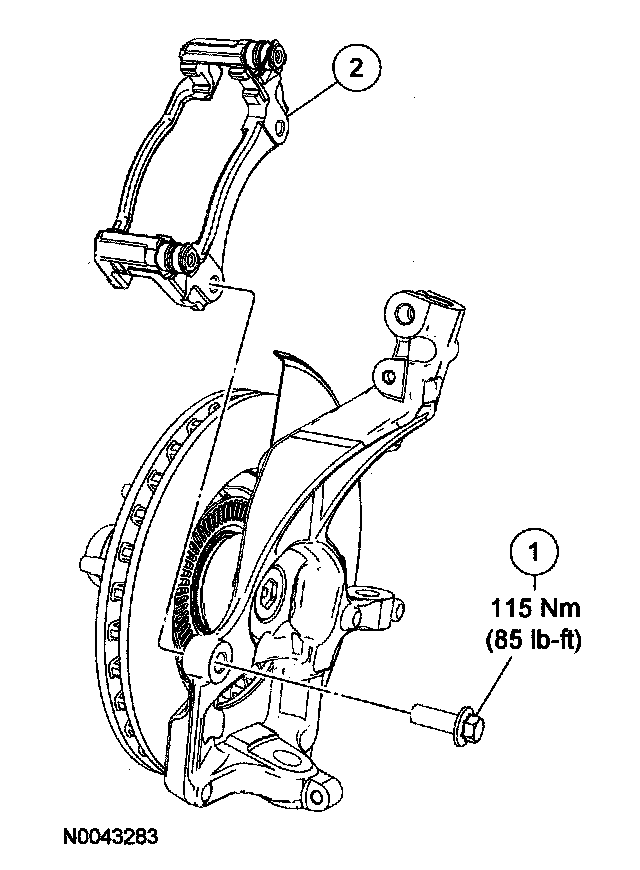

BRAKE CALIPER ANCHOR PLATE

Note:
^ 2WD shown, 4WD similar.

Part 1:




Part 2:





Removal and Installation
1. Remove the brake pads.
2. Remove the 2 brake caliper anchor plate bolts and the brake caliper anchor plate.
^ To install, tighten to 115 N-m (11.7 kgf-m, 85 ft-lbf).
3. To install, reverse the removal procedure.
