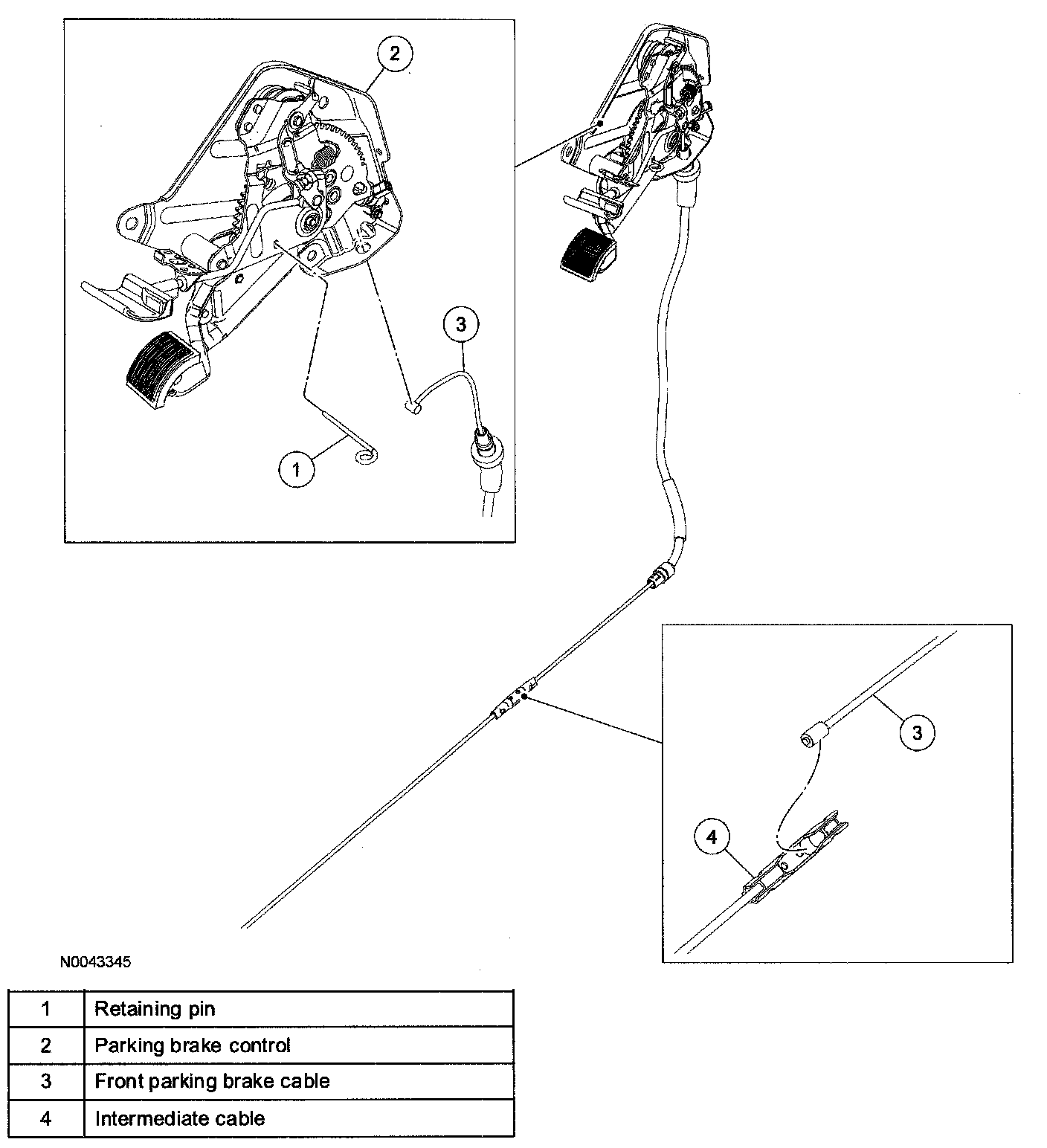

PARKING BRAKE CABLE - FRONT





Removal and Installation

Note:
^ Make sure the parking brake control is fully released.

1. Relieve the tension on the parking brake system.
^ Pull down on the parking brake intermediate cable.
^ Insert a 4 mm (5/32 inch) drill bit or equivalent retainer in the parking brake control.
2. Remove the LH fender splash shield.
3. Disconnect the front parking brake cable from the parking brake intermediate cable at the cable union.
4. Compress the clip and separate the front parking brake cable and conduit from the frame bracket.





5. Disconnect the front parking brake cable from the parking brake control.
6. Compress the dip and disconnect the front parking brake cable from the parking brake control.
^ Remove the front parking brake cable.





7. To install, reverse the removal procedure.
^ Make sure the front cable is routed through the loop on the spool.
