Thermostat: Service and Repair

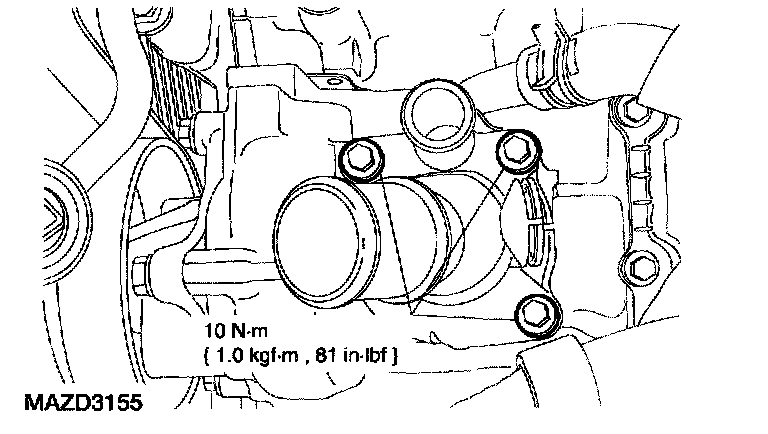

THERMOSTAT REMOVAL / INSTALLATION Note: ^
The thermostat and
thermostat housing are serviced as an assembly.
1.
Drain the
cooling system.
2.
Disconnect the coolant hose and the lower radiator hose.
3.
Remove the bolts and the
thermostat housing.
4.
To install, reverse the removal procedure.
