Pinpoint Test 2
PINPOINT TEST 2: THE LOW BEAMS ARE INOPERATIVE

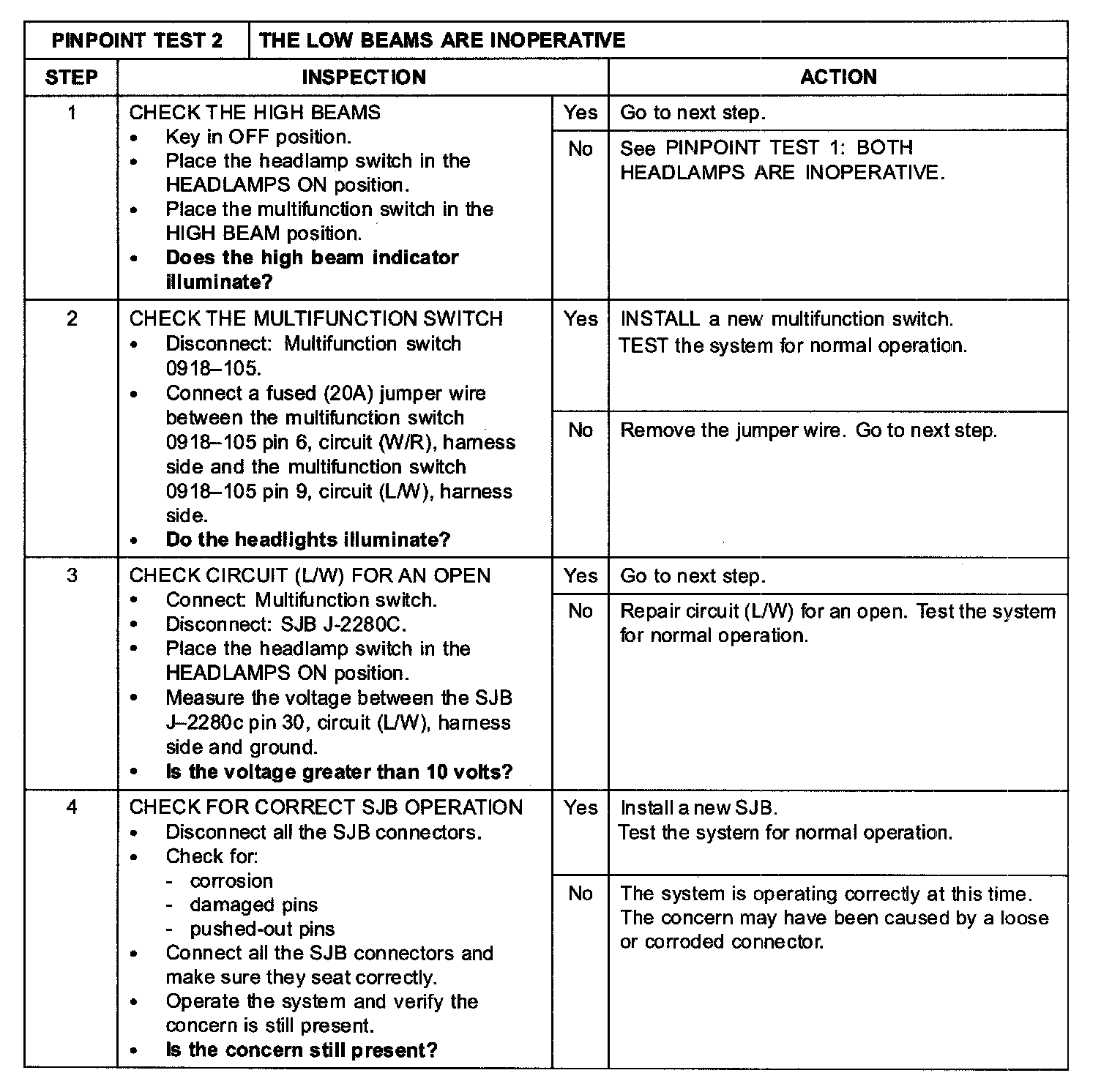

Step 1-Step 4:
Normal Operation
When the headlamp switch is placed in the HEADLAMPS ON position, the multifunction switch routes voltage to the smart junction box (SJB) through circuit (L/W). The SJB then routes voltage to the LH and RH low beams.
Possible Causes
- Circuit (L/W) open
- Multifunction switch
- SJB
CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
